Product Model: WS-C4506E-S6L-2800
Retail Price: US$2,472.00
Email Us To Get Special Price Today: [email protected]

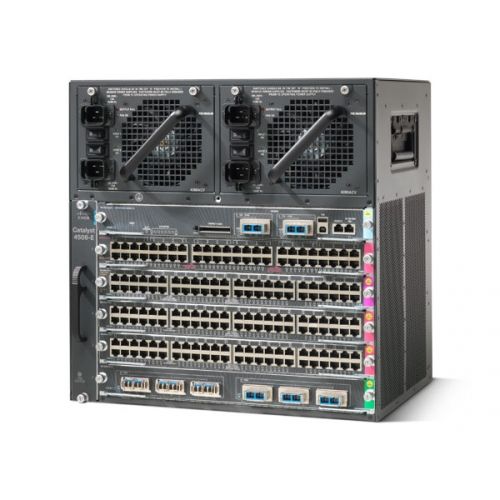

The Cisco WS-C4506E-S6L-2800 is a robust and flexible switching solution designed for high-performance network applications. It features a 4506-E chassis, two WS-X4648-RJ45V+E line cards, and a Sup6L-E supervisor engine, all powered by a 2800W power supply. Ideal for mid-size to large enterprise environments, this switch provides reliable high-speed connectivity and advanced management capabilities.
Quick Spec
| Chassis Model | 4506-E |
| Line Cards | Two WS-X4648-RJ45V+E |
| Supervisor Engine | Sup6L-E |
| Power Supply | 2800W |
| Ports | 96 Ethernet 10/100/1000 PoE+ ports |
Product Datasheet
- ● ● High-density PoE+ support
- ● ● Advanced security features
- ● ● Layer 2-4 switching capabilities
- ● ● Modular design for easy expansion
- ● ● Energy-efficient design with 2800W power supply
Product Applications
- ● ● Enterprise network core switching
- ● ● Campus network aggregation
- ● ● High-performance data center networking
Supported Options
| Network Module | WS-X4724-SFP-E |
| Power Supply | PWR-C45-1300ACV |
| Supervisor Engine | Sup7-E |
Compare to Similar Items
| Model | Difference |
| Cisco WS-C4507R-E | Supports redundant supervisor engines |
| Cisco WS-C4510R+E | Offers more slot capacity |
| Cisco WS-C3850-48P | Integrated wireless controller |
Before Purchasing
For further information about the Cisco WS-C4506E-S6L-2800 and its pricing, please contact us via Live Chat or email us at [email protected]. Check Cisco WS-C4506E-S6L-2800 price and WS-C4506E-S6L-2800 datasheet, buy Cisco WS-C4506E-S6L-2800 Switch with the best price and fast shipping. Free Live Chat support is available.
WS-C4506E-S6L-2800 Datasheet
WS-C4506E-S6L-2800 Specifications | |
| Brand | Cisco |
| Model | WS-C4506E-S6L-2800 |
| Chassis Type | 4506-E Chassis |
| Supervisor Engine | Sup6L-E |
| Power Supply | 2800W PS |
| Line Cards | Two WS-X4648-RJ45V+E |
| Number of Ports | 96 |
| Port Type | RJ45 |
| Port Speed | 10/100/1000 Mbps |
| VLANs Supported | 4096 |
| Forwarding Rate | 250 Mpps |
| Switching Capacity | 136 Gbps |
| Redundancy | Power Supply and Supervisor Engine Redundancy |
| Power Consumption | Maximum 2800W |
| Dimensions | 17.4 x 19.3 x 12.3 inches (HxDxW) |
| Rack Units | 6U |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -40??F to 167??F (-40??C to 75??C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| MTBF | 825,000 hours |
