Product Model: WS-C4500X-F-16SFP+
Retail Price: US$4,811.00
Email Us To Get Special Price Today: [email protected]
?WS-C4500X-F-16SFP+ is one of the Catalyst 4500-X series switches. The Catalyst 4500-X series switch is a fixed aggregation switch that delivers best-in-class scalability, simplified network virtualization, and integrated network services for space-constrained environments in campus networks.
Quick Specs

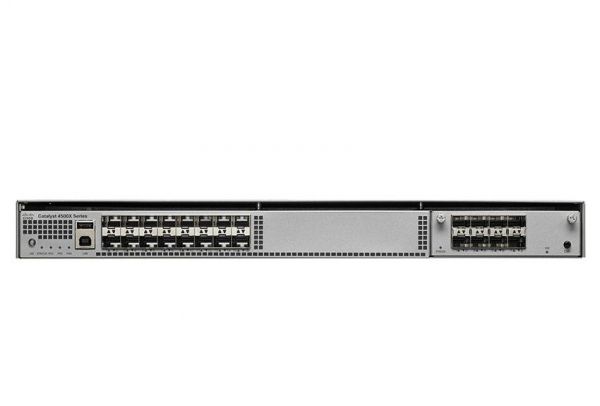

Figure 1 shows the appearance of WS-C4500X-F-16SFP+.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C4500X-F-16SFP+ |
|
Switch type |
Managed ? |
|
SFP+ module slots quantity |
16 ? |
|
Compatible memory cards? |
SD ? |
|
10G support |
Yes ? |
|
Networking standards |
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae ? |
|
Switching capacity |
800 ?Gbit/s |
|
Physical stacking (units) |
2 |
|
Ventilation fan(s) |
5 |
|
Internal memory? |
4096 ?MB |
|
Packet buffer memory |
32 ?MB |
|
Mean time between failures (MTBF)? |
209330 ?h |
|
Power consumption (typical) |
330 ?W |
|
ports |
16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers) |
|
airflow |
Back-to-front airflow (fan assemblies and the power supplies are color coded blue) |
|
Number of power supply units |
2? |
|
Chassis dimensions(H x W x D) |
1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) |
|
Chassis weight |
19 lb (8.62 kg) (without power supplies) |
Product Details
Figure 2 shows the front panel of WS-C4500X-F-16SFP+.
Note:
|
¢Ù |
LEDs Area |
|
¢Ú |
USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector |
|
¢Û |
16 ¡Á Ethernet ports |
|
¢Ü |
8-port uplink module slot (Purchased alone) |
Figure 3 shows the back panel of WS-C4500X-F-16SFP+.
Note:
|
¢Ù |
SECURE DIGITAL ?port |
¢Ú |
CONSOLE ?port |
|
¢Û |
10/100/1000 MGT port |
¢Ü |
Fan assemblies (5 assemblies) |
|
¢Ý |
Chassis ground pad |
¢Þ |
Power supply bay (AC-input power supply shown installed) |
|
¢ß |
Power supply bay (AC-input power supply shown installed) |
? |
The Accessories
Table 2 shows the recommended elements for the WS-C4500X-F-16SFP+.
|
Category |
Model |
Description |
|
AC Power Supplies |
C4KX-PWR-750AC-R/2 |
Catalyst 4500X 750W AC front to back cooling 2nd PWR supply |
|
C4KX-PWR-750AC-R |
Catalyst 4500X 750W AC front to back cooling power supply |
|
|
CARD |
C4KX-NM-8SFP+ |
Catalyst 4500X 8 Port 10G Network Module |
|
CONSOLE CABLES |
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
1G SFP |
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
GLC-BX-U |
1000BASE-BX SFP, 1310NM |
|
|
10G SFP |
SFP-10G-SR |
10GBASE-SR SFP Module |
|
SFP-H10GB-CU1M |
10GBASE-CU SFP+ Cable 1 Meter |
Compare to Similar Items
Table 3 shows the comparison of WS-C4500X-F-16SFP+ and WS-C4500X-24X-ES.
|
Product Code |
WS-C4500X-F-16SFP+ |
WS-C4500X-24X-ES |
|
Switching capacity |
800 ?Gbit/s |
800 ?Gbit/s |
|
Internal memory? |
4096 ?MB |
2000 ?MB |
|
Packet buffer memory |
32 ?MB |
32 ?MB |
|
Mean time between failures (MTBF)? |
209330 ?h |
209330 ?h |
|
Power consumption (typical) |
330 ?W |
750 ?W |
|
ports |
16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers) |
16 1G or 10G Ethernet ports (requires either SFP or SFP+ transceivers) |
|
airflow |
Back-to-front airflow (fan assemblies and the power supplies are color coded blue) |
Front-to-back airflow (fan assemblies and the power supplies are color coded burgundy) |
Before Purchasing
Do you have any?question about?the?WS-C4500X-F-16SFP+
Contact us – Email Live Chat or [email protected].
WS-C4500X-F-16SFP+ Datasheet
WS-C4500X-F-16SFP+ Specification |
|
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 4094 |
| Environmental Parameters | |
| Min Operating Temperature | 32 ¡ãF |
| Max Operating Temperature | 104 ¡ãF |
| Min Storage Temperature | -40 ¡ãF |
| Max Storage Temperature | 158 ¡ãF |
| Flash Memory | |
| Max Supported Size | 2 GB |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 4500-X |
| Brand | Cisco |
| Interface Provided | |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty | 1 |
| Connector Type | Type A |
| Comments | Management |
| Type | USB |
| Miscellaneous | |
| Compliant Standards | AS/NZS, AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1 Second Edition, RoHS, UL 60950-1, VCCI Class A ITE |
| MTBF | 209,330 hours |
| Networking | |
| Type | Switch |
| Data Link Protocol | Gigabit Ethernet |
| Remote Management Protocol | RMON 1, RMON 2 |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae |
| Ports Qty | 16 |
| Features | Access Control List (ACL) support, Back to front airflow, Layer 2 switching, Quality of Service (QoS), Redundant hot swappable fans, VLAN support |
| MAC Address Table Size | 55K entries |
| Subcategory | Network hubs and switches |
| Form Factor | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Subtype | 10 Gigabit Ethernet |
| Performance | |
| Type | Throughput |
| Value | 800 Gbps |
| Ports | |
| Qty | 16 |
| Type | 10 Gigabit SFP+ |
| Power Device | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 330 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| Hot-Plug | Hot-plug |
| Processor | |
| Clock Speed | 1.5 GHz |
| RAM | |
| Installed Size | 4 GB |
| Technology | DDR2 SDRAM |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Service Included | Advance parts replacement |
| Support Details Full Contract Period | Lifetime |
| Service & Support | |
| Type | Limited lifetime warranty |
| Service & Support Details | |
| Response Time | 10 days |
| Slot Provided | |
| Type | SD Memory Card |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Cisco IOS IP Base |
