Product Model: WS-C3850-48XS-S
Retail Price: US$16,978.00
Email Us To Get Special Price Today: [email protected]
WS-C3850-48XS-S switch provides 48 ports 10Gbps SFP+ connection with upgradeable IP base image and build in wireless controller provide fully convergence between wired and wireless on a single platform.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3850-48XS-S |
|
Enclosure Type |
1 RU |
|
Feature Set |
IP Base |
|
Ports |
48 x 10/100/1000 10G SFP+ Optical ports |
|
Maximum stacking number |
9 |
|
Stack bandwidth |
480 Gbps |
|
Switching Capacity |
1280 Gbps |
|
RAM |
8 GB |
|
Flash Memory |
8 GB? |
|
Dimensions |
4.45 X 44.5 x 51.1 cm |
Product Details

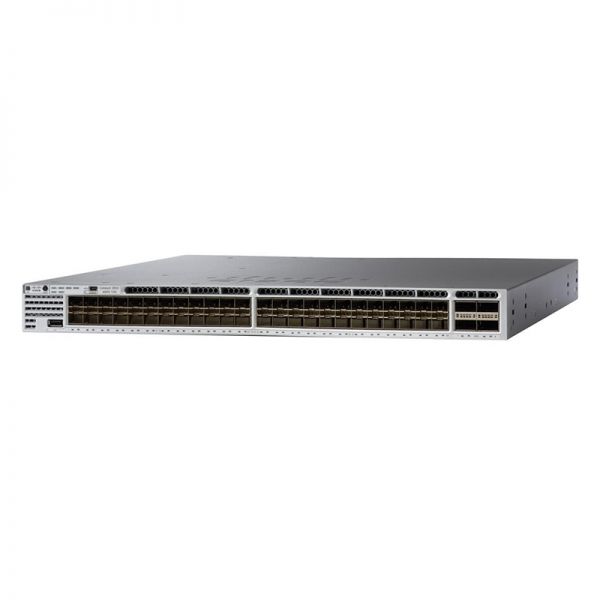

Figure 1 shows the appearance of the Cisco Catalyst WS-C3850-48XS-S.
Figure 2 shows the back panel of the WS-C3850-48XS-S switch.
Note£º
|
¢Ù |
Ground connector |
¢Ý |
StackWise port connector |
|
¢Ú |
CONSOLE (RJ-45 console port) |
¢Þ |
StackPower connector |
|
¢Û |
Fan module |
¢ß |
Power supply modules |
|
¢Ü |
MGMT port |
? |
Compare to Similar Items
Table 2 shows the comparison between WS-C3850-12XS-S and WS-C3850-48XS-S.
|
Models |
WS-C3850-12XS-S |
WS-C3850-48XS-S |
|
Feature Set |
IP Base |
IP Base |
|
Ports |
12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature |
48 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
|
Network SFP uplink module selection |
C3850-NM-4-10G |
None |
Switch to Something New
Why Upgrade to Catalyst 9300?|?See the Catalyst 9300 Series?
Before Purchasing
Do you have any?question about?the?WS-C3850-48XS-S
Contact us – Email Live Chat or [email protected].
WS-C3850-48XS-S Datasheet
WS-C3850-48XS-S Specification |
|
|
model info: |
WS-C3850-48XS-S |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x SFP+ ports |
|
Network management Interface |
¡ñ Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
1280 Gbps |
|
Maximum stacking number |
9 |
|
FNF entries |
96,000 flows |
|
Maximum VLANs IDs |
1,000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
8 GB |
|
Flash Memory |
8 GB |
|
Wireless |
|
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Power supply |
PWR-C3-750WAC-R |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Miscellaneous |
|
|
Dimension |
4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch) |
|
Weight |
7.45 kg |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
286,900 |
|
Compliant Standards |
¡ñ IEEE 802.1D Spanning Tree Protoco ¡ñ IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS IP Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Features |
¡ñRPS Support ¡ñ Jumbo Frames ¡ñ VLANS ¡ñVoice Vlan ¡ñVTPv2 ¡ñCDPv2 ¡ñLLDP ¡ñ 802.3ad LACP and PAgP ¡ñ PVST/PVST+ ¡ñ 802.1W/802.1S ¡ñPort Fast/Uplink Fast ¡ñDynamic Trunking Protocol (DTP) ¡ñ port CoS Trust and Override ¡ñ Trusted Boundary ¡ñ ACL Classification ¡ñingress Policing ¡ñ Auto QoS ¡ñ Per VLAN policies ¡ñ 802.1p queues ¡ñ Scheduling ¡ñ Priority Queuing ¡ñ Configure CoS Priority Queues ¡ñConfigure CoS Priority Queues ¡ñ Configure Queue Weights ¡ñ Configure Buffers and Thresholds ¡ñClass & Policy Maps ¡ñ Modify CoS and DSCP Mapping ¡ñ Weighted Tail Drop ¡ñ IGMPv1,v2,v3 and MLDv1, v2 ¡ñ DHCP server ¡ñ DSCP transparency ¡ñ HSRP, VRRP, BLGP ¡ñ RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ¡ñ VRF-lite ¡ñ PIM-SM/DM, PIM sparse-dense mode, SSM ¡ñ Flexible Netflow |
|
Advanced Network security |
¡ñ Port security ¡ñ DHCP snooping ¡ñDynamic ARP inspection (DAI) ¡ñ IP source guard ¡ñThe Unicast Reverse Path Forwarding (uRPF) |
|
Management |
¡ñBRIDGE-MIB ¡ñCISCO-AUTH-FRAMEWORK-MIB ¡ñCISCO-SNMP-TARGET-EXT-MIB ¡ñCISCO-STACKMAKER-MIB |
|
Technical Support and Services |
¡ñ Cisco SMARTnet Service ¡ñ Cisco Smart Foundation Service ¡ñ Cisco SP Base Service ¡ñ Cisco Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
|
Operating temperature up to 6000 ft (1800 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
23ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
23ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
23ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
23ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
23ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
-40ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 13,000 Feet (Up to 4000 Meters) |
|
Storage altitude |
Up to 15,000 Feet (Up to 4573 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
