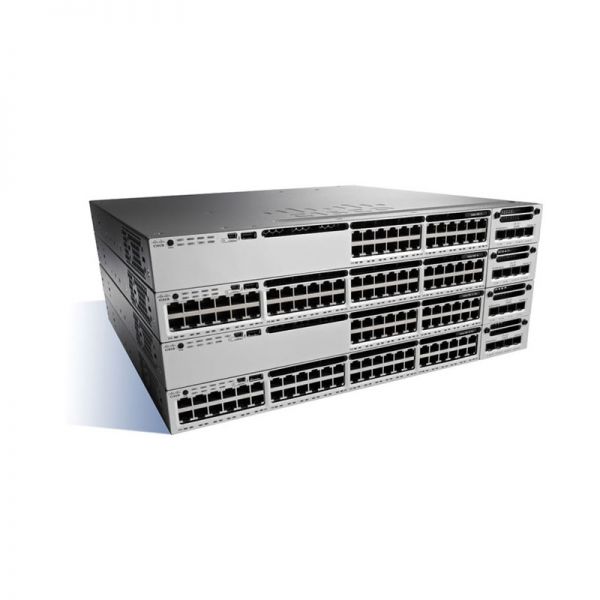

Product Model: WS-C3850-16XS-S
Retail Price: US$10,188.00
Email Us To Get Special Price Today: [email protected]
Cisco WS-C3850-16XS-S supports 12 SFP+ port stackable model, with C3850-NM-4-10G module and 350WAC power supply. 1 RU, and IP Base feature set. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data? Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise?-480 technology.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3850-16XS-S |
|
Enclosure Type |
1 RU |
|
Feature Set |
IP Base |
|
Ports |
12 SFP+ ports and 4 10G SFP ports (C3850-NM-4-10G) |
|
Network Module |
Shipped with C3850-NM-4-10G module |
|
RAM |
4GB |
|
Flash Memory |
4GB |
|
Switching capacity |
320 Gbps |
|
Dimension |
Width: 17.5 in Depth: 17.7 in Height: 1.8 in |
The Accessories
Table 2 shows some recommended accessories of this switch.
|
Models |
Description |
|
L-LIC-CTIOS-1A |
1 AP Adder License for the IOS based Wireless Controller (e-delivery) |
|
STACK-T1-50CM= |
Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
|
PWR-C1-350WAC/2 |
Cisco 3850 Series Secondary Power Supply PWR-C1-350WAC/2 350W AC Config 1 Secondary Power Supply |
|
PWR-C1-715WAC/2 |
Cisco 3850 Series Secondary Power Supply PWR-C1-715WAC/2 715W AC Config 1 Secondary Power Supply |
|
PWR-C1-1100WAC/2= |
Cisco 3850 Series Secondary Power Supply?PWR-C1-1100WAC/2?1100W AC Config 1 Secondary Power Supply |
Compare to Similar Item
Table 3 shows the comparison.
|
Product Code |
WS-C3850-16XS-S |
WS-C3850-12XS-S |
|
Enclosure Type |
1 RU |
1 RU |
|
Feature Set |
IP Base |
IP Base |
|
Ports |
12 SFP+ ports and 4 10G SFP ports (C3850-NM-4-10G) |
12 x 10/100/1000 10G SFP+ Optical ports |
|
Network Module |
Shipped with C3850-NM-4-10G module |
C3850-NM-4-10G (Needed to buy separately) |
|
RAM |
4GB |
4GB |
|
Flash Memory |
4GB |
4GB |
|
Switching capacity |
320 Gbps |
320 Gbps |
Comparison Download
? [PDF] Comparison: Cisco Switches vs. HPE/Aruba Switches
Before Purchasing
Do you have any question about the WS-C3850-16XS-S
Contact us now via?Live Chat?or?[email protected].
WS-C3850-16XS-S Datasheet
WS-C3850-16XS-S Specification |
|
|
Capacity |
64 Wireless LANs |
|
Dimensions & Weight |
Width: 17.5 in Depth: 17.7 in Height: 1.8 in Weight: 12.79 lbs |
|
Environmental Parameters |
Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 – 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F |
|
Switching capacity |
320 Gbps |
|
RAM |
4GB |
|
Flash Memory |
4GB |
|
Interface Provided |
Qty: 4 Type: Management (mini-USB) Connector Type: Type B Comments: Management |
|
Miscellaneous |
Compliant Standards: AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A
Authentication Method: Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF: 371,440 hours Height (Rack Units): 1U |
|
Software |
Cisco IOS IP Base |
|
Power Device |
Frequency Required: 50 – 60 Hz Power Provided: 350 Watt Installed Qty: 1 Max Supported Qty: 2 Nominal Voltage: AC 120/230 V Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Type: Internal power supply |
