Product Model: WS-C3560C-12PC-S
Retail Price: US$1,015.00
Email Us To Get Special Price Today: [email protected]
The Cisco Catalyst 3560-12PC-S is a fixed-configuration, enterprise-class switch, supporting 12 x 10/100 Fast Ethernet POE+ ports, and 2 dual suppose uplink interfaces.
Quick Specs

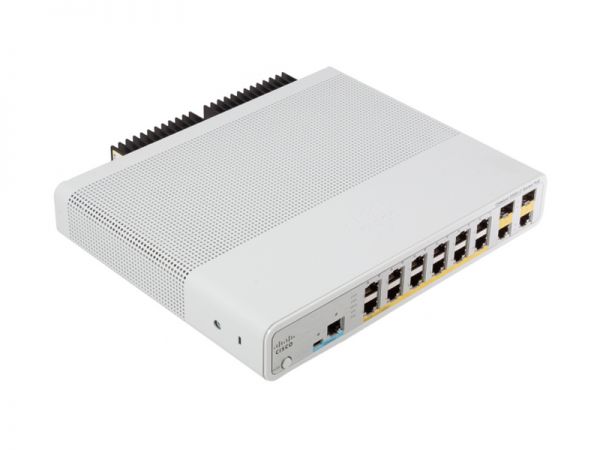

Figure 1 shows the appearance of WS-C3560C-12PC-S.
?
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3560C-12PC-S |
|
Feature Set |
IP Base |
|
Uplink Interfaces |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
12 x 10/100 Fast Ethernet |
|
PoE Output Ports |
12 PoE+ |
|
Available PoE Power |
124W |
|
Forwarding Bandwidth |
10 Gbps |
|
RAM |
128 MB |
|
Flash Memory |
64 MB |
|
Dimensions |
4.44 x 26.9 x 21.3 cm |
|
Package Weight |
4.65 Kg |
Product Details
Figure 2 shows the front panel of WS-C3560C-12PC-S.
?
Note:
|
¢Ù |
Mode button |
¢Ü |
10/100 PoE+ ports |
|
¢Ú |
USB mini-Type B (console) port |
¢Ý |
Uplink ports |
|
¢Û |
RJ-45 console port |
¢Þ |
LEDs |
¡¤The LEDs include SYST, STAT, DPLX, SPD and PoE LED.
¡¤Depending upon the available PoE budget, WS-C3560C-12PC-S can power other PoE-capable devices such as IP phones, access points, and so on.
Figure 3 shows the back panel of WS-C3560C-12PC-S.
?
Note:
|
¢Ù |
Security slot |
¢Û |
Heat sink fins |
|
¢Ú |
Reset button |
¢Ü |
AC power connector |
The Accessories
Table 2 shows some recommended cables and SFP modules.
|
Models |
Descriptions |
|
CAB-CONSOLE-USB |
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
CAB-CONSOLE-RJ45 |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
GLC-SX-MM |
GLC-SX-MM GE SFP, LC connector SX transceiver |
|
GLC-LH-SM |
1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers |
|
GLC-BX-D |
1000BASE-BX SFP, 1490NM |
|
GLC-BX-U |
1000BASE-BX SFP, 1310NM |
|
GLC-FE-100FX |
100BASE-FX SFP for FE port |
|
GLC-FE-100LX |
100BASE-LX SFP for FE port |
|
GLC-FE-100BX-D |
100BASE-BX10-D SFP |
|
GLC-FE-100BX-U |
100BASE-BX10-U SFP |
Compare to similar item
|
Models |
WS-C3560C-12PC-S |
WS-C3560C-8PC-S |
|
Uplinks |
2 x 1G copper or 2 x 1G SFP |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
12 x 10/100 Fast Ethernet |
8 x 10/100 Fast Ethernet |
|
Feature set |
IP Base |
IP Base |
|
Available PoE Power |
124W |
124W |
Before Purchasing
Do you have any question about the WS-C3560C-12PC-S
Contact us – Email Live Chat or [email protected].
WS-C3560C-12PC-S Datasheet
WS-C3560C-12PC-S Specification |
|
| General Information | |
|---|---|
|
Manufacturer: |
Cisco |
|
Product ID: |
WS-C3560-12PC-S |
|
Product Description: |
Catalyst 3560 Compact 12 10/100 PoE + 1 T/SFP; IP Base Image |
|
Product Type: |
Ethernet Switch |
| Interfaces/Ports | |
|
Total Number of Network Ports: |
13 |
|
Management Port: |
Yes |
|
Number of Network (RJ-45) Ports: |
13 |
| Media & Performance | |
|
Ethernet Technology: |
Gigabit Ethernet |
|
Fast Ethernet |
|
|
Network Technology: |
10/100/1000Base-T |
|
10/100Base-TX |
|
| I/O Expansions | |
|
Number of Total Expansion Slots: |
1 |
|
Expansion Slot Type: |
SFP |
|
Shared SFP Slot: |
Yes |
|
Number of SFP Slots: |
1 |
| Network & Communication | |
|
Layer Supported: |
3 |
| Management & Protocols | |
|
Manageable: |
Yes |
|
Management: |
|
| Memory | |
|
Standard Memory: |
128 MB |
|
Memory Technology: |
DRAM |
| Power Description | |
|
PoE Port: |
Yes |
|
Input Voltage: |
110 V AC |
|
220 V AC |
|
|
Power Source: |
Power Supply |
| Physical Characteristics | |
|
Form Factor: |
Rack-mountable |
|
Height: |
1.7″ |
|
Width: |
10.6″ |
|
Depth: |
9.1″ |
|
Weight (Approximate): |
5.00 lb |
| Miscellaneous | |
|
Additional Information: |
|
