Product Model: WS-C2960X-48TS-LL

Retail Price: US$2,363.00

Email Us To Get Special Price Today: [email protected]

Cisco Catalyst 2960X Series 48 ports LAN Lite switch is comprised of 48 x Ethernet 10/100/1000 ports and 2 x 1G SFP uplink interfaces. LAN Lite image functions basic needs for layer 2 switching and does not support stacking.

Quick Specs

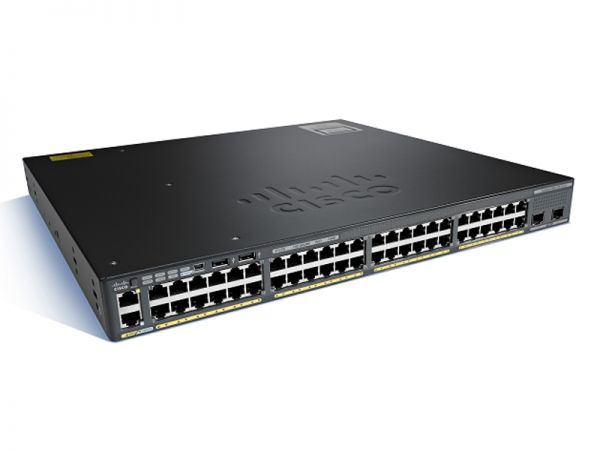

Figure 1 shows the appearance of WS-C2960X-48TS-LL.

Table 1, WS-C2960X-48TS-LL Specs.

Product Code	WS-C2960X-48TS-LL
Enclosure Type	Rack-mountable – 1U
Feature Set	LAN Lite
Uplink Interfaces	2 x 1G SFP
Ports	48 x Ethernet 10/100/1000 Gigabit ports
Forwarding Bandwidth	50Gbps
Switching Bandwidth	100Gbps
RAM	256MB
Flash Memory	64MB
Dimensions	44.5 cm x 27.9 cm x 4.5 cm
Package Weight	9.19 Kg

Product Details

Figure 2 shows the front panel of WS-C2960X-48TS-LL.

Note:

¢Ù Ethernet management port ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?¢Þ SFP module ports

¢Ú Mode button ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?¢ß 48 x 10/100/1000 ports

¢Û Switch LEDs ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ¢à CONSOLE LED

¢Ü USB mini-Type B (console) port ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ¢á MGMT LED

¢Ý USB Type A ports ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?¢â RJ-45 console port

¡¤The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

Figure 3 shows the back panel of WS-C2960X-48TS-LL.

Pay attention that it takes WS-C2960X-48TS-L for reference. These two switches’ back panels are similar but WS-C2960X-48TS-LL has not FlexStack-Plus module slot.

Note:

¢Ù FlexStack-Plus module slot and cover ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ¢Û RPS Connector

¢Ú Fan Exhaust ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?¢Ü AC power connector?

The Accessories

Table 2 shows some accessories of WS-C2960X-48TS-LL.

Models	Description
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Before Purchasing

Do you have any question about the WS-C2960X-48TS-LL

Specification

WS-C2960X-48TS-LL Datasheet

WS-C2960X-48TS-LL Specification
Enclosure type	Rack-mountable – 1U
Ports	48 x 10/100/1000 + 2 x 1G SFP Ports
Network management Interface	10/100 Mbps Ethernet (RJ-45)
Available PoE Power	None PoE
Forwarding bandwidth(Gbps)	50Gbps
Maximum stacking number	None
Stack Bandwidth	None
Forwarding Performance	104.2Mpps
Switching bandwidth	100Gbps
Maximum active VLANs	64
MAC Address Table Size	16K (default)
CPU	APM86392 600MHz dual core
RAM	256 MB
Flash Memory	64 MB
Status Indicators	Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Stacking cable	None
Power Redundancy	Option (PWR-RPS2300)
Voltage range (Auto)	110V-240V
Power Consumption Operational	0.46KVA
Miscellaneous
Width	17.5 Inches (44.5 cm)
Depth	11 Inches (27.9 cm)
Height	1.75 Inches (4.5 cm)
Weight	8.9 lb (4.0 Kg)
Package Weight	20.26 lb (9.19 Kg)
Rack Mounting Kit	optional
MTBF in hours	476,560
Compliant Standards	¡ñ IEEE 802.1D Spanning Tree Protocol ¡ñ IEEE 802.1p CoS Prioritization ¡ñ IEEE 802.1Q VLAN ¡ñ IEEE 802.1s ¡ñ IEEE 802.1w ¡ñ IEEE 802.1X ¡ñ IEEE 802.1ab (LLDP) ¡ñ IEEE 802.3ad ¡ñ IEEE 802.3af and IEEE 802.3at ¡ñ IEEE 802.3ah (100BASE-X single/multimode fiber only) ¡ñ IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ¡ñ IEEE 802.3 10BASE-T ¡ñ IEEE 802.3u 100BASE-TX ¡ñ IEEE 802.3ab 1000BASE-T ¡ñ IEEE 802.3z 1000BASE-X ¡ñ RMON I and II standards ¡ñ SNMP v1, v2c, and v3 ¡ñ IEEE 802.3az ¡ñ IEEE 802.1ax
System software / license
System software	IOS LAN Lite
license	NERGY-MGT-100-K9, EW-DO-100-DE
features	¡ñJumbo Frames ¡ñVLANS ¡ñVoice Vlan ¡ñVTPv2 ¡ñCDPv2 ¡ñLLDP ¡ñ802.3ad LACP ¡ñPVST/PVST+ ¡ñ802.1W/802.1S ¡ñPort Fast/Uplink Fast ¡ñport CoS Trust and Override ¡ñScheduling ¡ñPriority Queuing ¡ñConfigure CoS Priority Queues ¡ñWeighted Tail Drop ¡ñDSCP transparency
Network security	¡ñSSH, SSL and SCP ¡ñRADIUS and TACACS+ ¡ñSNMPv3 crypto ¡ñ802.1x ¡ñ802.1x Accounting / MIB ¡ñ802.1x w/ port security ¡ñ802.1x w/Voice VLAN ¡ñ802.1x Guest VLAN ¡ñ802.1x VLAN assignment ¡ñ802.1x MAC-Auth Bypass ¡ñBPDU/Root Guard ¡ñPort Security ¡ñPrivate VALN Edge ¡ñStorm Control ¡ñBlock unknown unicast and multicast ¡ñIGMP Snooping ¡ñIGMP Filter/Throttle
Management and Troubleshooting	¡ñAuto-MDOX ¡ñTDR ¡ñUDLD ¡ñIP SLA Responder ¡ñlayer 2 / IP Traceroute ¡ñSPAN ¡ñRSPAN ¡ñExpress Setup ¡ñDevice Manager ¡ñCisco Network Assistant ¡ñSmartports + Advisor ¡ñTroubleshooting Advisor ¡ñDrag-and-drop Cisco IOS Upgrade ¡ñIP Address DHCP ¡ñAutoinstall with saved configuration ¡ñConfiguration Replace ¡ñDHCP Auto Image Upgrade ¡ñDHCP Port Based Allocation ¡ñError Disable MIB
Environmental Ranges
Operating temperature up to 5000 ft (1500 m)	23ºF to 113ºF (-5ºC to 45ºC)
Operating temperature up to 10,000 ft (3000 m)	23ºF to 104ºF (-5ºC to 40ºC)
Short-term exception at sea level*	23ºF to 131ºF (-5ºC to 55ºC)
Short-term exception up to 5000 feet (1500 m)*	23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m)*	23ºF to 113ºF (-5ºC to 45ºC)
Short-term exception up to 13,000 feet (4000 m)*	23º to 104ºF (-5ºC to 40ºC)
Storage temperature up to 15,000 feet (4573 m)	-13º to 158ºF (-25º to 70ºC)
Operating altitude	Up to 10,000 Feet (Up to 3000 Meters)
Storage altitude	Up to 13,000 (Up to 4000 Meters)
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
