Product Model: WS-C2960X-48TS-L
Retail Price: US$2,316.00
Email Us To Get Special Price Today: [email protected]
Cisco Catalyst 2960X-48TS-L LAN Base stackable Layer 2 switch provides enterprise-class access for campus and branch applications.
Quick Specs

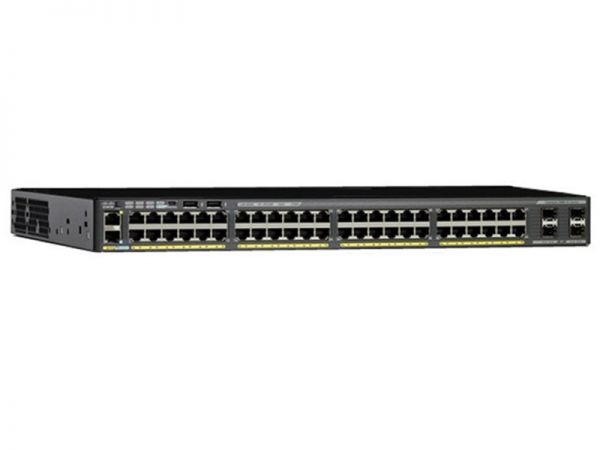

Figure 1 shows the front view of the Cisco 2960X-48TS-L switch.
Table 1. Cisco WS-C2960X-48TS-L Specs.
|
Product Code |
WS-C2960X-48TS-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
48 x Ethernet 10/100/1000 Gigabit ports |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Forwarding Bandwidth |
108Gbps |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512MB |
|
Flash Memory |
128MB |
|
Dimensions |
44.5 cm x 27.9 cm x 4.5 cm |
|
Package Weight |
9.19 Kg |
Product Details
Figure 2 shows the front panel of the Cisco 2960X-48TS-L switch.
Note:
¢Ù Ethernet management port
¢Ú Mode button
¢Û Switch LEDs
¢Ü USB mini-Type B (console) port
¢Ý USB Type A ports
¢Þ SFP module ports
¢ß 48 x 10/100/1000 ports
¢à CONSOLE LED
¢á MGMT LED
¢â RJ-45 console port
¡¤The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.
Figure 3 shows the back panel of the Cisco 2960X-48TS-L switch.
Note:
¢Ù FlexStack-Plus module slot and cover
¢Ú Fan Exhaust
¢Û RPS Connector
¢Ü AC power connector
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
The Accessories
Table 2 shows some accessories of the WS-C2960X-48TS-L.
|
Models |
Description |
|
C2960X-STACK |
Catalyst 2960-X FlexStack Plus Stacking Module |
|
CAB-STK-E-0.5M |
Cisco FlexStack Stacking Cables |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
Before Purchasing
Do you have any questions about the Cisco Catalyst C2960X-48TS-L switch?
Contact us – Email Live Chat or [email protected].
WS-C2960X-48TS-L Datasheet
WS-C2960X-48TS-L Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
|
Available PoE Power |
370W |
|
Forwarding bandwidth(Gbps) |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack Bandwidth |
80 G |
|
Forwarding Performance |
107.1Mpps |
|
Switching bandwidth |
216Gbps |
|
Maximum active VLANs |
1023 |
|
MAC Address Table Size |
16K (default) |
|
CPU |
APM86392 600MHz dual core |
|
RAM |
256 MB |
|
Flash Memory |
64 MB |
|
Status Indicators |
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Stacking cable |
Optional |
|
Power Redundancy |
Option (PWR-RPS2300) |
|
Voltage range (Auto) |
110V-240V |
|
Power Consumption Operational |
0.49KVA |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
11.0 Inches (27.9 cm) |
|
Height |
1.75 Inches (4.5 cm) |
|
Weight |
9.4 lb (4.2 Kg) |
|
Package Weight |
23.48 lb (10.65 Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
442,690 |
|
Compliant Standards |
¡ñ IEEE 802.1D Spanning Tree Protocol ¡ñ IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS LAN BASE |
|
license |
NERGY-MGT-100-K9, EW-DO-100-DE |
|
features |
¡ñJumbo Frames ¡ñVLANS ¡ñVoice Vlan ¡ñVTPv2 ¡ñCDPv2 ¡ñLLDP ¡ñ802.3ad LACP ¡ñPVST/PVST+ ¡ñ802.1W/802.1S ¡ñPort Fast/Uplink Fast ¡ñport CoS Trust and Override ¡ñScheduling ¡ñPriority Queuing ¡ñConfigure CoS Priority Queues ¡ñWeighted Tail Drop ¡ñDSCP transparency |
|
Network security |
¡ñSSH, SSL and SCP ¡ñRADIUS and TACACS+ ¡ñSNMPv3 crypto ¡ñ802.1x ¡ñ802.1x Accounting / MIB ¡ñ802.1x w/ port security ¡ñ802.1x w/Voice VLAN ¡ñ802.1x Guest VLAN ¡ñ802.1x VLAN assignment ¡ñ802.1x MAC-Auth Bypass ¡ñBPDU/Root Guard ¡ñPort Security ¡ñPrivate VALN Edge ¡ñStorm Control ¡ñBlock unknown unicast and multicast ¡ñIGMP Snooping ¡ñIGMP Filter/Throttle |
|
Management and Troubleshooting |
¡ñAuto-MDOX ¡ñTDR ¡ñUDLD ¡ñIP SLA Responder ¡ñlayer 2 / IP Traceroute ¡ñSPAN ¡ñRSPAN ¡ñExpress Setup ¡ñDevice Manager ¡ñCisco Network Assistant ¡ñSmartports + Advisor ¡ñTroubleshooting Advisor ¡ñDrag-and-drop Cisco IOS Upgrade ¡ñIP Address DHCP ¡ñAutoinstall with saved configuration ¡ñConfiguration Replace ¡ñDHCP Auto Image Upgrade ¡ñDHCP Port Based Allocation ¡ñError Disable MIB |
|
Environmental Ranges |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
|
Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
|
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
|
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
|
Operating altitude |
Up to 10,000 Feet (Up to 3000 Meters) |
|
Storage altitude |
Up to 13,000 (Up to 4000 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
