Product Model: WS-C2960X-48LPS-L
Retail Price: US$2,212.00
Email Us To Get Special Price Today: Julie@corenet.vip
Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 370W of PoE budget for 12 ports with 30W per port, or 24 ports with 15.4W per port or 48 ports with 7.4W per port.
Quick Specs

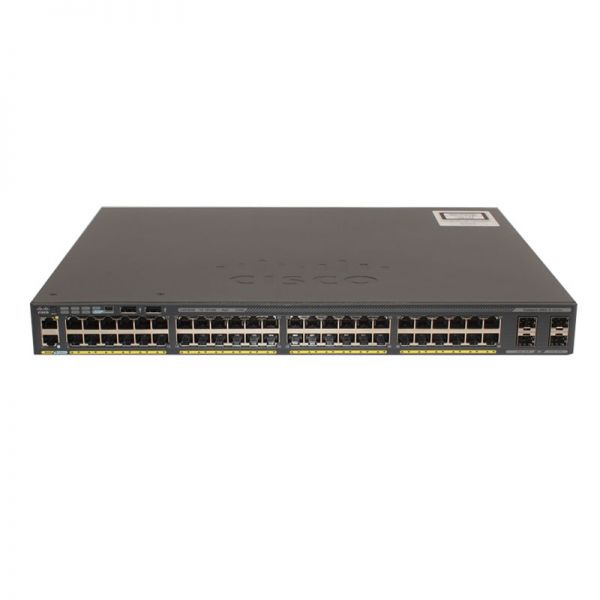

Figure 1 shows the appearance of WS-C2960X-48LPS-L.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960X-48LPS-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
4 x 1G SFP |
|
Ports |
48 x 10/100/1000 Ethernet Gigabit ports |
|
Available PoE Power |
370W |
|
Maximum stacking number |
8 |
|
Stack bandwidth |
80G |
|
Forwarding Performance |
107.1Mpps |
|
Switching Bandwidth |
216Gbps |
|
RAM |
512 MB |
|
Flash Memory |
128 MB |
|
Dimensions |
44.5 cm x 36.8 cm x 4.5 cm |
|
Package Weight |
10.65 Kg |
Product Details
Figure 2 shows the front panel of the Cisco Catalyst 2960X-48LPS-L switch.
Note:
¢Ù Ethernet management port
¢Ú Mode button
¢Û Switch LEDs
¢Ü USB mini-Type B (console) port
¢Ý USB Type A ports
¢Þ SFP module ports
¢ß 48 x 10/100/1000 ports
¢à CONSOLE LED
¢á MGMT LED
¢â RJ-45 console port
¡¤The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
¡¤Power over Ethernet Plus(PoE+) supports up to 370W of PoE budget for 12 ports with 30W per port or 24 ports with 15.4W per port or 48 ports with 7.4W per port.
Figure 3 shows the back panel of the Cisco Catalyst 2960X-48LPS-L switch.
Note:
¢ÙFlexStack-Plus module slot and cover
¢ÚFan Exhaust
¢ÛRPS Connector
¢ÜAC power connector
Figure 4 shows the stackable capacity.
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
Figure 5 shows the unboxing view of WS-C2960X-48LPS-L.
The Accessories
Table 2 shows some accessories of WS-C2960X-48LPS-L.
|
Models |
Description |
|
C2960X-STACK |
Catalyst 2960-X FlexStack Plus Stacking Module |
|
CAB-STK-E-0.5M |
Cisco FlexStack Stacking Cables |
|
GLC-LH-SMD |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
|
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Console Cable 6 ft with USB Type A and mini-B |
Before Purchasing
Do you have any question about WS-C2960X-48LPS-L?
Contact us – Email Live Chat or Julie@corenet.vip.
WS-C2960X-48LPS-L Datasheet
WS-C2960X-48LPS-L Specification |
|
|
Enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 + 4 x 1G SFP |
|
Network management Interface |
10/100 Mbps Ethernet (RJ-45) |
|
Available PoE Power |
370W |
|
Forwarding bandwidth(Gbps) |
108Gbps |
|
Maximum stacking number |
8 |
|
Stack Bandwidth |
80 G |
|
Forwarding Performance |
107.1Mpps |
|
Switching bandwidth |
216Gbps |
|
Maximum active VLANs |
1023 |
|
MAC Address Table Size |
16K (default) |
|
CPU |
APM86392 600MHz dual core |
|
RAM |
256 MB |
|
Flash Memory |
64 MB |
|
Status Indicators |
Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Stacking cable |
Optional |
|
Power Redundancy |
Option (PWR-RPS2300) |
|
Voltage range (Auto) |
110V-240V |
|
Power Consumption Operational |
0.49KVA |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
14.5 Inches (36.8 cm) |
|
Height |
1.75 Inches (4.5 cm) |
|
Weight |
12.9 lb (5.8 Kg) |
|
Package Weight |
23.48 lb (10.65 Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
276,870 |
|
Compliant Standards |
¡ñ IEEE 802.1D Spanning Tree Protocol ¡ñ IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS LAN BASE |
|
license |
NERGY-MGT-100-K9, EW-DO-100-DE |
|
features |
¡ñJumbo Frames ¡ñVLANS ¡ñVoice Vlan ¡ñVTPv2 ¡ñCDPv2 ¡ñLLDP ¡ñ802.3ad LACP ¡ñPVST/PVST+ ¡ñ802.1W/802.1S ¡ñPort Fast/Uplink Fast ¡ñport CoS Trust and Override ¡ñScheduling ¡ñPriority Queuing ¡ñConfigure CoS Priority Queues ¡ñWeighted Tail Drop ¡ñDSCP transparency |
|
Network security |
¡ñSSH, SSL and SCP ¡ñRADIUS and TACACS+ ¡ñSNMPv3 crypto ¡ñ802.1x ¡ñ802.1x Accounting / MIB ¡ñ802.1x w/ port security ¡ñ802.1x w/Voice VLAN ¡ñ802.1x Guest VLAN ¡ñ802.1x VLAN assignment ¡ñ802.1x MAC-Auth Bypass ¡ñBPDU/Root Guard ¡ñPort Security ¡ñPrivate VALN Edge ¡ñStorm Control ¡ñBlock unknown unicast and multicast ¡ñIGMP Snooping ¡ñIGMP Filter/Throttle |
|
Management and Troubleshooting |
¡ñAuto-MDOX ¡ñTDR ¡ñUDLD ¡ñIP SLA Responder ¡ñlayer 2 / IP Traceroute ¡ñSPAN ¡ñRSPAN ¡ñExpress Setup ¡ñDevice Manager ¡ñCisco Network Assistant ¡ñSmartports + Advisor ¡ñTroubleshooting Advisor ¡ñDrag-and-drop Cisco IOS Upgrade ¡ñIP Address DHCP ¡ñAutoinstall with saved configuration ¡ñConfiguration Replace ¡ñDHCP Auto Image Upgrade ¡ñDHCP Port Based Allocation ¡ñError Disable MIB |
|
Environmental Ranges |
|
|
Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF (-5ºC to 40ºC) |
|
Short-term exception at sea level* |
23ºF to 131ºF (-5ºC to 55ºC) |
|
Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF (-5ºC to 45ºC) |
|
Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF (-5ºC to 40ºC) |
|
Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF (-25º to 70ºC) |
|
Operating altitude |
Up to 10,000 Feet (Up to 3000 Meters) |
|
Storage altitude |
Up to 13,000 (Up to 4000 Meters) |
|
Operating relative humidity |
10% to 95% noncondensing |
|
Storage relative humidity |
10% to 95% noncondensing |
