Product Model: WS-C2960-24TC-L (USED)
Retail Price: US$368.00
Email Us To Get Special Price Today: [email protected]
WS-C2960-24TC-L is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSec for providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, Scalable network management.
Quick Specs

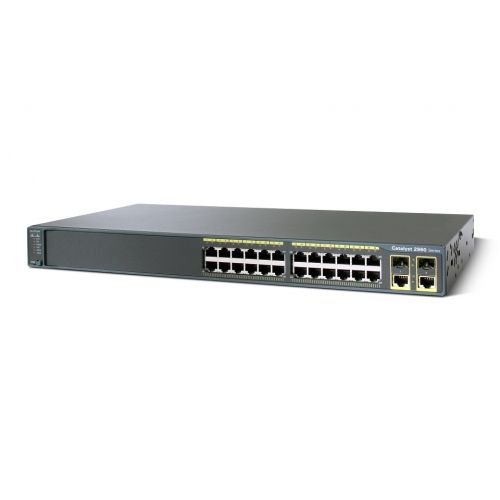

Figure 1 shows the appearance of the Cisco WS-C2960-24TC-L switch and its cables.
Table 1 shows the Quick Spec of the Cisco 2960-24TC-L switch.
|
Product Code |
WS-C2960-24TC-L |
|
Enclosure Type |
Rack-mountable – 1U |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
2 dual-purpose uplinks (dual-purpose uplink port has 1 10/100/1000 Ethernet port, 1 SFP-based Gigabit Ethernet port, 1 port active) |
|
Ports |
24 x Ethernet 10/100 ports |
|
Throughput |
6.5 Mpps |
|
Backplane Capacity |
16 Gbps |
|
DRAM |
64 MB |
|
Dimensions |
1.73 x 17.5 x 9.3 in. |
|
Package Weight |
9.19 Kg |
Product Details
Figure 2 shows the front panel of the Cisco 2960-24TC-L switch.
Note:
|
¢Ù |
LED Area |
|
¢Ú |
24 x Ethernet 10/100 ports |
|
¢Û |
2 dual-purpose uplinks |
Figure 3 shows the back panel of the Cisco 2960-24TC-L switch.
Note:
|
¢Ù |
RJ45 Console Port |
¢Û |
RPS Connector |
|
¢Ú |
Fan Exhaust |
¢Ü |
AC power connector |
The Accessories
Table 2 shows some accessories of the WS-C2960-24TC-L.
|
Models |
Description |
|
GLC-LH-SM |
GE SFP, LC connector LX/LH transceiver |
|
GLC-SX-MMD |
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
Compare to Similar Items
Table 3 shows the comparison of similar items.
|
Models |
WS-C2960X-24TS-L |
WS-C2960-24TC-L |
|
Ports |
24 x Ethernet 10/100/1000 Gigabit ports |
24 x Ethernet 10/100 ports |
|
Uplinks |
4 x 1G SFP |
2 dual-purpose uplinks |
|
Feature Set |
LAN Base |
LAN Base |
|
FlexStack-Plus Stacking |
Optional |
N/A |
Before Purchasing
Do you have any question about the Cisco Catalyst C2960-24TC-L switch?
Contact us – Email Live Chat or [email protected].
WS-C2960-24TC-L (USED) Datasheet
WS-C2960-24TC-L Specification |
|
|
Topology |
Ethernet (10/100BaseTX) |
|
Maximum Port density |
24 10/100 ports |
|
Uplinks |
2 dual-purpose (10/100/1000 or SFP) ports |
|
Modular/Expansion Slots |
n/a |
|
Architecture |
Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Voice Enabled |
|
Form Factor |
Fixed, Rack Mountable, Standalone/Clustering |
|
Dimensions |
1.73 x 17.5 x 9.3 in. |
|
Weight |
8 Pounds |
|
DRAM |
64 MB |
|
MTBF |
667 |
|
Features |
|
|
Specialized Service Modules |
n/a |
|
Security |
|
|
DHCP Snooping |
|
|
Dynamic ARP Inspection |
|
|
IP Source Guard |
|
|
RP Rate Limiters |
|
|
TCP Intercept |
|
|
802.1x |
|
|
Port Security |
|
|
Dynamic VLANs |
|
|
Private VLANs |
|
|
Private VLAN Edge |
|
|
Secure Shell |
|
|
SNMPv3 |
|
|
Unicast RPF |
|
|
ACLs (L2-L4) |
|
|
Kerberos |
|
|
TACACS+ |
|
|
RADIUS |
|
|
High Availability/Resilliency |
|
|
Hardware Redundancy |
External Redundant Power Supply |
|
High Availability/Resilliency |
PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w |
|
Management |
|
|
Management features |
SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
|
Scalability |
|
|
WAN Interface Support |
n/a |
|
Throughput |
6.5 Mpps |
|
Backplane Capacity |
16 Gbps |
|
Number of VLANs |
255 |
