Product Model: UBNT USW-Pro-24-POE
Retail Price: US$963.00
Email Us To Get Special Price Today: [email protected]
The Switch Pro 24 PoE (USW Pro 24 PoE) is a fully managed switch with (16) GbE, 802.3at PoE+ RJ45 ports, (8) GbE, 802.3bt PoE++ RJ45 ports, and (2) 10G SFP+ ports.
Quick Specs

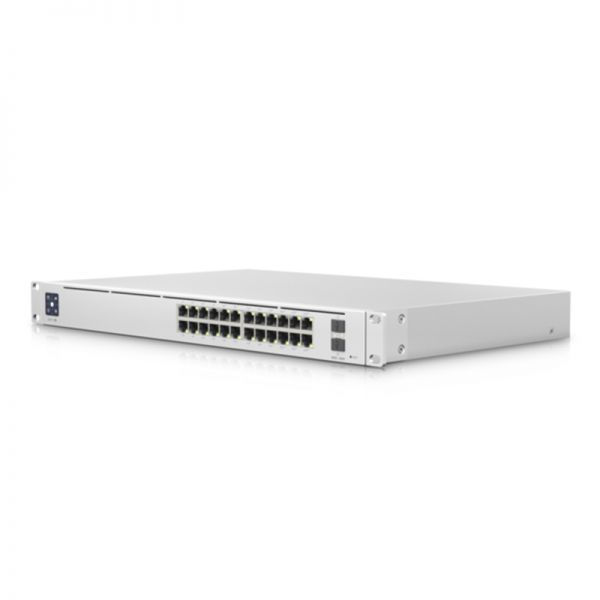

Figure 1 shows the appearance of USW-Pro-24-POE.
Table 1 shows the Quick Specs.
|
Product Code |
USW-Pro-24-POE |
|
Networking |
(24) 10/100/1000 RJ45 Ports |
|
Management |
Ethernet In-Band |
|
Total Available PoE |
400W |
|
Power Supply |
AC/DC, Internal, 450W |
|
Supported Voltage Range |
100 to 240VAC |
|
Dimensions |
442.4 x 285.4 x 43.7 mm |
Product Details
Figure 2 shows the front panel of USW-Pro-24-POE.
Figure 3 shows the back panel of USW-Pro-24-POE.
Features
- ¡ñ 3″ LCM color touchscreen with AR switch management
- ¡ñ (16) GbE, 802.3at PoE+ RJ45 ports
- ¡ñ (8) GbE, 802.3bt PoE++ RJ45 ports
- ¡ñ 10G SFP+ ports
- ¡ñ USP RPS DC input
- ¡ñ 400W total PoE supply
- ¡ñ Near-silent cooling
- ¡ñ Layer 3 switching features
Compare to Similar Items
Table 2 shows the comparison of USW-Pro-24-POE.
|
Module |
USW-Pro-24-POE |
USW-Pro-48-PoE |
|
Networking |
(24) 10/100/1000 RJ45 Ports |
(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports |
|
Management |
Ethernet In-Band |
Ethernet In-Band |
|
Total Available PoE |
400W |
600W |
|
Power Supply |
AC/DC, Internal, 450W |
AC/DC, Internal, 120W |
|
Supported Voltage Range |
100 to 240VAC |
100 to 240VAC |
|
Dimensions |
442.4 x 285.4 x 43.7 mm |
442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72″) |
Get More Information
Do you have any question about the USW-Pro-24-POE ?
Contact us – Email Live Chat or [email protected].
UBNT USW-Pro-24-POE Datasheet
USW-Pro-24-POE Specification |
|
|
Mechanical |
|
|
Dimensions |
442.4 x 285.4 x 43.7 mm |
|
Interfaces |
|
|
Networking |
(24) 10/100/1000 RJ45 Ports |
|
Management |
Ethernet In-Band |
|
Total Non-Blocking Throughput |
44 Gbps |
|
Switching Capacity |
88 Gbps |
|
Forwarding Rate |
65.472 Mpps |
|
Power Method |
|
|
Universal Input |
100-240VAC/50-60 Hz |
|
USP RPS DC Input |
52VDC, 7.69A; 11.5VDC, 2.61A |
|
Power Supply |
AC/DC, Internal, 450W |
|
Supported Voltage Range |
100 to 240VAC |
|
Max. Power Consumption (Excluding PoE Output) |
50W |
|
LEDs |
|
|
System |
Status |
|
RJ45 Data Ports |
PoE; Speed/Link/Activity |
|
SFP+ Data Ports |
Link/Activity |
|
ESD/EMP Protection |
Air: ¡À 16 kV, Contact: ¡À 12 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 40¡ã C (23 to 104¡ã F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
PoE |
|
|
Total Available PoE |
400W |
|
PoE Interfaces |
|
|
Ports 1-16 |
POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) |
|
Ports 17-24 |
60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 😎 |
|
Max. PoE Wattage per Port by PSE |
|
|
802.3at |
32W |
|
802.3bt |
64W |
|
Voltage Range 802.3af Mode |
44-57V |
|
Voltage Range 802.3at Mode |
50-57V |
