Product Model: USW-Enterprise-8-PoE
Retail Price: US$574.00
Email Us To Get Special Price Today: [email protected]
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
Quick Specs

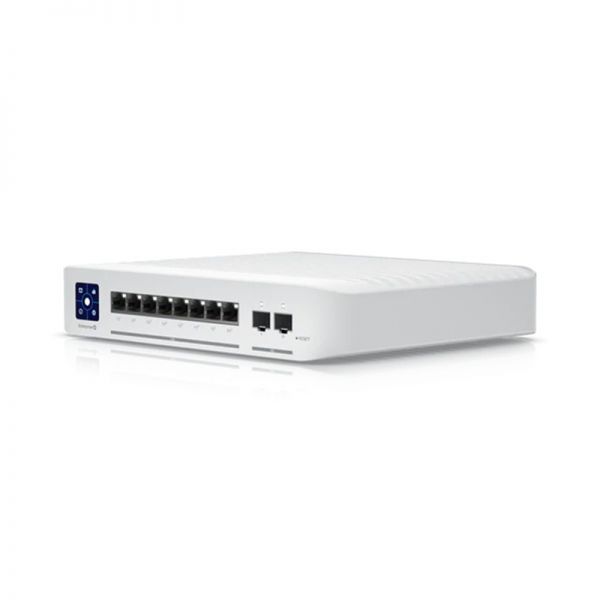

Figure 1 shows the appearance of USW-Enterprise-8-PoE.
Table 1 shows the Quick Specs.
|
Product Code |
USW-Enterprise-8-PoE |
|
Forwarding Rate |
59.52 Mpps |
|
Max PoE Power |
120W |
|
Power Method |
(1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 150W |
Product Details
Figure 2 shows the front panel of USW-Enterprise-8-PoE.
Figure 3 shows the back panel of USW-Enterprise-8-PoE.
USW-Enterprise-8-PoE provides these features:
- ● 3″ LCM color touchscreen with AR switch management
- ● (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- ● 10G SFP+ ports
- ● 120W total PoE supply
- ● Wall-mountable (kit included)
Compare to Similar Items
Table 2 shows the comparison of USW-Enterprise-8-PoE.
|
Module |
USW-Enterprise-8-PoE |
USW-Pro-48-PoE |
|
Forwarding Rate |
59.52 Mpps |
130.944 Mpps |
|
Power Method |
(1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
Universal Input£º100-240VAC/50-60 Hz USP RPS DC Input£º52VDC, 11.54A; 11.5VDC, 5.22A |
|
Power Supply |
AC/DC, Internal, 150W |
AC/DC, Internal, 660W |
Get?More?Information
Do you have any?question about?the USW-Enterprise-8-PoE
Contact us – Email Live Chat or [email protected].
USW-Enterprise-8-PoE Datasheet
USW-Enterprise-8-PoE specification |
|
|
Mechanical |
|
|
Dimensions |
200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) |
|
Enclosure Materials |
Polycarbonate |
|
Mount Material |
Polycarbonate |
|
Hardware |
|
|
Total Non-Blocking Throughput |
40 Gbps |
|
Switching Capacity |
80 Gbps |
|
Forwarding Rate |
59.52 Mpps |
|
Max PoE Power |
120W |
|
Power Method |
(1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 150W |
|
Management Interface |
Ethernet In-Band |
|
Networking Interfaces |
(8) 1/2.5 Gbps RJ45 Ethernet |
|
SFP+ Interfaces |
(2) 1/10 Gbps SFP+ |
|
PoE Interfaces |
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
Max. PoE+ Wattage per Port by PSE |
32W |
|
Voltage Range 802.3af Mode |
44 to 57V |
|
Voltage Range 802.3at Mode |
50 to 57V |
|
Services |
SMB Layer 3* PoE Gigabit Ethernet Switch |
|
LCM Display |
(1) 1.3″ Touchscreen |
|
ESD/EMP Protection |
Air: ¡À 16 kV, Contact: ¡À 12 kV |
|
Operating Temperature |
-5 to 45¡ã C (23 to 113¡ã F) |
|
Operating Humidity |
10 – 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
|
Ethernet |
White: Link or Activity |
|
SFP+ |
White: Link or Activity |
