Product Model: UBNT USW-Enterprise-24-PoE
Retail Price: US$1,012.00
Email Us To Get Special Price Today: [email protected]
Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports.
Quick Specs

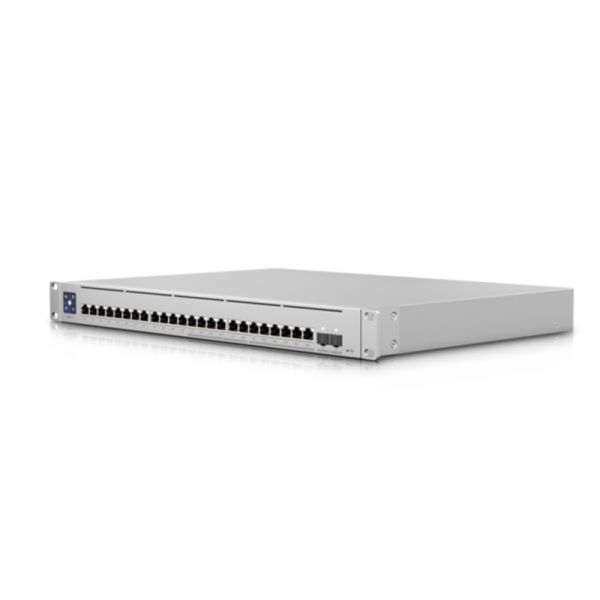

Figure 1 shows the appearance of USW-Enterprise-24-POE.
Table 1 shows the Quick Specs.
|
Product Code |
USW-Enterprise-24-POE |
|
Switching Capacity |
124 Gbps |
|
Forwarding Rate |
92.25 Mpps |
|
Max. Power Consumption |
550W |
|
Power Method |
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz |
Product Details
Figure 2 shows the front panel of USW-Enterprise-24-POE.
Figure 3 shows the back panel of USW-Enterprise-24-POE.
USW-Enterprise-24-POE provides these features:
- ● 3″ LCM color touchscreen with AR switch management
- ● (12) GbE, 802.3at PoE+ RJ45 ports
- ● (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- ● 10G SFP+ ports
- ● USP RPS DC input
- ● 400W total PoE supply
- ● Layer 3 switching features
- ● Single-row RJ45 port layout for easy patch panel cable management
Compare to Similar Items
Table 2 shows the comparison of USW-Enterprise-24-POE.
|
Module |
USW-Enterprise-48-POE |
UBNT USW-Enterprise-24-PoE |
|
Max Power Consumption (Excluding PoE Output) |
150W |
550W |
|
Power Method |
(1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz |
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
|
Power Supply |
AC/DC, Internal, 100-240V, 10A Max. |
AC/DC, Internal, 550W |
|
Management Interface |
Ethernet In-Band |
Ethernet In-Band |
Get?More?Information
Do you have any?question about?the USW-Enterprise-24-POE
Contact us – Email Live Chat or [email protected].
UBNT USW-Enterprise-24-PoE Datasheet
USW-Enterprise-24-POE specification |
|
|
Mechanical |
|
|
Dimensions |
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″) |
|
Enclosure Materials |
SGCC Steel |
|
Mount Material |
SGCC Steel |
|
Hardware |
|
|
Total Non-Blocking Throughput |
62 Gbps |
|
Switching Capacity |
124 Gbps |
|
Forwarding Rate |
92.25 Mpps |
|
Max. Power Consumption |
550W |
|
Power Method |
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz |
|
Power Supply |
AC/DC, Internal, 550W |
|
Management Interface |
Ethernet In-Band |
|
Networking Interfaces |
(12) 10/100/1000 Mbps RJ45 Ethernet |
|
SFP+ Interfaces |
(2) 1/10G SFP+ |
|
PoE Interfaces |
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
|
Max. PoE+ Wattage per Port by PSE |
34.2W |
|
Voltage Range 802.3af Mode |
44 to 57V |
|
Voltage Range 802.3at Mode |
50 to 57V |
|
Services |
SMB Layer 3 PoE Gigabit Ethernet Switch |
|
ESD/EMP Protection |
Air: ¡À 16 kV, Contact: ¡À 12 kV |
|
Operating Temperature |
-5 to 40¡ã C (23 to 104¡ã F) |
|
Operating Humidity |
10 – 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
