Product Model: USW-48
Retail Price: US$532.10
Email Us To Get Special Price Today: [email protected]
The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports.?
Quick Specs

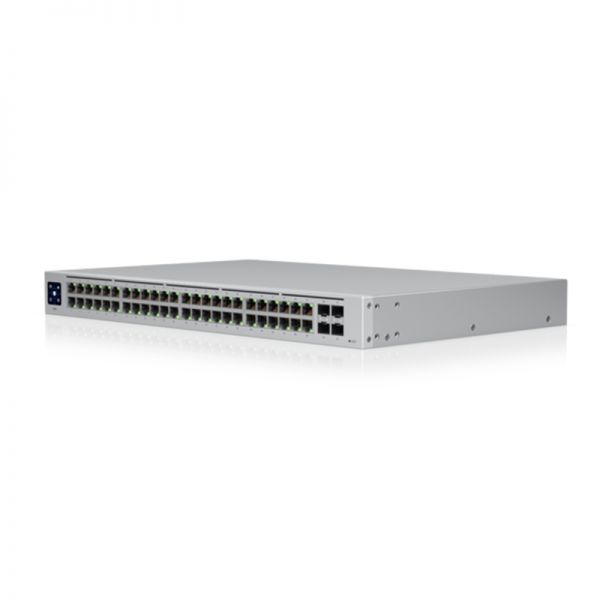

Figure 1 shows the appearance of USW-48.
Table 1 shows the Quick Specs.
|
Product Code |
USW-48 |
|
Total Non-Blocking Line Rate |
52 Gbps |
|
Max. Power Consumption |
40W |
|
Forwarding Rate |
77.376 Mpps |
|
Power Method |
Universal AC Input: 100-240VAC, 50/60 Hz |
|
Power Supply |
AC/DC, Internal, 60W |
Product Details
Figure 2 shows the front panel of USW-48.
Figure 3 shows the back panel of USW-48.
USW-48 provides these features:
- ● 3″ LCM color touchscreen with AR switch management
- ● (48) GbE RJ45 ports
- ● (4) 1G SFP ports
- ● Fanless, silent cooling
Compare to Similar Items
Table 2 shows the comparison of USW-48.
|
Module |
USW-48 |
USW-Pro-48-PoE |
|
Total Non-Blocking Line Rate |
52 Gbps |
88 Gbps |
|
Max. Power Consumption |
40W |
60W (Excluding PoE Output) |
|
Forwarding Rate |
77.376 Mpps |
130.944 Mpps |
|
Power Method |
Universal AC Input: 100-240VAC, 50/60 Hz |
Universal Input£º100-240VAC/50-60 Hz USP RPS DC Input£º52VDC, 11.54A; 11.5VDC, 5.22A |
|
Power Supply |
AC/DC, Internal, 60W |
AC/DC, Internal, 660W |
Get?More?Information
Do you have any?question about?the USW-48
Contact us – Email Live Chat or [email protected].
USW-48 Datasheet
USW-48 Specification |
|
|
Mechanical |
|
|
Dimensions |
442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″) |
|
Enclosure Characteristics |
SGCC Steel |
|
Hardware |
|
|
Total Non-Blocking Line Rate |
52 Gbps |
|
Max. Power Consumption |
40W |
|
Forwarding Rate |
77.376 Mpps |
|
Power Method |
Universal AC Input: 100-240VAC, 50/60 Hz |
|
Power Supply |
AC/DC, Internal, 60W |
|
Supported Voltage Range |
100 – 240VAC |
|
Networking Interfaces |
(48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports |
|
Management Interface |
Ethernet In-Band |
|
Modes |
SMB Layer 2 Gigabit Ethernet Switch |
|
Operating Temperature |
-15 to 40¡ã C (5 to 104¡ã F) |
|
Operating Humidity |
10 – 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
LEDs |
|
|
System |
(1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
|
Ethernet |
Green: 1G, Amber: 10/100 Mbps |
|
SFP |
Green: 1G |
