Product Model: US-8-60W
Retail Price: US$140.00
Email Us To Get Special Price Today: [email protected]
Quick Specs

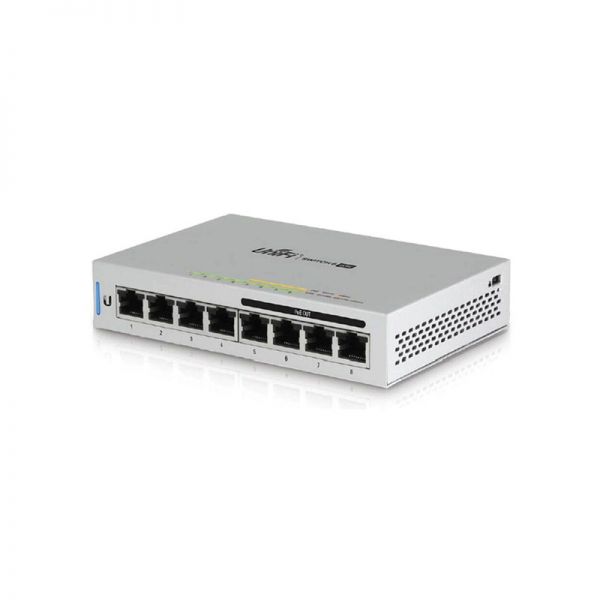

Figure 1 shows the appearance of US-8-60W.
Table 1 shows the Quick Specs.
|
Product Code |
US-8-60W |
|
Dimensions |
148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
|
Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports |
|
PoE Interfaces |
(4) Ports 5, 6, 7, 8: IEEE 802.3af |
|
Power Supply |
External AC/DC Adapter: 48V, 1.25A |
|
Power Method |
48VDC, Max. 2A |
Product Details
Figure 2 shows the front panel of US-8-60W.
Figure 3 shows the back panel of US-8-60W.
US-8-60W provides these features:
- ● (4) GbE RJ45 ports
- ● (4) GbE, 802.3af PoE RJ45 ports
- ● 48W total PoE supply
- ● Powered with the included 60W, AC/DC power adapter
- ● Compact housing
Compare to Similar Items
Table 2 shows the comparison of US-8-60W.
|
Module |
US-8-60W |
US-16-150W |
|
Dimensions |
148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
|
Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
|
PoE Interfaces |
(4) Ports 5, 6, 7, 8: IEEE 802.3af |
PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 😎 |
|
Power Supply |
External AC/DC Adapter: 48V, 1.25A |
AC/DC, Internal, 150W DC |
|
Power Method |
48VDC, Max. 2A |
100-240VAC/50-60 Hz, Universal Input |
Get?More?Information
Do you have any?question about?the US-8-60W
Contact us – Email Live Chat or [email protected].
US-8-60W Datasheet
US-8-60W Specification |
|
|
Dimensions |
148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″) |
|
Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports |
|
PoE Interfaces |
(4) Ports 5, 6, 7, 8: IEEE 802.3af |
|
Power Method |
48VDC, Max. 2A |
|
Power Supply |
External AC/DC Adapter: 48V, 1.25A |
|
Max. Power Consumption |
12W (Excluding PoE Output) |
|
Max. PoE Wattage per Port |
15.4W |
|
PoE Output (Ports 5 to 8) |
IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-) |
|
Line Rate |
8 Gbps, Non-Blocking |
|
LEDs |
|
|
ESD/EMP Protection |
¡À 24kV Air, ¡À 24kV Contact |
|
Operating Temperature |
-5 to 45¡ã C (23 to 113¡ã F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
