Product Model: US-24-250W

Retail Price: US$575.00

Email Us To Get Special Price Now: [email protected]

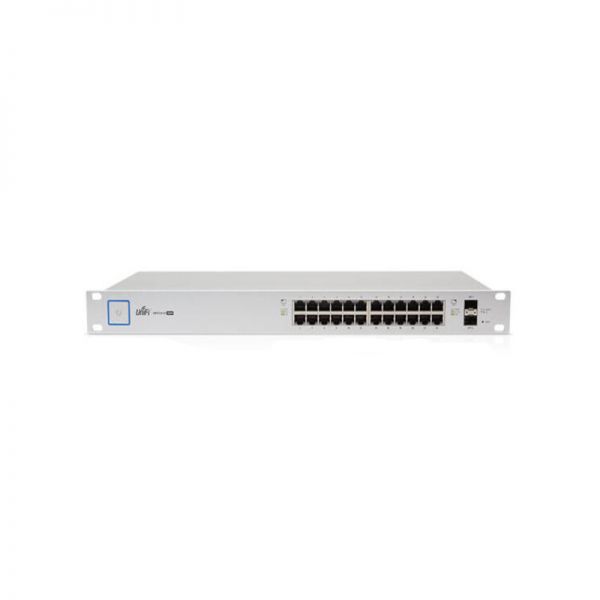

Figure 1 shows the appearance of US-24-250W.

Table 1 shows the Quick Specs.

Product Code	US-24-250W
Dimensions	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″)
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 250W DC

Figure 2 shows the front panel of US-24-250W.

Figure 3 shows the back panel of US-24-250W.

US-24-250W provides these features:

Table 2 shows the comparison of US-24-250W.

Module	US-24-250W	US-16-150W
Dimensions	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″)	443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports	(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band	Ethernet In-Band
Power Method	100-240VAC/50-60 Hz, Universal Input	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 250W DC	AC/DC, Internal, 150W DC

Do you have any question about the US-24-250W

Specification

US-24-250W Datasheet

US-24-250W Specification
Dimensions	485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″)
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	26 Gbps
Switching Capacity	52 Gbps
Forwarding Rate	38.69 Mpps
MAC Address Table	16384
Maximum Aggregations	6
Monitoring Sessions	1
Maximum VLANs	255
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 250W DC
Max. Power Consumption Including PoE Output Excluding PoE Output	250W 30W
LEDs Per Port RJ45 Data Ports SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Sound Level Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3	9.1 dBr 14.2 dBr 16.8 dBr 21.2 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
PoE+ Per Port
PoE Interfaces	PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3at Mode	50–57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V
