Product Model: US-16-150W
Retail Price: US$532.00
Email Us To Get Special Price Now: [email protected]
The US-16-150W delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
Quick Specs

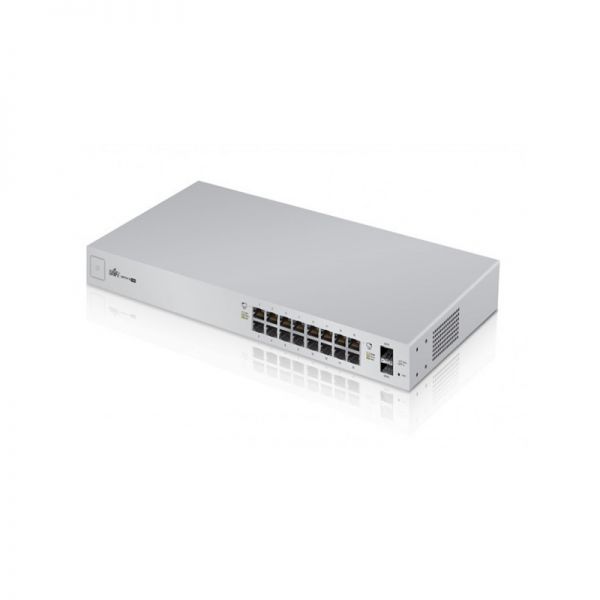

Figure 1 shows the appearance of US-16-150W.
Table 1 shows the Quick Specs.
|
Product Code |
US-16-150W |
|
Dimensions |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
|
Networking Interfaces |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
|
Total Non-Blocking Throughput |
18 Gbps |
|
Switching Capacity |
36 Gbps |
|
Forwarding Rate |
26.78 Mpps |
Product Details
Figure 2 shows the front panel of US-16-150W.
Note:
|
① |
16 Poe Gigabit RJ45 Ports |
|
② |
2 SFP Ports |
Figure 3 shows the back panel of US-16-150W.
Features
①Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
②Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
③Integration with UniFi Controller
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.
④Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Compare to Similar Items
Table 2 shows the comparison of US-16-150W.
|
Model |
US-16-150W |
US-24-250W |
|
Dimensions |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
|
Networking Interfaces |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
|
Total Non-Blocking Throughput |
18 Gbps |
26 Gbps
|
|
Switching Capacity |
36 Gbps |
52 Gbps |
|
Forwarding Rate |
26.78 Mpps |
38.69 Mpps |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
Air: ± 24 kV, Contact: ± 24 kV |
Get More Information
Do you have any question about the US-16-150W ？
Contact us now via Live Chat or [email protected].
Specification
US-16-150W Datasheet
US-16-150W Specification |
||
|
Dimensions |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70″) |
|
|
Networking Interfaces |
(16) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
|
|
Management Interface |
Ethernet In-Band |
|
|
Total Non-Blocking Throughput |
18 Gbps |
|
|
Switching Capacity |
36 Gbps |
|
|
Forwarding Rate |
26.78 Mpps |
|
|
MAC Address Table |
16384 |
|
|
Maximum Aggregations |
6 |
|
|
Monitoring Sessions |
1 |
|
|
Maximum VLANs |
255 |
|
|
Power Method |
100-240VAC/50-60 Hz, Universal Input |
|
|
Power Supply |
AC/DC, Internal, 150W DC |
|
|
Max. Power Consumption |
Including PoE Output |
t Excluding PoE Output |
|
150W |
28W |
|
|
LEDs Per Port |
RJ45 Data Ports |
SFP Data Ports |
|
PoE, Speed/Link/Activity |
Speed/Link/Activity |
|
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Operating Humidity |
5 to 95% Noncondensing |
|
