Product Model: UAP-AC-PRO
Product Special Price: US$203.00
Email Us To Get Special Price Now: [email protected]
UAP-AC-PRO Datasheet
UAP-AC-PRO Specification |
|
|
Dimensions |
196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″) |
|
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
|
Ports |
(1) USB 2.0 Port |
|
Buttons |
Reset |
|
Antennas |
(3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac |
|
Power Method |
Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
|
Maximum Power Consumption |
9W |
|
Max TX Power |
22 dBm |
|
BSSID |
Up to Four per Radio |
|
Power Save |
Supported |
|
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
|
Certifications |
CE, FCC, IC |
|
Mounting |
Wall/Ceiling (Kits Included) |
|
Operating Temperature |
-10 to 70° C (14 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
ADVANCED TRAFFIC MANAGEMENT |
|
|
VLAN |
802.1Q |
|
Advanced QoS |
Per-User Rate Limiting |
|
Guest Traffic Isolation |
Supported |
|
WMM |
Voice, Video, Best Effort, and Background |
|
Concurrent Clients |
200+ |
|
SUPPORTED DATA RATES (MBPS) |
|
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n |
6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
|
802.11ac |
6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance. Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3×3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility.
Quick Specs

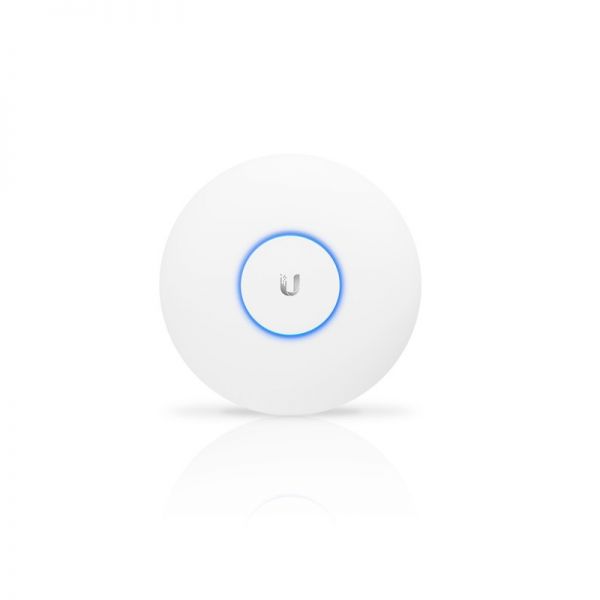

Figure 1 shows the appearance of UAP-AC-PRO.
Table 1 shows the Quick Specs.
|
SKU |
UAP-AC-PRO |
|
Dimensions |
196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38″) |
|
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
|
Ports |
(1) USB 2.0 Port |
|
Buttons |
Reset |
|
Antennas |
(3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac |
|
Power Method |
Passive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC) |
|
Maximum Power Consumption |
9W |
|
Max TX Power |
22 dBm |
Product Details
Figure 2 shows the front panel of UAP-AC-PRO.
Figure 3 shows the back panel of UAP-AC-PRO.
Features
①Simultaneous Dual-Band 3×3 MIMO
②5 GHz Band with Speeds of up to 1300 Mbps
③2.4 GHz Band with Speeds of up to 450 Mbps
④Range up to 122 meters (400 feet)
⑤802.3af PoE / 802.3at PoE+ Compatible
⑥(2) Gigabit Ethernet Ports
Supported switches
|
Product Name |
Details |
|
US-8 |
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-8-60W |
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
US-8-150W |
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-16-150W |
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
US-24 |
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
US-24-250W |
UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Name |
UAP-AC-PRO |
UAP-AC-LITE |
UAP-AC-IW with Gigabit PoE Power Supply |
|
Dimensions |
196.7 x 35 mm |
160 x 31.45 mm |
139.7 x 86.7 mm |
|
Environment |
Indoor/Outdoor |
Indoor |
Indoor |
|
2.4 GHz Radio Rate |
450 Mbps |
300 Mbps |
300 Mbps |
|
5 GHz Radio Rate |
1300 Mbps |
867 Mbps |
867 Mbps |
|
PoE Mode |
802.3af PoE/802.3at PoE+ |
802.3af/A PoE & 24V PoE |
802.3at PoE+ |
|
Ports |
(2)10/100/1000 Ethernet |
(1)10/100/1000 Ethernet |
(3)10/100/1000 Ethernet |
Get More Information
Do you have any question about the UAP-AC-PRO ?
Contact us now via Live Chat or [email protected].
