Product Model: SG300-52P
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Cisco 300 series switch delivers the ideal combination of price, performance, and capabilities in a solution designed specifically for small businesses. This broad portfolio of affordable managed switch provides a powerful foundation to support your business network.
Quick Specs

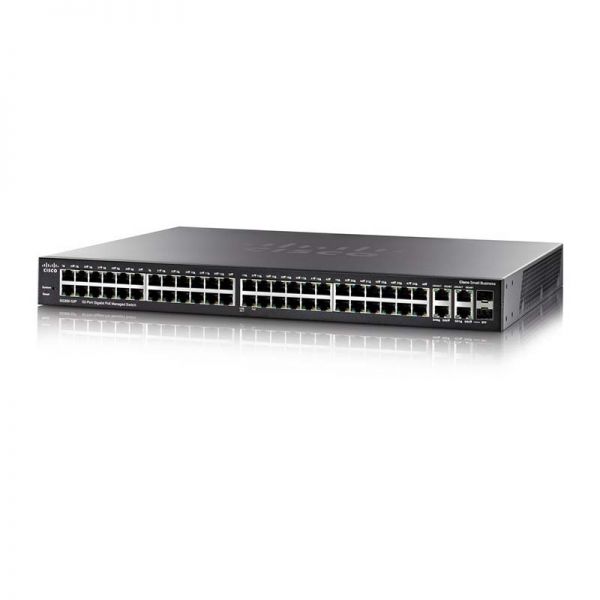

Figure 1 shows the appearance of SG300-52P.
?
Table 1 shows the Quick Specs.
|
Jumbo Frame Support: |
9?KB |
|
Routing Protocol: |
Static IPv4 routing |
|
Minimum Storage Temperature: |
-4 F |
|
Depth: |
13.78 inches |
|
MTBF: |
100,262 hours at 45C |
|
Cables Included: |
1x Serial Cable |
|
Capacity: |
4000 active VLANs |
|
Height: |
1.73?inches |
|
Maximum Operating Temperature: |
104 F |
|
MAC Address Table Size: |
16,000 entries |
|
Localization: |
North America |
|
Width: |
17.3 inches |
|
Enclosure Type: |
Desktop, rack-mountable – 1U |
|
Maxiumum Storage Temperature: |
158 F |
|
Ports: |
48-port 10/100/1000 + 4 combo Gigabit SFP |
|
Device Type: |
Switch – 52 ports – L3 – managed |
|
Humidity Operating Range: |
10-90% (non-condensing) |
|
Weight: |
11.68?lbs |
|
Minimum Operating Temperature: |
32 F |
|
Interfaces: |
48 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 – PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 | 1 x console – 9 pin D-Sub (DB-9) – management | 2 x SFP (mini-GBIC) |
|
Humidity Storage Range: |
10-90% (non-condensing) |
|
Flash Memory: |
16 MB |
|
Voltage Required: |
AC 120/230 V ( 50/60 Hz ) |
|
Performance: |
Switching capacity: 104 Gbps; Forwarding performance (64-byte packet size): 77.38 Mpps |
|
Power Device: |
Internal power supply |
|
Power Over Ethernet (PoE): |
PoE/PoE+ |
|
Status Indicators: |
Link activity, port transmission speed, system |
|
Ram: |
128 MB |
|
Authentication Method: |
SSH, RADIUS, TACACS+ |
Before Purchasing
Do you have any question about the Cisco SG300-52P
Contact us – Email Live
Chat or [email protected].
SG300-52P Datasheet
SG300-52P Specification |
|
|
Jumbo Frame Support: |
9 KB |
|
Routing Protocol: |
Static IPv4 routing |
|
Minimum Storage Temperature: |
-4 F |
|
Depth: |
13.78 inches |
|
MTBF: |
100,262 hours at 45C |
|
Cables Included: |
1x Serial Cable |
|
Capacity: |
4000 active VLANs |
|
Height: |
1.73 inches |
|
Maximum Operating Temperature: |
104 F |
|
MAC Address Table Size: |
16,000 entries |
|
Localization: |
North America |
|
Width: |
17.3 inches |
|
Enclosure Type: |
Desktop, rack-mountable – 1U |
|
Maxiumum Storage Temperature: |
158 F |
|
Ports: |
48-port 10/100/1000 + 4 combo Gigabit SFP |
|
Device Type: |
Switch – 52 ports – L3 – managed |
|
Humidity Operating Range: |
10-90% (non-condensing) |
|
Weight: |
11.68 lbs |
|
Minimum Operating Temperature: |
32 F |
|
Interfaces: |
48 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 – PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 | 1 x console – 9 pin D-Sub (DB-9) – management | 2 x SFP (mini-GBIC) |
|
Humidity Storage Range: |
10-90% (non-condensing) |
|
Flash Memory: |
16 MB |
|
Voltage Required: |
AC 120/230 V ( 50/60 Hz ) |
|
Performance: |
Switching capacity: 104 Gbps; Forwarding performance (64-byte packet size): 77.38 Mpps |
|
Power Device: |
Internal power supply |
|
Power Over Ethernet (PoE): |
PoE/PoE+ |
|
Status Indicators: |
Link activity, port transmission speed, system |
|
Ram: |
128 MB |
|
Authentication Method: |
SSH, RADIUS, TACACS+ |
