Product Model: S6730S-H24X6C-A

Retail Price: US$1,905.00

Email Us To Get Special Price Today: [email protected]

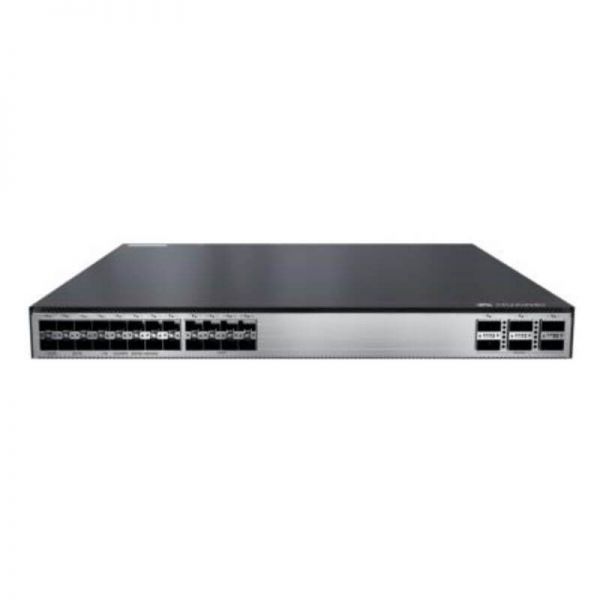

Huawei s6730s-h24x6c-a 24 port 10 Gigabit SFP + optical three-layer 10 Gigabit core fiber switch

Quick Specs

Table 1 shows the Quick Specs.

Product Code	S6730S-H24X6C-A
Fixed ports	24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height(U)	1U
Input voltage	AC Power – Rated AC voltage: 100V to 240V AC; 50/60 Hz – Max. AC voltage: 90V to 290V AC; 45?C65 Hz DC Power – Rated DC voltage:?C48V?C60V – Max. DC voltage-38.4V DC-72V DC
Input current	AC 600WMax 8A DC 1000WMax 30A
Maximum power consumption	231W
Minimum power consumption	97W

The Modules

Table 2 shows the recommended products.

Model	Description
eSFP-GE-ZX100-SM1550	Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)
SFP-GE-LX-SM1310-BIDI	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)
SFP-GE-LX-SM1490-BIDI	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)
LE2MGSC40DE0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)
LE2MGSC40ED0	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)
SFP-GE-ZBXD1	Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)
SFP-GE-ZBXU1	Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)
SFP-GE-BXU1-SC	1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)
CWDM-SFPGE-1471	CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)
CWDM-SFPGE-1491	CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)
DWDM-SFPGE-1560-61	DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)
SFP-1000BaseT	Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)
SFP-10G-USR	10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)
OMXD30000	Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)
SFP-10G-iLR	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)
OSX010000	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)
OSX040N01	Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)
SFP-10G-ER-1310	Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)
SFP-10G-ZR	10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)
SFP-10G-BXU1	10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)

Compare to Similar Items

Table3shows the comparison.

Product Code	S6730-H24X6C	S6730-H48X6C
Fixed ports	24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28	48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm	442 mm x 420 mm x 43.6 mm
Chassis height(U)	1U	1U
Input voltage	AC Power – Rated AC voltage: 100V to 240V AC; 50/60 Hz – Max. AC voltage: 90V to 290V AC; 45?C65 Hz DC Power – Rated DC voltage:?C48V?C60V – Max. DC voltage-38.4V DC-72V DC	AC Power – Rated AC voltage: 100V to 240V AC; 50/60 Hz – Max. AC voltage: 90V to 290V AC; 45?C65 Hz DC Power – Rated DC voltage:?C48V?C60V – Max. DC voltage-38.4V DC-72V DC
Input current	AC 600WMax 8A DC 1000WMax 30A	AC 600WMax 8A DC 1000WMax 30A
Maximum power consumption	231W	274W
Minimum power consumption	97W	97W

Before Purchasing

Do you have any question about the S6730S-H24X6C-A

Specification

S6730S-H24X6C-A Datasheet

S6730S-H24X6C-A Specification
Model	S6730S-H24X6C-A
Memory (RAM)	4 GB
Flash	2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	62.27 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	N/A
Power supply surge protection	Using AC power modules: ¡À6 kV in differential mode, ¡À6 kV in common mode Using DC power modules: ¡À2 kV in differential mode, ¡À4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging)	9.84 kg (21.69 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	254 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	149 W
Operating temperature	-5¡ãC to +45¡ãC (23¡ãF to 113¡ãF) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1¡ãC (1.8¡ãF) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0¡ãC (32¡ãF). The operating temperature of the switch is -5¡ãC to 40¡ãC (23¡ãF to 104¡ãF) when it uses QSFP-100G-ER4 optical module.
Storage temperature	-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF)
Noise under normal temperature (27¡ãC, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
