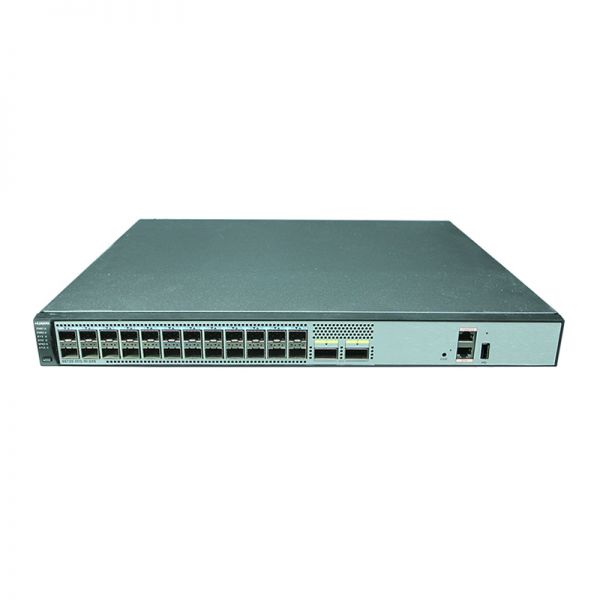

Product Model: S6720S-26Q-LI-24S-AC
Retail Price: US$2,144.00
Email Us To Get Special Price Today: [email protected]
The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
S6720S-26Q-LI-24S-AC |
|
Fixed ports |
24x10GE port, 2x40GE port |
|
Dimensions (W x D x H, mm) |
420 x 220 x 43.6 |
|
Chassis height(U) |
1U |
|
CPU Frequency |
1 GHz |
|
CPU Cores |
2 |
|
Memory (RAM) |
1 GB |
|
Rated voltage range |
AC: 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
AC: 90 V AC to 264 V AC; 47-63 Hz |
|
Maximum input current |
3 A |
|
Minimum power consumption |
100.2 W |
The Modules
Table 2 shows the recommended products.
|
Model |
Description |
|
eSFP-GE-ZX100-SM1550 |
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC) |
|
SFP-GE-LX-SM1310-BIDI |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
|
SFP-GE-LX-SM1490-BIDI |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
|
LE2MGSC40DE0 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
|
LE2MGSC40ED0 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
|
SFP-GE-ZBXD1 |
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC) |
|
SFP-GE-ZBXU1 |
Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
|
SFP-GE-BXU1-SC |
1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC) |
|
CWDM-SFPGE-1471 |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC) |
|
CWDM-SFPGE-1491 |
CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC) |
|
DWDM-SFPGE-1560-61 |
DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC) |
|
SFP-1000BaseT |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
SFP-10G-USR |
10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
|
OMXD30000 |
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
|
SFP-10G-iLR |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) |
|
OSX010000 |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
|
OSX040N01 |
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
|
SFP-10G-ER-1310 |
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
|
SFP-10G-ZR |
10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) |
|
SFP-10G-BXU1 |
10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Code |
S6720-26Q-LI-24S-AC |
S6720S-26Q-LI-24S-AC |
|
Fixed ports |
24x10GE port, 2x40GE port |
24x10GE port, 2x40GE port |
|
Dimensions (W x D x H, mm) |
420 x 220 x 43.6 |
420 x 220 x 43.6 |
|
Chassis height(U) |
1U |
1U |
|
CPU Frequency |
1 GHz |
1 GHz |
|
CPU Cores |
2 |
2 |
|
Memory (RAM) |
1 GB |
1 GB |
|
Rated voltage range |
AC: 100 V AC to 240 V AC, 50/60 Hz |
AC: 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
AC: 90 V AC to 264 V AC; 47-63 Hz |
AC: 90 V AC to 264 V AC; 47-63 Hz |
|
Maximum input current |
3 A |
3 A |
|
Minimum power consumption |
100.2 W |
100.2 W |
Before Purchasing
Do you have any question about the S6720S-26Q-LI-24S-AC ?
Contact us – Email Live Chat or [email protected].
S6720S-26Q-LI-24S-AC Datasheet
S6720S-26Q-LI-24S-AC Specification |
||
|
Physical specifications |
Chassis dimensions (W x D x H, mm) |
420 x 220 x 43.6 |
|
Chassis height |
1 U |
|
|
Fixed port |
10GE port |
24 |
|
40GE port |
2 |
|
|
Management port |
ETH management port |
Supported |
|
Console port (RJ45) |
Supported |
|
|
USB port |
USB 2.0 |
|
|
CPU |
Frequency |
1 GHz |
|
Cores |
2 |
|
|
Memory |
Memory (RAM) |
1 GB |
|
Flash |
Hardware: 512 MB, of which 240 MB is available for users |
|
|
Power supply system |
Power supply type |
Built-in AC |
|
Power supply redundancy |
Built-in single power supply and RPS in 6:1 mode |
|
|
RPS |
Supported |
|
|
Rated voltage range |
AC: 100 V AC to 240 V AC, 50/60 Hz |
|
|
Maximum voltage range |
AC: 90 V AC to 264 V AC; 47-63 Hz |
|
|
Maximum input current |
3 A |
|
|
Maximum power consumption of the device |
100.2 W |
|
|
Heat dissipation system |
Heat dissipation mode |
Air-cooled heat dissipation and intelligent fan speed adjustment |
|
Number of fan modules |
3 |
|
|
Airflow |
Air flows in from the left side and front panel, and exhausts from the right side. |
|
|
Maximum heat dissipation of the device (BTU/hour) |
342 |
|
|
Environment parameters |
Long-term operating temperature |
0-1800 m: 0¡ãC to 45¡ãC 1800-5000 m: The operating temperature decreases 1¡ãC for every 220 m increase in altitude. |
|
Storage temperature |
-40¡ãC to +70¡ãC |
|
|
Relative humidity |
5%-95% (non-condensing) |
|
|
Operating altitude |
5000 m |
|
|
Noise under normal temperature (sound power) |
46.5 dB(A) |
|
|
Noise under high temperature (sound power) |
72.9 dB(A) |
|
