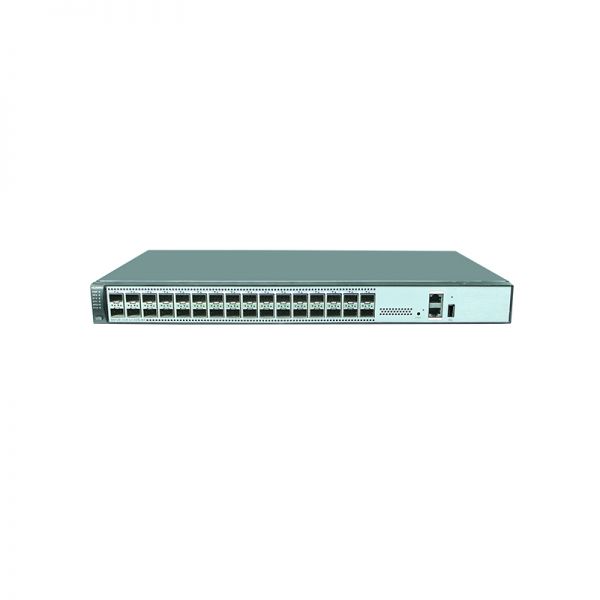

Product Model: S6720-32X-LI-32S-AC
Retail Price: US$3,668.00
Email Us To Get Special Price Today: [email protected]
Huawei S6720-LI series are next-generation simplified all-10 GE fixed switches and can be used for 10 GE access on campus and data center networks.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
S6720-32X-LI-32S-AC |
|
Memory (RAM) |
2 GB |
|
Flash |
1 GB |
|
Mean time between failures (MTBF) |
61.42 years |
|
Mean time to repair (MTTR) |
2 hours |
Compare to Similar Items
Table?2?shows the comparison.
|
Product model |
S6720-16X-LI-16S-AC |
S6720-26Q-LI-24S-AC |
S6720-32X-LI-32S-AC |
|
Switching Capacity |
1.28 Tbit/s |
1.28 Tbit/s |
1.28 Tbit/s |
|
Forwarding Performance |
240 Mpps |
240 Mpps |
240 Mpps |
|
Fixed Ports |
16 x 10 GE SFP+ ports |
24 x 10 GE SFP+ ports |
32 x 10 GE SFP+ ports |
|
MAC Address Table |
32K MAC address entries |
||
|
VLAN Features |
4K VLANs |
||
|
IPv4 Routing |
Static routing, RIP, and OSPF |
||
|
Interoperability |
VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) |
||
Before Purchasing
Do you have any question about the S6720-32X-LI-32S-AC ?
Contact us – Email Live Chat or [email protected].
S6720-32X-LI-32S-AC Datasheet
S6720-32X-LI-32S-AC Specification |
|
|
Item |
Description |
|
Memory (RAM) |
1 GB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
42.8 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
NA |
|
Power supply surge protection |
¡À6 kV in differential mode, ¡À 6 kV in common mode |
|
Dimensions (H x W x D) |
|
|
Stack ports |
Any 10GE SFP+ ports (a maximum of 16 physical ports) |
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
108.5 W |
|
Typical power consumption (30% of traffic load, tested according to ATIS standard) |
71.8 W |
|
Operating temperature |
0¡ãC to 45¡ãC (32¡ãF to 113¡ãF) at an altitude of 0-1800 m (0-5906 ft.) |
|
Storage temperature |
-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
|
Noise under normal temperature (27¡ãC, sound power) |
< 46.4 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
