Product Model: S6720-32C-SI-AC

Retail Price: US$4,241.00

Email Us To Get Special Price Today: [email protected]

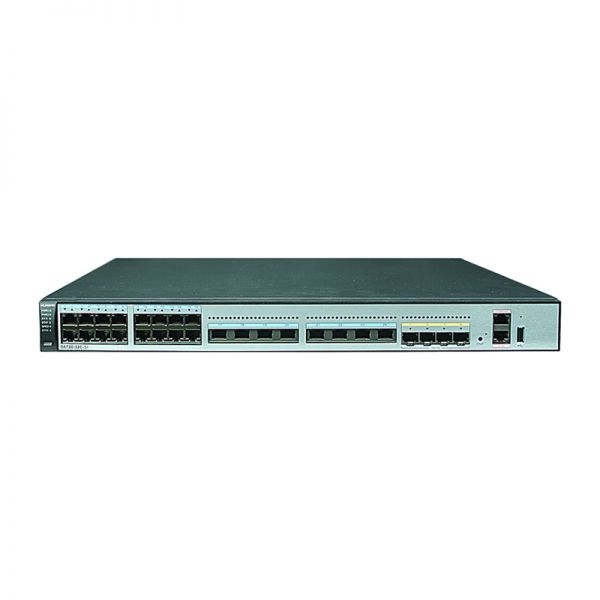

Huawei S6720-32C-SI-AC is the Huawei S6720-SI series switch S6720-32C-SI Bundle, providing 24 Ethernet 100M/1/2.5/5/10G ports, 4 10 Gig SFP+, 1 interface slot and 150W AC power supply. Huawei S6720-SI series switches are Huawei-developed next-generation multigigabit 10GE fixed switches. The S6720-SI can provide high-speed wireless access, and access for 10GE servers in data centers or function as access/aggregation switches on a campus network. The S6720-SI is one of the multigigabit fixed switches with the highest performance in the industry, providing line-rate multigigabit 100M/1G/2.5G/5G/10G access ports and 40GE uplink ports. It can be used to provide high-speed access for APs and 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, S6720-SI provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.

Quick Spec

Table 1 shows the quick spec.

Model	S6720-32C-SI-AC
Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+
Extended Slot	One extended slot
Power	Double pluggable power supplies, AC power supply
Forwarding performance	240 Mpps
Switching capacity	2.56 Tbit/s
Dimensions (W x D x H)	442 ¡Á 420 ¡Á 44.4 mm

Product Details

Figure 1 shows the front panel.

Note:

¢Ù	Twenty-four 100M/1000M/2.5G/5G/10G BASE-T ports (MultiGE port)
¢Ú	Four 10GE SFP+ ports
¢Û	PNP button
¢Ü	ETH management port
¢Ý	USB port
¢Þ	One console port

Note: There are Ground screw, ESN label, Rear card slot, Fan slot Power module slot 1 and 2 on the back panel.

The Modules

Table 2 shows the recommended products.

Model	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
eSFP-GE-ZX100-SM1550	eSFP, GE, Single-mode Module (1550nm, 100km, LC)
SFP-GE-LX-SM1310-BIDI	BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-LX-SM1490-BIDI	BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km
SFP-GE-ZBXD1	Huawei Optical Transceiver SFP-GE-ZBXD1, eSFP, GE, BIDI Single-mode Module (1570nm (Tx)/1490nm (Rx), 80km, LC)
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
SFP-10G-ILR	Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC)
SFP-10G-ER-1310	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC)
HUAWEI?SFP-10G-ZR	Huawei 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC)

Compare to Similar Item

Table 3 shows the comparison.

Model	S6720-32C-SI-AC	S6720S-26Q-SI-24S-AC
Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+	24 x 10 GE SFP+, uplink 2 x 40 GE QSFP+
Extended Slot	One extended slot	N/A
Power	Double pluggable power supplies, AC power supply	Double pluggable power supplies, AC power supply
Forwarding performance	240 Mpps	240 Mpps
Switching capacity	2.56 Tbit/s	2.56 Tbit/s

Before Purchasing

Do you have any question about the S6720-32C-SI-AC

Specification

S6720-32C-SI-AC Datasheet

S6720-32C-SI-AC Specification
Ports	24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+
Extended Slot	One extended slot
Power	Double pluggable power supplies, AC power supply
Forwarding performance	240 Mpps
Switching capacity	2.56 Tbit/s
Dimensions (W x D x H)	442 × 420 × 44.4 mm
MAC address table	32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN features	4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLAN Basic QinQ and selective QinQ
IPv4 routing	Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policies
IPv6 routing	Static routing RIPng OSPFv3 BGP4+ ISISv6
IPv6 features	Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay MLDv1 and MLDv2 PIM-DM for IPv6 PIM-SM for IPv6 6 Over 4 tunnels
Multicast	IGMP V1/V2/V3 snooping Fast leave IGMP snooping proxy MLD snooping Port-based multicast traffic suppression Inter-VLAN multicast replication Controllable multicast IGMP v1/v2/v3 PIM-SM and PIM-DM Multicast Source Discovery Protocol (MSDP) Multicast routing policies
Typical power consumption	93W (without card)
Maximum power consumption (W)	117.62W (without card)
