Product Model: S5735-L8T4S-A1
Retail Price: US$211.00
Email Us To Get Special Price Today: [email protected]

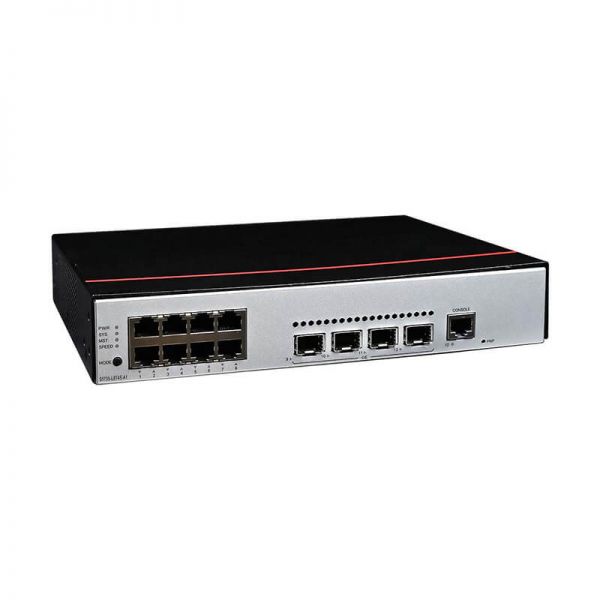

The Huawei S5735-L8T4S-A1 is part of the renowned S5700 Series Switches, designed to provide reliable and high-performance networking solutions. Engineered for versatility, this switch supports a wide range of functions, including Layer 3 routing, voice and video traffic management, and enterprise-class security. Ideal for medium to large-scale campus networks, the S5735-L8T4S-A1 ensures smooth, uninterrupted network service essential for modern business operations.
Quick Spec
| Parameter | Specification |
|---|---|
| Model | S5735-L8T4S-A1 |
| Series | S5700 |
| Fixed Ports | 8 x 10/100/1000Base-T, 4 x 10G SFP+ |
| Forwarding Performance | 36 Mpps |
| Switching Capacity | 336 Gbps |
Product Datasheet
- ¡ñ High-density Ethernet switching capabilities, facilitating efficient network traffic management
- ¡ñ Flexible deployment options that support both three-tiered and simplified networks
- ¡ñ Comprehensive security features including hardware-based IPv6 and MPLS capabilities
- ¡ñ Energy-saving design that reduces overall operational costs
- ¡ñ Easy operation and maintenance with an intelligent management system
Product Applications
Given its advanced features and specifications, the Huawei S5735-L8T4S-A1 is perfectly suited for the following application scenarios:
¡ñ Building reliable, high-capacity campus networks and data center access networks.
¡ñ Deploying as an access or aggregation switch in enterprise LAN architectures.
¡ñ Serving media and entertainment industries where high data throughput and availability are crucial.
Supported Options
| Accessory | Model |
|---|---|
| Power Supply | PWR-350W-AC |
| Optical Transceivers | eSFP, 10G SFP+ |
| Rack Mount Kit | RACK-1RU |
Compare to Similar Items
| Model | Difference |
|---|---|
| S5730-L12T4S | Additional 4 Ethernet Ports |
| S5735-S24T4X | Higher Switching Capacity |
| S5720-32X-EI-AC | Different Series with Advanced EI features |
Before Purchasing
For further details about the Huawei S5735-L8T4S-A1 and to inquire about pricing, please contact us through Live Chat or email us at [email protected]. Our team is ready to assist you with personalized solutions tailored to your specific networking needs.
S5735-L8T4S-A1 Datasheet
S5735-L8T4S-A1 Specifications |
|
| Product Series | Huawei S5700 Series Switches |
| Model | S5735-L8T4S-A1 |
| Fixed Ports | 8 x 10/100/1,000 Base-T Ethernet ports, 4 x Gig SFP |
| Switching Capacity | 58 Gbps |
| Forwarding Performance | 42 Mpps |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Power Supply | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz |
| Power Consumption | Maximum power consumption: < 20W |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Form Factor | 1 U height, rack mountable |
| MAC Address Table | 16K MAC address entries |
| Jumbo Frame | Supports up to 9216 bytes frame |
| Quality of Service (QoS) | Supports advanced QoS features, including SP, WRR, DRR, AQM, and traffic shaping |
| Security Features | AAA, Secure Shell (SSH), Secure Sockets Layer (SSL), IEEE 802.1X, and more |
| Management and Maintenance | Supports SNMP v1/v2c/v3, RMON, Web Management, and Telnet |
| Reliability Technologies | Supports VRRP, BFD, and Ethernet OAM |
| Layer 3 Features | Supports static routing, RIPv1/v2, OSPF, IS-IS, and BGP |
| IPv6 Support | Full IPv6 functionality, including ICMPv6, PMTU, ICMPv6 redirect, OSPFv3, BGP4+, and IPv6 ACLs |
| Operating Temperature | 0¡ãC to 50¡ãC |
| Humidity Range | 5% to 95% (non-condensing) |
| Software Version | Supports V200R010C00 and later |
