Product Model: S5731S-H24T4S-A
Retail Price: US$664.00
Email Us To Get Special Price Today: [email protected]

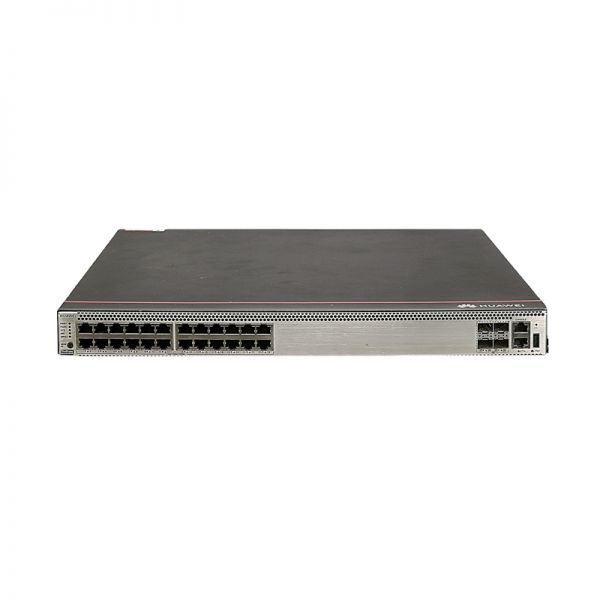

S5731S-H24T4S-A is the Huawei S5731 switch, providing 24 ¡Á 10/100/1000BASE-T ports, 4 ¡Á GE SFP+, and 1 ¡Á 150W AC Power Supply. It¡¯s a Distribution model.
Quick Spec
Table 1 shows the quick spec.
|
Model |
S5731S-H24T4S-A |
|
Downlink Ports |
Twenty-four 10/100/1000BASE-T ports |
|
Uplink Ports |
Four 1000BASE-X ports |
|
Memory (RAM) |
4 GB |
|
Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
|
Stack ports |
1000BASE-X?ports on the front panel |
|
Part number |
02353DJE 02353DJE-001 |
Product Details
Figure 1 shows the front panel of S5731S-H24T4S-A.
Note:
|
¢Ù |
Twenty-four 10/100/1000BASE-T ports |
¢Ü |
One USB port |
|
¢Ú |
Four 1000BASE-X ports |
¢Ý |
One ETH management port |
|
¢Û |
One console port |
? |
? |
Figure 2 shows the back panel of S5731S-H24T4S-A.
Note:
|
¢Ù |
Ground screw |
¢Ü |
Power module slot 1 |
|
¢Ú |
Fan module slot 1 |
¢Ý |
Power module slot 2 |
|
¢Û |
Fan module slot 2 |
? |
? |
Supported Transceivers
Table 2 shows the recommended models.
|
Model |
Description |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
ESFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Model |
S5735S-L48P4X-A |
S5731S-H24T4S-A |
|
Fixed Ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x 10/100/1000BASE-T ports, 4 x 1000BASE-X ports |
|
PoE+ |
Supported |
NOT Supported |
Before Purchasing
Do you have any question about the S5731S-H24T4S-A
Contact us – Email Live Chat or [email protected].
S5731S-H24T4S-A Datasheet
S5731S-H24T4S-A Specification |
|
|
Downlink Ports |
Twenty-four 10/100/1000BASE-T ports |
|
Uplink Ports |
Four 1000BASE-X ports |
|
Memory (RAM) |
4 GB |
|
Flash |
1 GB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
57.73 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
|
Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
|
Stack ports |
1000BASE-X ports on the front panel |
|
RTC |
Supported |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
|
Maximum voltage range |
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
91 W |
|
Typical power consumption (30% of traffic load, tested according to ATIS standard) |
70 W |
|
Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 57.5 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
EMC certification Safety certification Manufacturing certification |
|
Part number |
02353DJE 02353DJE-001 |
