Product Model: S5731-H48T4XC-B
Retail Price: US$11,504.00
Email Us To Get Special Price Today: [email protected]

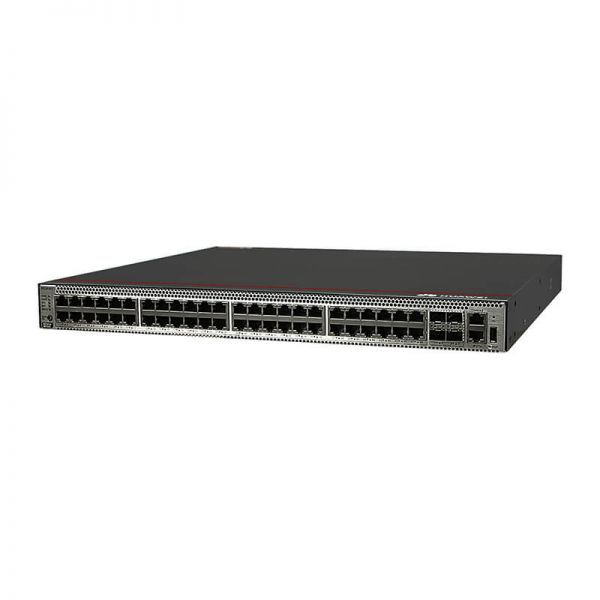

The Huawei S5731-H48T4XC-B switch is a pivotal component of the renowned Huawei S5700 Series, designed to cater to next-generation enterprise network demands. Offering a blend of high performance, robust security, and versatile services, it embodies an ideal choice for medium to large-sized campus networks and data center aggregation.
Quick Spec
| Parameter | Detail |
|---|---|
| Model | S5731-H48T4XC-B |
| Series | Huawei S5700 |
| Ports | 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 132 Mpps |
Product Datasheet
- ● Comprehensive security features including Secure Boot, Secure Sockets Layer (SSL), and hardware-based IEEE 802.1X.
- ● Advanced Layer 3 features, supporting OSPF, IS-IS, BGP, and VRRP.
- ● Intelligent management through Simple Network Management Protocol (SNMP), Command-Line Interface (CLI), and Huawei eSight.
- ● Energy-saving technologies with intelligent power management.
- ● iStack clustering for simplified management and configuration.
Product Applications
1. Campus Network: Ideal for creating a reliable, high-speed campus network backbone, ensuring smooth operation of multimedia applications and video conferencing.
2. Data Center Aggregation: Perfect for data center aggregation layers, supporting high-density gigabit and 10-gigabit interfaces for uplink connections.
3. SME Networking: Offers small to medium enterprises a flexible and efficient solution to accommodate their growing network demands without significant cost.
Supported Options
| Accessory | Model |
|---|---|
| Power Supply Unit | PWR-600-AC |
| Stacking Module | S5700-SM |
| Optical Transceivers | SFP-10G-USR |
Compare to Similar Items
| Model | Difference |
|---|---|
| S5730-H48T4XC | Enhanced switching capacity |
| S5720-56C-PWR-EI-AC | Included power over Ethernet (PoE) feature |
| S5710-52C-EI | Different form factor and lower port density |
Before Purchasing on the Huawei S5731-H48T4XC-B switch for your business. Our product experts are on hand to provide detailed insights and solutions tailored to your specific requirements. Contact us through Live Chat or [email protected] for further information about the product and its pricing.
S5731-H48T4XC-B Datasheet
S5731-H48T4XC-B Specifications |
|
| Brand | Huawei |
| Product Series | S5700 |
| Model Number | S5731-H48T4XC-B |
| Device Type | Switch – 48 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 192 Gbps Forwarding performance: 36 Mpps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing, RIP-1, RIP-2, RIPng |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Power Over Ethernet (PoE) | PoE+ |
| VLAN Support | Yes |
| Quality of Service (QoS) | Advanced QoS features |
| Management | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliance Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP) |
| Environmental Parameters | Operating temperature: 0??C to 45??C Storage temperature: -40??C to +70??C |
| Power Supply | Included |
