Product Model: S5710-52C-PWR-EI-AC
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Huawei S5710-52C-PWR-EI-AC is one of the S5700 Series Switches.S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers.
Quick Specs

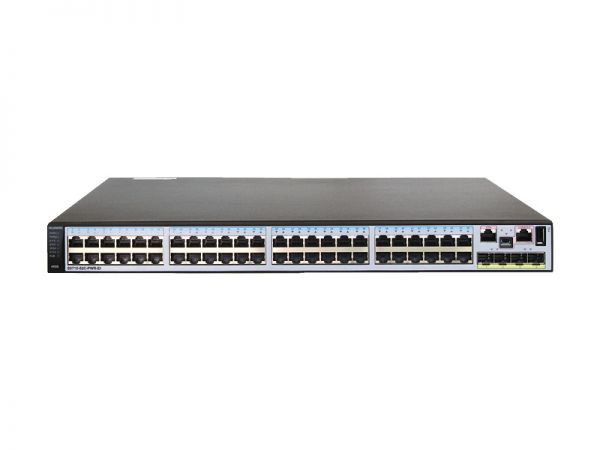

Figure 1 shows the appearance of S5710-52C-PWR-EI-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5710-52C-PWR-EI-AC |
|
Extended Slots |
two extended slots that support uplink sub-cards |
|
Subcards supported |
?2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard |
|
Switching Capacity |
416 Gbit/s |
|
Forwarding Performance |
192 Mpps |
|
Fixed Interfaces |
48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports |
|
PoE Available |
PoE+ |
|
Power Supply |
Double hot-swappable AC power supplies (A 580W AC power unit is included in S5710-52C-PWR-EI-AC model) |
|
Memory (RAM) |
512 MB |
|
Flash |
200 MB |
|
Dimensions (W x D x H) |
442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.75 in.) |
|
Weight |
Empty: ¡Ü 6 kg (13.23 lb) Fully loaded: ¡Ü 10 kg (22.05 lb) |
Product Details
Figure 2 shows the front panel of S5710-52C-PWR-EI-AC.
Note:
|
¢Ù |
Forty-eight PoE+ 10/100/1000BASE-T ports |
|
¢Ú |
Four 10GE SFP+ ports |
|
¢Û |
ETH management port |
|
¢Ü |
One mini USB port |
|
¢Ý |
One console port |
|
¢Þ |
One USB port |
Figure 3 shows the back panel of S5710-52C-PWR-EI-AC.
Note:
|
¢Ù |
Ground screw |
|
¢Ú |
Rear card slot 1 |
|
¢Û |
Rear card slot 2 |
|
¢Ü |
ESN label |
|
¢Ý |
Power module slot 2 |
|
¢Þ |
Power module slot 1 |
- ● ¡¤You can draw ESN label out to view the ESN and MAC address of the switch.
The Modules, Cards
Table 2 shows the recommended elements for the S5710-52C-PWR-EI-AC.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
10G-SFP+ Optical Transceiver |
|
|
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
OMXD30000 |
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
GE Copper Transceiver |
|
|
SFP-1000BaseT |
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
10GE Interface Card |
|
|
ES5D21X02S00 |
2 10 Gig SFP+ interface card (used in S5710EI series) |
|
GE Interface Card |
|
|
ES5D21G08T00 ? |
8 Ethernet 10/100/1000 ports interface card(used in S5710EI series) |
|
ES5D21G08S00 |
8 Gig SFP interface card(used in S5710EI series) |
Compare to Similar Items
Table 3 shows the comparison of S5710-52C-PWR-EI-AC and S5710-28C-PWR-EI-AC.
|
Product Code |
S5710-52C-PWR-EI-AC |
S5710-28C-PWR-EI-AC |
|
Subcards supported |
?2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard |
2 x 10 GE SFP+ subcard, 8 x 10/100/1,000 BASE-T subcard, and 8 x 1,000 Base-X subcard |
|
Switching Capacity |
416 Gbit/s |
416 Gbit/s? |
|
Forwarding Performance |
192 Mpps |
156 Mpps |
|
Fixed Interfaces |
48 x 10/100/1,000 Base-T ports, 4 x 10 GE SFP+ ports |
24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 Gig SFP+ ports |
|
PoE Available |
PoE+ |
PoE+ |
Before Purchasing
Do you have any?question about?the?S5710-52C-PWR-EI-AC
Contact us – Email Live Chat or [email protected].
S5710-52C-PWR-EI-AC Datasheet
S5710-52C-PWR-EI-AC Specification |
|
|
Fixed port |
48 x 10/100/1000Base-T, 4 × 10GE SFP+ |
|
MAC address table |
IEEE 802.1d compliance |
|
MAC address learning and aging |
|
|
Static, dynamic, and blackhole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
VLAN |
4K VLANs |
|
Guest VLAN and voice VLAN |
|
|
GVRP |
|
|
MUX VLAN |
|
|
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports |
|
|
1:1 and N:1 VLAN Mapping |
|
|
Ring protection |
RRPP ring topology and RRPP multi-instance |
|
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
|
|
SEP |
|
|
STP, RSTP, and MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
BPDU Tunnel |
|
|
Reliability |
Ethernet OAM (IEEE 802.3ah and 802.1ag) |
|
ITU-Y.1731 |
|
|
DLDP |
|
|
LACP |
|
|
MPLS features |
MPLS L3VPN |
|
MPLS L2VPN(VPWS/VPLS) |
|
|
MPLS-TE |
|
|
MPLS QoS |
|
|
Notes: supported by S5710-EI, S5700-HI and S5710-HI |
|
|
IP routing |
Static routing |
|
IPv6 features |
Neighbor Discovery (ND) |
|
Path MTU (PMTU) |
|
|
IPv6 ping, IPv6 tracert, and IPv6 Telnet |
|
|
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
|
|
MLD v1/v2 snooping |
|
|
Multicast |
IGMP v1/v2/v3 snooping and IGMP fast leave |
|
Multicast forwarding in a VLAN and multicast replication between VLANs |
|
|
Multicast load balancing among member ports of a trunk |
|
|
Controllable multicast |
|
|
Port-based multicast traffic statistics |
|
|
QoS/ACL |
Rate limiting on packets sent and received by an interface |
|
Packet redirection |
|
|
Port-based traffic policing and two-rate three-color CAR |
|
|
Eight queues on each port |
|
|
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms |
|
|
WRED (supported by the S5710-EI and S5700-HI) |
|
|
Re-marking of the 802.1p priority and DSCP priority |
|
|
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID |
|
|
Rate limiting in each queue and traffic shaping on ports |
|
|
Security |
User privilege management and password protection |
|
DoS attack defense, ARP attack defense, and ICMP attack defense |
|
|
Binding of the IP address, MAC address, interface, and VLAN |
|
|
Port isolation, port security, and sticky MAC |
|
|
MFF |
|
|
Blackhole MAC address entries |
|
|
Limit on the number of learned MAC addresses |
|
|
802.1x authentication and limit on the number of users on an interface |
|
|
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
|
|
SSH v2.0 |
|
|
Hypertext Transfer Protocol Secure (HTTPS) |
|
|
CPU defense |
|
|
Blacklist and whitelist |
|
|
Access Security |
DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security |
|
Management and maintenance |
Virtual cable test |
|
Port mirroring and RSPAN (remote port mirroring) |
|
|
Remote configuration and maintenance using Telnet |
|
|
SNMP v1/v2c/v3 |
|
|
RMON |
|
|
Web NMS |
|
|
HGMP |
|
|
System logs and alarms of different levels |
|
|
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI) |
|
|
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI) |
|
|
Interoperability |
Supports VBST (Compatible with PVST/PVST+/RPVST) |
|
Supports LNP (Similar to DTP) |
|
|
Supports VCMP (Similar to VTP) |
|
|
Operating environment |
Operating temperature: 0¡æ–50¡æ |
|
Relative humidity: 10%–90% (non-condensing) |
|
|
Input voltage |
AC: |
|
Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
|
|
Maximum voltage range: 90 V to 264 V AC, 47/63 Hz |
|
|
DC: |
|
|
Rated voltage range: –48 V to –60 V, DC |
|
|
Maximum voltage range: –36 V to –72 V DC |
|
|
Note: PoE-support switches do not use DC power supplies. |
|
|
Dimensions (W x D x H) |
442 x 420 x 43.6 mm |
|
Powerconsumption |
< 1043W with two 580W AC supplies(PoE:740W), or <1625W with two 1150W AC supplies(PoE:1440W) |
