Product Model: S5700S-52X-LI-AC
Retail Price: US$1,208.00
Email Us To Get Special Price Today: [email protected]
Huawei S5700 Series Switch, 48 Ethernet 10/100/1000 ports, 4 10 Gig SFP+, AC 110/220V.
Quick Specs

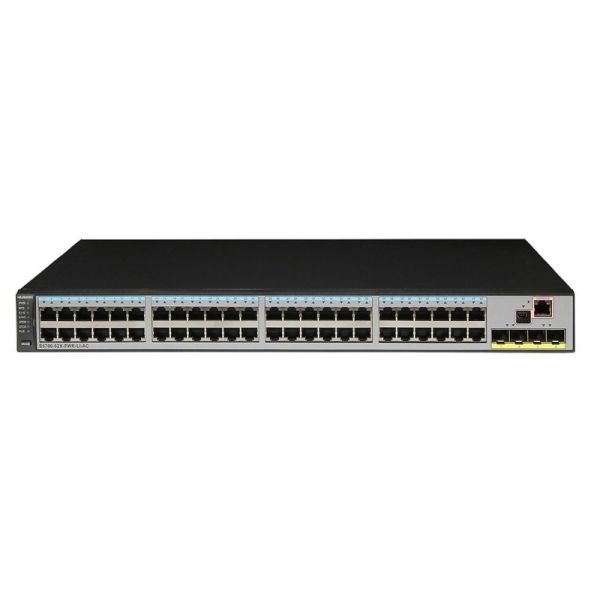

Figure 1 shows the appearance of S5700S-52X-LI-AC
?
Table 1 shows the Quick Specs.
|
Memory (RAM) |
512 MB |
|
Flash |
240 MB |
|
Mean time between failures (MTBF) |
86.64 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ¡À6 kV |
|
Power supply surge protection |
¡À6 kV in differential mode, ¡À6 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
|
Weight (including packaging materials) |
5 kg (11.02 lb) |
|
Stack ports |
Four uplink 10GE SFP+ ports |
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
54.7 W |
|
Typical power consumption (30% of traffic load)
|
34.4 W |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
|
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
Product Details
Figure 2?shows the appearance and?structure of S5700S-52X-LI-AC
?
Note:
|
¢Ù |
Forty-eight 10/100/1000BASE-T ports |
|
¢Ú |
Four 10GE SFP+ ports |
|
¢Û |
One ETH management port |
|
¢Ü |
One console port |
|
¢Ý |
One USB port |
|
¢Þ |
Ground screw |
|
¢ß |
RPS socket |
|
¢à |
Jack for AC terminal locking latch |
|
¢á |
AC socket |
Before Purchasing
Do you have any?question?about?the?S5700S-52X-LI-AC
Contact us – Email Live Chat or [email protected].
S5700S-52X-LI-AC Datasheet
S5700S-52X-LI-AC Apecification |
|
|
Memory (RAM) |
512 MB |
|
Flash |
240 MB |
|
Mean time between failures (MTBF) |
86.64 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
|
Weight (including packaging materials) |
5 kg (11.02 lb) |
|
Stack ports |
Four uplink 10GE SFP+ ports |
|
RTC |
Supported |
|
RPS |
Supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput, full speed of fans) |
54.7 W |
|
Typical power consumption (30% of traffic load)
|
34.4 W |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 50.2 dBA |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
