Product Model: S5700-10P-PWR-LI-AC
Retail Price: US$537.00
Email Us To Get Special Price Today: [email protected]
The Huawei S5700-10P-PWR-LI-AC is simplified gigabit switches with super-flexible, easy-to-manage platform to optimize L3 switching capacity and downstream port bandwidth from 100 Mbit/s to 1 Gbit/s. The additional PoE technology can ensure the safety of power supply while ensuring the normal transmission of data signals to minimize costs. Then its various options include lithium-oxide battery backup, CSFP interfaces, and zero-touch remote maintenance, as well as models customized, meeting specialized requirements of users. Ideal for use as an access or aggregation switch in a campus network, it strives to provide energy-saving and cost-effective gigabit to the desktop solution.
Quick Specs

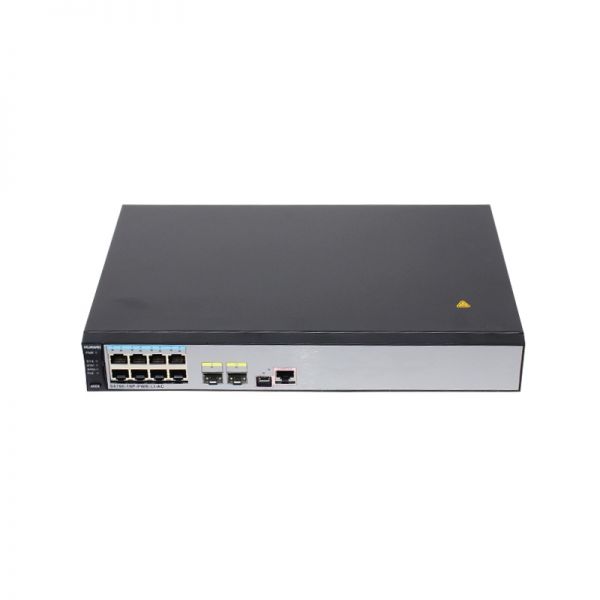

Figure 1 shows the appearance of Huawei S5700-10P-PWR-LI-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-10P-PWR-LI-AC |
|
Ports |
8 GE POE ports, 2 GE SFP ports |
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
MAC Address Table Size |
16 MAC |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
|
Power Device |
AC power supply |
|
Power Consumption Operational |
< 60W |
|
Forwarding Performance |
15 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Dimensions (W x D x H) |
320 mm x 220 mm x 43.6 mm |
|
Package Weight |
3.5kg |
|
PoE |
PoE+ |
Product Details
Figure 2 shows the front panel of Huawei S5700-10P-PWR-LI-AC.
Note:
|
¢Ù |
Eight PoE+ 10/100/1000BASE-T ports |
¢Û |
One mini USB port |
|
¢Ú |
Two 1000BASE-X ports |
¢Ü |
One console port |
Figure 3 shows the back panel of Huawei S5700-10P-PWR-LI-AC.
Note:
|
¢Ù |
Ground screw |
|
¢Ú |
AC socket |
|
¢Û |
Jack for AC terminal locking latch |
*The ground screw is used with a ground cable.
*AC socket is used with an AC power cable.
*The AC terminal locking latch is not delivered with the switch.
Optical Transceivers
Table 2 shows the recommended optical modules.
|
GE-SFP Optical Transceiver |
Description |
|
SFP-1000BaseT |
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
Compare with Similar Item
Table 3 shows the comparison of Huawei S5700-10P-LI-AC and S5700-10P-PWR-LI-AC.
|
Model |
S5700-10P-LI-AC |
S5700-10P-PWR-LI-AC |
|
Fixed Ports |
8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports |
8 x 10/100/1,000 Base-T Ethernet ports, 2 x GE SFP ports |
|
Power Supply |
AC power supply |
AC power supply |
|
PoE |
Not supported |
Supported |
|
Forwarding Performance |
15 Mpps |
15 Mpps |
|
Switching Capacity |
256 Gbit/s |
256 Gbit/s |
Before Purchasing
Do you have any question about the Huawei S5700-10P-PWR-LI-AC switch?
Contact us – Email Live Chat or [email protected].
S5700-10P-PWR-LI-AC Datasheet
S5700-10P-PWR-LI-AC Specification |
|
|
Manufacturer |
Huawei |
|
Manufacturer Part Number |
S5700-10P-PWR-LI-AC |
|
Form Factor |
Fixed, Stackable |
|
Switch Port |
8 GE POE ports, 2 GE SFP ports |
|
Power Over Ethernet (PoE) |
POE+ |
|
Max Number of Stacks |
48Gbps |
|
DRAM Memory |
256 MB |
|
Flash Memory |
32 MB |
|
Performance |
|
|
Forwarding performance |
15 Mpps |
|
MAC address table |
IEEE 802.1d compliance |
|
16 K MAC address entries |
|
|
MAC address learning and aging |
|
|
Static, dynamic, and blackhole MAC address entries |
|
|
Packet filtering based on source MAC addresses |
|
|
VLAN |
4 K VLANs |
|
Reliability |
RRPP ring topology and RRPP multi-instance |
|
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover |
|
|
SEP |
|
|
STP, RSTP, and MSTP |
|
|
BPDU protection, root protection, and loop protection |
|
|
E-Trunk |
|
|
IP routing |
Static routing, ECMP |
|
RIPv1, RIPv2 and RIPng |
|
|
IPv6 features |
Neighbor Discovery (ND) |
|
Path MTU (PMTU) |
|
|
IPv6 ping, IPv6 tracert, and IPv6 Telnet |
|
|
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type |
|
|
MLD v1/v2 snooping |
|
|
6to4 tunnel, ISATAP tunnel, and manually configured tunnel |
|
|
Multicast |
IGMP v1/v2/v3 snooping and IGMP fast leave |
|
Multicast forwarding in a VLAN and multicast replication between VLANs |
|
|
Multicast load balancing among member ports of a trunk |
|
|
Controllable multicast |
|
|
Port-based multicast traffic statistics |
|
|
QoS/ACL |
Rate limiting on packets sent and received by an interface |
|
Packet redirection |
|
|
Port-based traffic policing and two-rate three-color CAR |
|
|
Eight queues on each port |
|
|
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms |
|
|
Re-marking of the 802.1p priority and DSCP priority |
|
|
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination |
|
|
MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID |
|
|
Rate limiting in each queue and traffic shaping on ports |
|
|
Security |
User privilege management and password protection |
|
DoS attack defense, ARP attack defense, and ICMP attack defense |
|
|
Binding of the IP address, MAC address, interface, and VLAN |
|
|
Port isolation, port security, and sticky MAC |
|
|
Blackhole MAC address entries |
|
|
Limit on the number of learned MAC addresses |
|
|
802.1x authentication and limit on the number of users on an interface |
|
|
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC |
|
|
SSH v2.0 |
|
|
Hypertext Transfer Protocol Secure (HTTPS) |
|
|
CPU defense |
|
|
Blacklist and whitelist |
|
|
Management |
|
|
Management and maintenance |
|
|
Power Supply Specifications |
|
|
Power Device |
Power supply |
|
Power Redundancy |
No |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
|
Dimensions / Weight / Miscellaneous |
|
|
Width |
32cm |
|
Depth |
22cm |
|
Height |
43.6cm |
|
Weight |
5.0kg |
|
MTBF |
37years |
|
System Software |
|
|
Software Version |
Standard Version |
|
Manufacturer Warranty |
|
|
Service & Support |
1 year warranty |
