Product Model: S5560-54S-EI
Retail Price: US$1,706.00
Email Us To Get Special Price Today: [email protected]

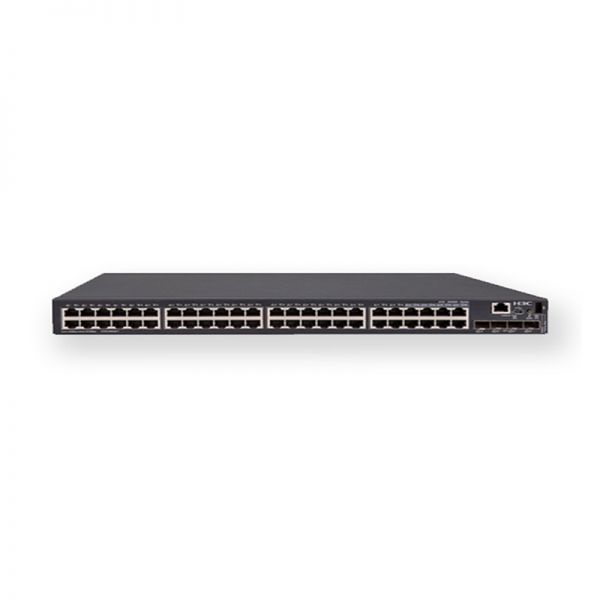

The H3C S5560-54S-EI Switch is a versatile Layer 3 Ethernet switch designed to deliver high performance and stability for enterprise networks. Equipped with 48 10/100/1000BASE-T Ethernet ports, 4 10G/1G BASE-X SFP+ ports, and 2 40G QSFP+ ports, this switch provides robust connectivity and advanced features suitable for a range of networking needs.
Quick Spec
| Brand | H3C |
| Product Name | S5560-54S-EI |
| Ethernet Ports | 48x 10/100/1000BASE-T |
| SFP+ Ports | 4x 10G/1G BASE-X |
| QSFP+ Ports | 2x 40G |
| Layer | Layer 3 Switch |
Product Datasheet
- ● 48 Gigabit Ethernet ports for high-speed connectivity
- ● 4 SFP+ ports supporting both 10G and 1G speeds
- ● 2 high-capacity 40G QSFP+ ports
- ● Advanced Layer 3 routing capabilities
- ● Robust security features and management
Product Applications
- ● Enterprise LAN core layer integration with high-density port requirements
- ● Data center top-of-rack switch for server connectivity
- ● Campus network aggregation for enhanced performance and reliability
Supported Options
| Accessory | Model |
| Power Module | H3C PWR-S5560-AC |
| Transceiver Module | H3C SFP-10G-SR |
| Stacking Cable | H3C SC-40G-QSFP+ |
Compare to Similar Items
| Model | Difference |
| H3C S5560-34S-EI | 34 ports instead of 48 |
| H3C S5130S-28P-EI | Only 1G Ethernet ports, no 10G or 40G options |
| H3C S6800-2C | Designed primarily for core switch roles with more high-capacity ports |
Before Purchasing
Check H3C S5560-54S-EI price and S5560-54S-EI datasheet, buy H3C S5560 series with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or [email protected].
Specification
S5560-54S-EI Datasheet
S5560-54S-EI Specifications | |
| Brand | H3C |
| Model | S5560-54S-EI |
| Ethernet Ports | 48 x 10/100/1000BASE-T |
| SFP+ Ports | 4 x 10G/1G BASE-X |
| QSFP+ Ports | 2 x 40G |
| Layer | Layer 3 |
| Switch Fabric Capacity | 2.56 Tbps |
| Forwarding Rate | 1,440 Mpps |
| VLAN IDs | 4,094 |
| MAC Address Table Size | 65,536 entries |
| Operating Temperature | 0??C to 45??C |
| Storage Temperature | -40??C to 70??C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Power Supply | AC 100-240V |
| Dimensions (W x D x H) | 440 mm x 310 mm x 44 mm |
| Power Consumption | ?? 150W |
| MTBF | > 200,000 hours |
| Stacking | Supported |
| Management | CLI, Web, SNMP, RMON |
| QoS Features | Traffic classification, traffic policing, traffic shaping, congestion management |
| Security Features | Port security, DHCP snooping, IP source guard, ARP detection |
