Product Model: S5320-56C-EI-48S-AC
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Huawei S5300 Series Switch S5320-56C-EI-48S-AC 48 Gigabit Ethernet SFP,4 10 Gig SFP+, with 1 interface slot, with 150W AC power supply, stackable, Enhanced layer 3 feature, 162 Mpps Packet forwarding rate.
Quick Specs

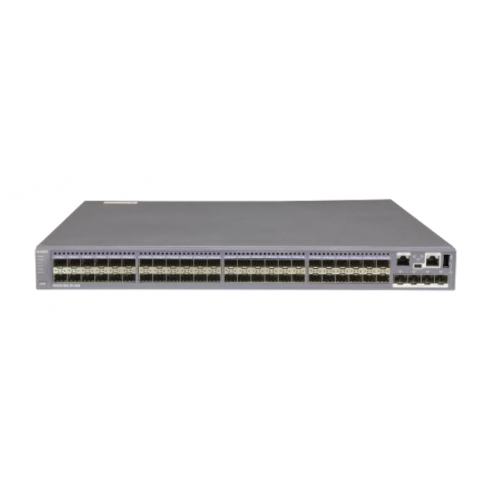

Figure 1 shows the appearance of S5320-56C-EI-48S-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5320-56C-EI-48S-AC |
|
Part Number |
02359615 |
|
Description |
S5320-56C-EI-48S-AC(48 Gig SFP,4 10 Gig SFP+, with 1 interface slot, with 150W AC power supply) |
|
Memory (RAM) |
2 GB |
|
Flash |
340 MB |
|
Net Dimension(D*W*H mm) |
420*442*43 |
|
Dimensions (W x D x H) |
442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) |
|
Weight |
Empty: ¡Ü 8 kg (17.64 lb) Fully loaded: ¡Ü 12 kg (26.46 lb) |
|
Stack ports |
Ports on the 2-port QSFP+ rear stack card |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Maximum power consumption (100% throughput, full speed of fans) |
104 W |
Product Details
Figure 2 shows the front panel of S5320-56C-EI-48S-AC.
Note:
|
¢Ù |
Forty-eight 100/1000BASE-X ports |
|
¢Ú |
Four 10GE SFP+ ports |
|
¢Û |
ETH management port |
|
¢Ü |
One mini USB port |
|
¢Ý |
One console port |
|
¢Þ |
One USB port |
Figure 3 shows the back panel of S5320-56C-EI-48S-AC.
Note:
|
¢Ù |
Ground screw |
|
¢Ú |
Rear card slot |
|
¢Û |
Fan slot |
|
¢Ü |
Power module slot 2 |
|
¢Ý |
Power module slot 1 |
Compare to Similar Items
Table 2 shows the comparison of S5320-32C-HI-24S-AC, S5320-36C-EI-DC and S5320-56C-EI-48S-AC.
|
Product Code |
S5320-32C-HI-24S-AC |
S5320-36C-EI-DC |
S5320-56C-EI-48S-AC |
|
Memory (RAM) |
4 GB |
2 GB |
2 GB |
|
Flash |
400 MB |
340 MB |
340 MB |
|
Stack ports |
Four fixed 10GE SFP+ ports on the front panel or ports on the 4-port 10GE SFP+ rear interface card |
Ports on the 2-port QSFP+ rear stack card |
Ports on the 2-port QSFP+ rear stack card |
|
Maximum power consumption (100% throughput, full speed of fans) |
172.7 W |
75.8 W |
104 W |
Before Purchasing
Do you have any question about the S5320-56C-EI-48S-AC?
Contact us – Email Live Chat or [email protected].
S5320-56C-EI-48S-AC Datasheet
S5320-56C-EI-48S-AC specification |
|
|
Item |
S5320-56C-EI-48S-AC |
|
Memory (RAM) |
2 GB |
|
Flash |
340 MB |
|
Mean time between failures (MTBF) |
73.91 years when no card is configured; 68.42 years when a 2-port 10GE SFP+ interface card is configured; 66.63 years when a 2-port 10GE RJ45 interface card is configured; 66.77 years when a stack card is configured |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
NA |
|
Power supply surge protection |
Using AC power modules: ¡À6 kV in differential mode, ¡À6 kV in common mode Using DC power modules: ¡À1 kV in differential mode, ¡À2 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) |
|
Weight |
Empty: ¡Ü 8 kg (17.64 lb) Fully loaded: ¡Ü 12 kg (26.46 lb) |
|
Stack ports |
Ports on the 2-port QSFP+ rear stack card |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
104 W |
|
Operating temperature |
0¡ãC to 45¡ãC (32¡ãF to 113¡ãF) at an altitude of 0-1800 m (0-5096 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1¡ãC (1.8¡ãF) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
|
Noise under normal temperature (27¡ãC, sound power) |
< 51.2 dBA |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
AC power modules configured: 0-5000 m (0-16404 ft.) DC power modules configured: 0-2000 m (0-6562 ft.) |
|
Certification |
EMC certification Safety certification Manufacturing certification |
