Product Model: S5320-32X-EI-24S-DC

Retail Price: Price expired

Email Us To Get Special Price Today: [email protected]

Huawei S5300 Series Switch S5320-32X-EI-24S-DC 24 Gigabit Ethernet SFP, 4 Gigabit Ethernet ports , 4 10 Gig SFP+,DC -48V, front access, stackable, Enhanced layer 3 feature, 102 Mpps Packet forwarding rate.

Quick Specs

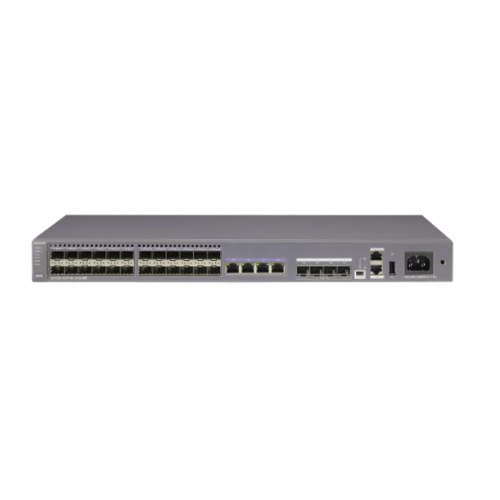

Figure 1 shows the appearance of S5320-32X-EI-24S-DC.

Table 1 shows the Quick Specs.

Product Code	S5320-32X-EI-24S-DC
Front power input	Yes
Extended slot	NA
Fixed ports	24×100/1000Base-X SFP ports, 4×10/100/1000Base-T Ethernet ports, and 4 10G SFP+ ports
RPS	Yes
Packet forwarding rate	102 Mpps
Mean time between failures (MTBF)	82.54 years
Memory	2 GB
Flash	340 MB
Available Version	V200R007C00 and later versions
Input voltage	DC: Rated voltage range: ¨C48 V to ¨C60 V DC Maximum voltage range: ¨C36 V to ¨C72 V DC
Maximum power consumption (100% throughput, full speed of fans)	58.9 W
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
Weight	Fully loaded ¡Ü 12 kg Empty chassis ¡Ü 8 kg

Product Details

Figure 2 shows the front panel of S5320-32X-EI-24S-DC.

Note:

¢Ù	Twenty-four 100/1000BASE-X Ethernet optical ports Applicable modules: ¡ñ FE optical module ¡ñ GE optical module ¡ñ GE-CWDM optical module ¡ñ GE copper module
¢Ú	Four 10/100/1000BASE-T Ethernet electrical ports
¢Û	Four 10GE SFP+ Ethernet optical ports Applicable modules and cables: ¡ñ GE optical module ¡ñ GE-CWDM optical module ¡ñ GE-DWDM optical module ¡ñ GE SFP copper module ¡ñ 10GE SFP+ optical module ¡ñ 10GE-CWDM optical module (applicable in V200R005C00 and later versions) ¡ñ 1 m, 3 m, 10 m SFP+ copper cables ¡ñ 3 m, 10 m AOC cables
¢Ü	One Mini USB port
¢Ý	One console port
¢Þ	One ETH management port
¢ß	One USB port
¢à	DC power socket NOTE: It is used with a DC power cable.

Figure 3 shows the back panel of S5320-32X-EI-24S-DC.

Note:

¢Ù

Ground screw

NOTE: It is used with a ground cable.

¢Ú

Two QSFP+ stack optical ports

Applicable modules and cables:

¡ñ QSFP+ optical module (only QSFP-40G-SR4 and QSFP-40G-iSR4 supported)
¡ñ 1 m, 3 m, 5 m QSFP+ copper cables

¢Û

RPS socket

NOTE£ºIt is used with an RPS cable, which is not hot swappable.

The Modules

Table 2 shows the recommended elements for the S5320-32X-EI-24S-DC.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)
eSFP-FE-LX-SM1310	Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC)
GE Copper Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45)

Compare to Similar Items

Table 3 shows the comparison of S5320-32X-EI-24S-DC and S5320-36C-EI-28S-AC.

Product Code	S5320-32X-EI-24S-DC	S5320-36C-EI-28S-AC
Packet forwarding rate	102 Mpps	132 Mpps
Fixed ports	24×100/1000Base-X SFP ports, 4×10/100/1000Base-T Ethernet ports, and 4 10G SFP+ ports	28×100/1000Base-X SFP ports, 4x combo 10/100/1000BaseT Ethernet ports, and 4x10G SFP+ ports
Extended slot	NA	One extended slot that supports an uplink interface card or private stack card
Front power input	Yes	No
Mean time between failures (MTBF)	82.54 years	85.45 years without card; 78.2 years when a 2x10GE SFP+ card is configured; 75.87 years when a 2x10GE RJ45 card is configured; 76.05 years when a stack card is configured
Memory	2 GB	2 GB
Flash	340 MB	340 MB
Input voltage	DC: Rated voltage range: ¨C48 V to ¨C60 V DC Maximum voltage range: ¨C36 V to ¨C72 V DC	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 to 264 V AC, 47/63 Hz
Maximum power consumption (100% throughput, full speed of fans)	58.9 W	83.9 W

Before Purchasing

Do you have any question about the S5320-32X-EI-24S-DC?

Specification

S5320-32X-EI-24S-DC Datasheet

S5320-32X-EI-24S-DC Specification

Fixed Ports

24 ¡Á 100/1000Base-X SFP, 4 ¡Á10/100/1000Base-T, 4¡Á10 Gig SFP+

Extended slot

MAC Address Table

IEEE 802.1d

64K MAC address entries

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN Features

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN mapping

VLAN-based transparent transmission of protocol packets

Jumbo frame

12K

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover

Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)

VLAN-based Spanning Tree (working with PVST/PVST+/RPVST)

BPDU protection, root protection, and loop protection

BPDU tunnel

IP routing

Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing

IPv6 features

Neighbor Discovery (ND)

Path maximum transmission unit (PMTU)

IPv6 Ping, IPv6 Tracert, and IPv6 Telnet

6 to4 tunnel, ISATAP tunnel, and manually configured tunnel

ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types

Multicast Listener Discovery (MLD) v1/v2 snooping

Multicast forwarding

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load splitting among trunk member ports

Controllable multicast

Layer 2 multicast control

Port-based multicast traffic statistics collection

IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)

Multicast Source Discovery Protocol (MSDP)

QoS/ACL

Inbound and outbound traffic rate limiting on a port

Packet redirection

Broadcast storm control

Port-based traffic policing and two-rate and three-color CAR

Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR),

strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms

Weighted random early detection (WRED)

Re-marking of the 802.1p priority and DSCP value of packets

Packet filtering based on Layer 2 to Layer 4 information, including source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs

Per queue rate limiting and interface traffic shaping

1:1,N:1,N:4 port mirroring

VLAN mirroring

Security features

Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface number, and VLAN ID of a user

Port isolation, port security, and sticky MAC

MAC Forced Forwarding (MFF)

Blackhole MAC address entries

Limit on the number of learned MAC addresses

IEEE 802.1x authentication and the limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access security

DHCP Relay

DHCP Server

DHCP Snooping

DHCP Client

DHCP Security

Port aggregation

LACP

Up to 64 trunk groups

Up to 8 member interfaces in each trunk group

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

BFD for BGP/IS-IS/OSPF/static route

Management and Maintenance

iStack

Virtual cable test

SNMPv1/v2/v3

RMON/RMON2

Web-based network management system

System logs and multi-level alarms

sFlow

LLDP/LLDP-MED

SCP (Secure Copy Protocol), TFTP, FTP

Store dual software images and configuration files

802.3az Energy Efficient Ethernet (EEE)

Operating Environment

Operating temperature:

0-1800 m altitude: 0-45¡ãC

1800-5000 m altitude: The operating temperature reduces by 1¡ãC every time the altitude increases by 220 m.

Relative humidity: 5% to 95% (noncondensing)

Input Voltage

DC:

Rated voltage range: ¨C48 V to ¨C60 V DC

Maximum voltage range: ¨C36 V to ¨C72 V DC

Front power input

Yes

Dimensions (W x D x H)

442 x 220 x 43.6

Power Consumption

<58.9W
