Huawei S5300 Series Switch S5300-28P-LI-BAT 24 10/100/1000 Gigabit Ethernet ports , 4 Gig SFP, 1 slot with battery, AC 110/220V, 42 Mpps Forwarding performance, Comprehensive layer 2 features.
Quick Specs

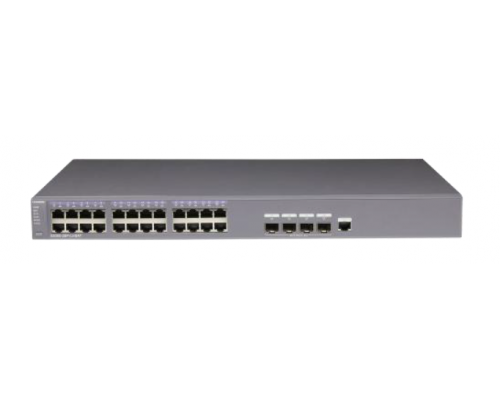

Figure 1 shows the appearance of S5300-28P-LI-BAT.
Table 1 shows the Quick Specs.
|
Product Code |
S5300-28P-LI-BAT |
|
Switching Capacity |
56Gbps |
|
Forwarding Performance |
41.66Mpps |
|
Interfaces |
24*10/100/1000Base-T + 4*100/1000Base-X SFP |
|
Mean time between failures (MTBF) |
57.9 years |
|
Memory |
256 MB |
|
Flash |
200 MB |
|
Available Version |
V200R003C02 and later versions NOTE: This model does not match V200R005C00SPC500, V200R005C01, V200R005C02, V200R005C03, V200R005C05, or V200R008C10. |
|
Power consumption |
23 W |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
|
Weight |
¡Ü 5 kg |
Product Details
Figure 2 shows the front panel of S5300-28P-LI-BAT.
Note:
|
¢Ù |
Twenty-four 10/100/1000BASE-T ports |
|
¢Ú |
Four 1000BASE-X ports |
|
¢Û |
One console port |
Figure 3 shows the back panel of S5300-28P-LI-BAT.
Note:
|
¢Ù |
Ground screw |
|
¢Ú |
AC socket |
|
¢Û |
Jack for AC terminal locking latch |
|
¢Ü |
Battery slot |
The Modules
Table 2 shows the recommended elements for the S5300-28P-LI-BAT.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
|
eSFP-FE-LX-SM1310 |
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
|
S-SFP-FE-LH40-SM1310 |
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
|
GE-SFP Optical Transceiver |
|
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
10G-SFP+ Optical Transceiver |
|
|
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
OMXD30000 |
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
GE Copper Transceiver |
|
|
SFP-1000BaseT |
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45) |
Compare to Similar Items
Table 3 shows the comparison of S5300-28P-LI-BAT, S5300-10P-LI-AC and S5300-28X-LI-24S-AC.
|
Product Code |
S5300-28P-LI-BAT |
S5300-10P-LI-AC |
S5300-28X-LI-24S-AC |
|
Switching capacity |
56Gbps |
26Gbps |
128Gbps |
|
Forwarding Performance |
41.66Mpps |
15Mpps |
95.2Mpps |
|
Interfaces |
24*10/100/1000Base-T + 4*100/1000Base-X SFP |
Eight 10/100/1000 Base-T ports and two GE SFP ports |
Twenty-four 100/1000Base-X ports and four 10GEBase-X SFP+ ports |
|
Mean time between failures (MTBF) |
57.9 years |
44.41 years |
89.91 years |
|
Memory |
256 MB |
256 MB |
256 MB |
|
Flash |
200 MB |
200 MB |
200 MB |
|
Power consumption |
23 W |
<11.5 W |
<54 W |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
250.0 mm x 180.0 mm x 43.6 mm |
442 mm x 220 mm x 43.6 mm |
|
Weight |
¡Ü 5 kg |
¡Ü 5 kg |
¡Ü 5 kg |
Before Purchasing
Do you have any question about the S5300-28P-LI-BAT?
Contact us – Email Live Chat or [email protected].
S5300-28P-LI-BAT Datasheet
S5300-28P-LI-BAT Specification |
|
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
Mean time between failures (MTBF) |
57.9 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
|
Weight |
≤ 5 kg (11.02 lb) |
|
Stack ports |
Not supported |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput, full speed of fans) |
23 W |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
Pluggable modules not configured: -40°C to +70°C (-40°F to +158°F) Power modules configured: -40°C to +70°C (-40°F to +158°F) Lithium battery modules configured: -20°C to +60°C (-4°F to +140°F) Lead-acid battery modules configured: The storage temperature is determined according to the storage environment of lead-acid batteries. |
|
Noise under normal temperature (27°C, sound power) |
< 43.2 dBA |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
DC power modules configured: 0-2000 m (0-6562 ft.) AC power modules or battery modules configured: 0-5000 m (0-16404 ft.) |
|
Certification |
EMC certification Safety certification Manufacturing certification |
