Product Model: S5300-28P-LI-24S-BAT
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Huawei S5300 Series Switch S5300-28P-LI-24S-BAT 28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,1 battery slot,AC 110/220V, Comprehensive layer 2 features.
Quick Specs

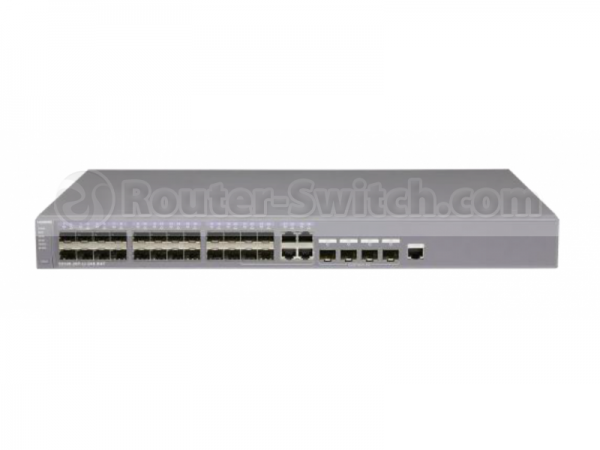

Figure 1 shows the appearance of S5300-28P-LI-24S-BAT.
Table 1 shows the Quick Specs.
|
Product Code |
S5300-28P-LI-24S-BAT |
|
Part Number |
98010515 |
|
Description |
S5300-28P-LI-24S-BAT(28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,1 battery slot,AC 110/220V) |
|
Pack Weight(kg) |
5.68 |
|
Pack Volume(m^3) |
0.028435 |
|
Pack Dimension(D*W*H mm) |
550*470*110 |
|
Typic Power(W) |
34.1 |
Before Purchasing
Do you have any question about the S5300-28P-LI-24S-BAT?
Contact us – Email Live Chat or [email protected].
S5300-28P-LI-24S-BAT Datasheet
S5300-28P-LI-24S-BAT |
|
| Brand | Huawei |
| Model |
S5300-28P-LI-24S-BAT |
| Memory (RAM) | 256 MB |
| Flash | 200 MB |
| Mean Time Between Failures (MTBF) | 45 |
| Mean Time to Repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service Port Surge Protection | Common mode: ¡À6 kV |
| Power Supply Surge Protection | Built-in AC or using AC power modules: ¡À6 kV (differential), ¡À6 kV (common mode) Using DC power modules: ¡À1 kV (differential), ¡À2 kV (common mode) |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |
| Weight (with packaging) | 3.6 kg (7.94 lb) |
| Stack Ports | Not supported |
| RTC | Not supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated Voltage Range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
| Maximum Voltage Range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -36 V DC to -72 V DC |
| Maximum Power Consumption | 34.1 W |
| Typical Power Consumption | 33.4 W |
| Operating Temperature | 0¡ãC to 45¡ãC (32¡ãF to 113¡ãF) |
| Storage Temperature | -40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
| Noise under Normal Temperature (27¡ãC) | < 46.1 dB(A) |
| Relative Humidity | 5% to 95%, non-condensing |
| Operating Altitude | DC power modules configured: 0-2000 m (0-6562 ft.) AC power modules or battery modules configured: 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Part Number | 98010511 |
