S3700-28TP-PWR-SI Huawei S3700 Series Switch Price & Product Datasheet

Spread the love

Product Model: S3700-28TP-PWR-SI

Retail Price: US$884.00

Email Us To Get Special Price Today: [email protected]

Huawei S3700-28TP-PWR-SI is a Layer 3 Ethernet Switch and a managed switch. It supports 24 FE POE ports, 2 GE Combo and 2 GE SFP ports.

Quick Specs

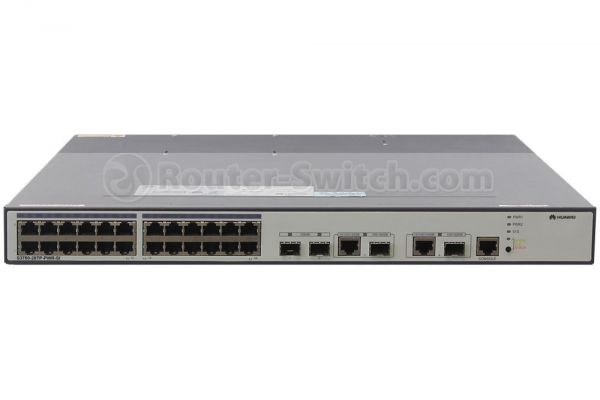

Figure 1 shows the appearance of Huawei S3700-28TP-PWR-SI switch.

Table 1 shows the Quick Specs.

Product Code	S3700-28TP-PWR-SI
Downlink Ports	24 Ethernet 10/100 PoE+ ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Memory (RAM)	128 MB
Flash	16 MB
Stacking	Supported
Stack Connection Mode	Service port connection
Power	Pluggable power module
Heat Dissipation	Forced air cooling
Dimensions (W x D x H)	44.2 cm x 42 cm x 4.36 cm

Product Details

Figure 2 shows the front panel of Huawei S3700-28TP-PWR-SI switch.

Note:

¢Ù	Twenty-four 10/100BASE-TX Ethernet electrical interfaces	¢Û	Two 1000M combo interfaces (10/100/1000BASE-T+100/1000BASE-X)
¢Ú	Two 1000BASE-X Ethernet optical interfaces	¢Ü	One console interface

Figure 3 shows the back panel of Huawei S3700-28TP-PWR-SI switch.

Note:

¢Ù	Ground screw	¢Û	Fan module
¢Ú	ESD jack	¢Ü	Power supply unit slot

The Transceiver

Table 2 shows the recommended optical transceivers.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

Compare to Similar Item

Table 3 shows the comparison of Huawei S3700-28TP-PWR-EI and S3700-28TP-PWR-SI.

Models	S3700-28TP-PWR-EI	S3700-28TP-PWR-SI
Downlink Ports	24 Ethernet 10/100 PoE+ ports	24 Ethernet 10/100 PoE+ ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Software Version	Enhanced	Standard

Before Purchasing

Do you have any question about the Huawei S3700-28TP-PWR-SI switch?

Specification

S3700-28TP-PWR-SI Datasheet

S3700-28TP-PWR-SI Specification
Ports description	24*10/100Base-TX
Ports description	21000Base-X, 2GE Combo
MAC address table	IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLANs, voice VLAN, and super VLAN MUX VLAN and GVRP VLAN assignment based on MAC addresses, protocols, and IP subnets QinQ Selective QinQ 1:1 VLAN mapping N:1 VLAN mapping
Reliability	RRPP (ring topology, intersecting rings, and multi-instance), implementing protection switchover within 50 ms Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) BPDU protection, root protection, and loop protection Smart Ethernet Protection (SEP)
IP routing	Static routing, RIPv1, RIPv2, and ECMP
IPv6 features	Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually configured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
Multicast	1 K multicast groups IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
QoS/ACL	Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering on Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Security	User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 CPU defense Blacklist and whitelist
Surge protection	6KV surge protection capability on service ports (1KV on service ports on PoE devices)
Management and maintenance	iStack MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Dying gasp power-off alarm (S3700-28TP-EI-MC-AC) SNMP v1/v2c/v3 and RMON Web NMS
Operating environment	Operating temperature: 0¡æ–50¡æ(long term); Relative humidity: 10%–90% (non-condensing)
Power supply	AC: Rated voltage range: 100V to 240V AC; 50/60 Hz Maximum voltage range: 90V to 264V AC; 50/60 Hz DC: Rated voltage range: –48V to –60V DC Maximum voltage range: –36V to –72V DC Note: PoE-support switches do not use DC power supplies.
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight	S3700-28TP-PWR-SI<4Kg (without power supply)
Power consumption	S3700-28TP-PWR-SI<818W (PoE: 740W)
