Product Model: S2750-28TP-EI-AC

Retail Price: US$206.00

Email Us To Get Special Price Today: [email protected]

Huawei S2750-28TP-EI-AC switch provides 24 ¡Á 10/100BASE-TX ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP. S2750-EI are the sub-series switches of S2700-EI.

Quick Specs

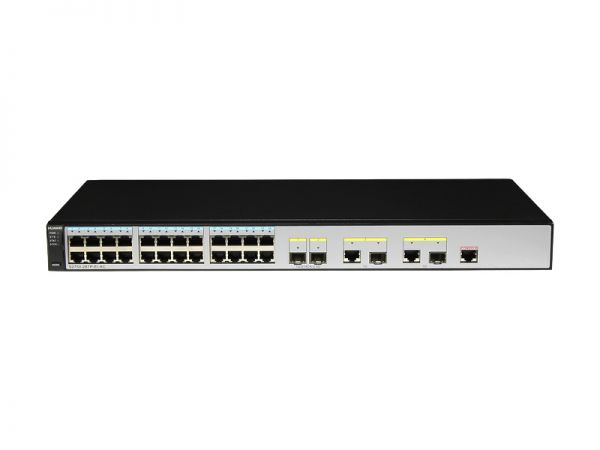

Figure 1 shows the appearance of Huawei S2750-28TP-EI-AC switch.

Table 1 shows the Quick Specs.

Product Code	S2750-28TP-EI-AC
Downlink Ports	24 ¡Á Ethernet 10/100 ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Forwarding Performance	9.6 Mpps
Switching Capacity	64 Gbit/s
Power	AC power supply
Heat Dissipation	Natural Heat Dissipation
Dimensions (W x D x H)	442.0 mm x 310.0 mm x 43.6 mm
Weight (Kg)	4.7 Kg

Product Details

Figure 2 shows the front panel of Huawei S2750-28TP-EI-AC switch.

Note:

¢Ù	24 ¡Á 10/100BASE-TX ports	¢Û	2 ¡Á combo ports (10/100/1000BASE-T + 100/1000BASE-X)
¢Ú	2 ¡Á 1000BASE-X ports	¢Ü	One console port

Figure 3 shows the back looking of Huawei S2750-28TP-EI-AC switch.

Note:

¢Ù	Ground screw
¢Ú	AC socket
¢Û	Jack reserved for AC terminal locking latch

The Transceiver

Table 2 shows the recommended optical transceivers.

Model	Description
FE-SFP Optical Transceiver
SFP-FE-SX-MM1310	Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC)
eSFP-FE-LX-SM1310	Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC)
S-SFP-FE-LH40-SM1310	Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC)
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

Compare to Similar Item

Table 3 shows the comparison of Huawei S2750-28TP-EI-AC and S2750-28TP-PWR-EI-AC.

Models	S2750-28TP -EI-AC	S2750-28TP-PWR-EI-AC
Downlink Ports	24 Ethernet 10/100 ports	24 Ethernet 10/100 PoE+ ports
Uplink Ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Power Supply	AC Power Supply	AC Power Supply
PoE	None	Supported
Version	Enhanced	Enhanced

Before Purchasing

Do you have any question about the Huawei S2750-28TP-EI-AC switch?

Specification

S2750-28TP-EI-AC Datasheet

S2750-28TP-EI-AC Specification
Downlink ports	24 × 10/100Base-TX Ethernet ports
Uplink ports	2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
MAC address	16K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable MAC address learning control which based on ports Blackhole MAC address entries
VLAN feature	4K VLANs, complying with IEEE 802.1Q Port-based VLAN assignment
VLAN feature	MAC address-based assignment Port-based QinQ
QoS	Port-based rate limiting and flow-based rate limiting 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms
QoS	packet-based priority remark and packet redirection
IPv6 feature	IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping.
Multicast	MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance SEP and ERPS (G.8032) Smart Link tree topology and Smart Link multi-instance, implementing millisecond-level protective switchover
Traffic sampling	sFlow
Security & access features	802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard
Security & access features	Multiple authentication methods including AAA authentication, RADIUS authentication, and TACACS+ authentication 802.1x authentication, MAC address authentication, MAC bypass authentication DHCP snooping Port isolation and sticky MAC Packet filtering based on MAC addresses Suppression of multicast, broadcast, and unknown unicast packets Limit on the number of learned MAC addresses CPU defense S2750-EI/S2751-EI:DHCP relay
Surge protection	Surge protection capability of service ports: 6 kV
Management	Stack Easy Operation CLI-based configuration Remote configuration using Telnet SNMP V1/V2/V3 Remote network monitoring SSHv2 Web-based device management
Operating environment	Long-term operating temperature: –5°C to + 50°C Relative humidity: 10% to 90% (non-condensing)
Power	AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
Dimensions (W x D x H)	442 × 220 × 43.6 mm
Weight	S2750-28TP-EI < 3 kg
Power consumption	S2750-28TP-EI< 15.7 W
