Product Model: S2700-52P-EI-AC
Retail Price: US$482.00
Email Us To Get Special Price Today: [email protected]
HUAWEI S2700-52P-EI-AC is the new generation layer 2 intelligence switch. It integrates 48 Fast Ethernet ports with 4 Gigabit Ethernet SFP uplink ports. HUAWEI S2700 uses iStack technology to virtualize multiple switches into a single one to ease user management and configuration and expand the system switching capacity. By utilizing stack features enhances reliability and scalability, moreover, this greatly reduces system operation and maintenance costs.
Quick Specs

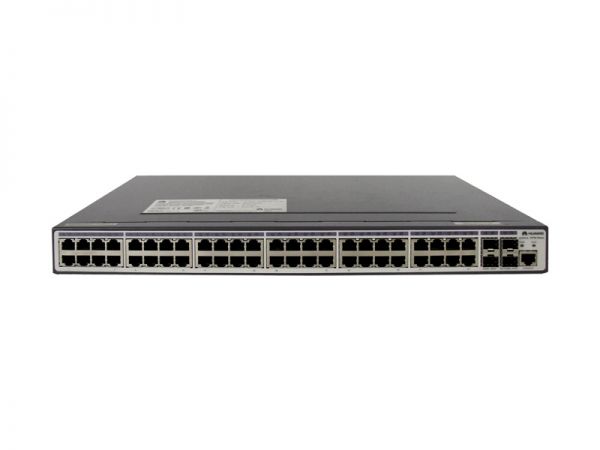

Figure 1 shows the appearance of Huawei S2700-52P-EI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S2700-52P-EI-AC |
|
Downlink Ports |
48 Ethernet 10/100 ports |
|
Uplink Ports |
4 Gb SFP |
|
Forwarding Performance |
13.2 Mpps |
|
Switching Capacity |
32 Gbit/s |
|
Power |
AC power supply |
|
Heat Dissipation |
Built-in fans for intelligent air cooling |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
Product Details
Figure 2 shows the front panel of Huawei S2700-52P-EI-AC switch.
Note:
|
¢Ù |
Forty-eight 10/100BASE-TX ports |
¢Û |
Two 100/1000BASE-X ports |
|
¢Ú |
One console port |
¢Ü |
Two 1000BASE-X ports |
Figure 3 shows the back looking of Huawei S2700-52P-EI-AC switch.
Note:
|
¢Ù |
Ground screw |
|
¢Ú |
Power switch |
|
¢Û |
AC socket |
The Transceiver
Table 3 shows the recommended optical transceivers.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
Compare to Similar Item
Table 3 shows the comparison of Huawei S2700-52P-EI-AC and S2700-52P-PWR-EI.
|
Models |
S2700-52P-EI-AC |
S2700-52P-PWR-EI |
|
Downlink Ports |
48 Ethernet 10/100 ports |
48 Ethernet 10/100 ports |
|
Uplink Ports |
4 Gb SFP |
4 Gb SFP |
|
Power Supply |
AC |
AC |
|
PoE Support |
None |
PoE+ |
Before Purchasing
Do you have any question about the Huawei S2700-52P-EI-AC switch?
Contact us – Email Live Chat or [email protected].
S2700-52P-EI-AC Datasheet
S2700-52P-EI-AC Specification |
|
|
Product Description |
Huawei Quidway S2700-52P-EI-AC – switch – 48 ports – Managed – desktop |
|
Device Type |
Switch – 48 ports – Managed – stackable |
|
Enclosure Type |
Desktop |
|
Interfaces |
Gigabit Ethernet |
|
Subtype |
Gigabit Ethernet |
|
Ports |
48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
|
Performance |
Forwarding performance : 13.2 Mpps |
|
Capacity |
Virtual interfaces (VLANs) : 4000 |
|
MAC Address Table Size |
8K entries |
|
Routing Protocol |
IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
|
Remote Management Protocol |
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
|
Features |
VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
|
Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
|
Power |
AC 120/230 V ( 50/60 Hz ) |
|
Dimensions (WxDxH) |
44.2 cm x 22 cm x 4.4 cm |
|
Weight |
3 kg |
|
Extended Specification |
|
|
General |
|
|
Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+ |
|
Capacity |
Virtual interfaces (VLANs) : 4000 |
|
Compliant Standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
|
Device Type |
Switch – 48 ports – Managed – stackable |
|
Enclosure Type |
Desktop |
|
Features |
VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
|
Interfaces |
Gigabit Ethernet |
|
MAC Address Table Size |
8K entries |
|
Performance |
Forwarding performance : 13.2 Mpps |
|
Ports |
48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
|
Remote Management Protocol |
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
|
Routing Protocol |
IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
|
Subtype |
Gigabit Ethernet |
|
Dimensions (D × H × W) |
22 cm × 4.4 cm × 44.2 cm |
|
Weight |
3 Kg |
|
Environmental Parameters |
|
|
Humidity Range Operating |
10 – 90% (non-condensing) |
|
Humidity Range Storage |
10 – 90% (non-condensing) |
|
Max Operating Temperature |
50 °C |
|
Max Storage Temperature |
55 °C |
|
Min Operating Temperature |
0 °C |
|
Min Storage Temperature |
-5 °C |
|
Expansion / Connectivity |
|
|
Interfaces |
2 x SFP (mini-GBIC) ¦ 48 x 100Base-TX – RJ-45 ¦ 1 x console – RJ-45 – management ¦ 2 x SFP (mini-GBIC) |
|
Power |
|
|
Power Consumption Operational |
38 Watt |
|
Power Device |
Internal power supply |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
