Product Model: S2350-28TP-EI-DC
Retail Price: US$878.00
Email Us To Get Special Price Today: [email protected]
Huawei S2300 Series Switch S2350-28TP-EI-DC 24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 DC-48V,front access, QoS, Comperhensive Layer 2 Feature.
Quick Specs

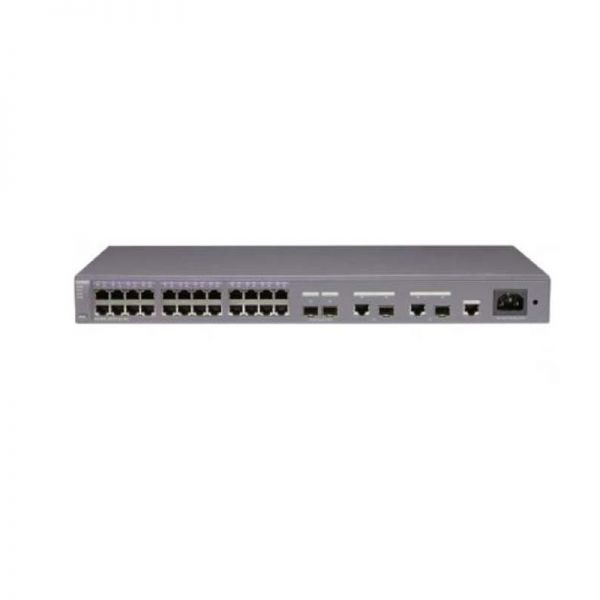

Figure 1 shows the appearance of S2350-28TP-EI-DC.
Table 1 shows the Quick Specs.
|
Product Code |
S2350-28TP-EI-DC |
|
Part Number |
02357739 |
|
Description |
S2350-28TP-EI-DC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,DC-48V,front access) |
|
Software Version |
V200R005C00 and later versions NOTE: This model does not match V200R005C00SPC500, V200R005C01, or V200R005C02. |
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
|
Maximum power consumption (100% throughput) |
15.3 W |
|
EAN |
6920702797180 |
|
UOM |
PCS |
Product Details
Figure 2 shows the front panel of S2350-28TP-EI-DC.
Note:
|
¢Ù |
Twenty-four 10/100BASE-TX ports |
|
¢Ú |
Two 1000BASE-X ports |
|
¢Û |
Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
|
¢Ü |
One console port |
|
¢Ý |
DC power terminal |
Figure 3 shows the back panel of S2350-28TP-EI-DC.
Note:
|
¢Ù |
Ground screw |
Compare to Similar Items
Table 2 shows the comparison of S2350-28TP-EI-DC and S5320-32C-HI-24S-AC.
|
Product Code |
S2350-28TP-EI-DC |
S5320-32C-HI-24S-AC |
|
Software Version |
V200R005C00 and later versions NOTE: This model does not match V200R005C00SPC500, V200R005C01, or V200R005C02. |
V200R009C00 and later versions |
|
Memory (RAM) |
256 MB |
4 GB |
|
Flash |
200 MB |
400 MB |
|
RPS |
Not supported |
Not supported |
|
PoE |
Not supported |
Not supported |
|
Maximum power consumption (100% throughput) |
15.3 W |
172.7 W |
Before Purchasing
Do you have any question about the S2350-28TP-EI-DC?
Contact us – Email Live Chat or [email protected].
S2350-28TP-EI-DC Datasheet
S2350-28TP-EI-DC specification |
|
|
Item |
Description |
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
Mean time between failures (MTBF) |
44.3 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±6 kV |
|
Power supply surge protection |
±1 kV in differential mode, ±2 kV in common mode |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.) |
|
Weight |
≤ 5 kg (11.02 lb) |
|
Stack ports |
Two uplink 1000Base-X optical ports |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
-48 V DC to -60 V DC |
|
Maximum voltage range |
-36 V DC to -72 V DC |
|
Maximum power consumption (100% throughput) |
15.3 W |
|
Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5096 ft.) NOTE: When the altitude is between 1800 m (5096 ft.) and 5000 m (16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when it uses SFP optical modules with 80 km or longer transmission distances. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
Noise-free (no fans) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-2000 m (0-6562 ft.) |
|
Certification |
EMC certification Safety certification Manufacturing certification |
