Product Model: S1730S-S24T4X-A1
Retail Price: US$393.00
Email Us To Get Special Price Today: [email protected]

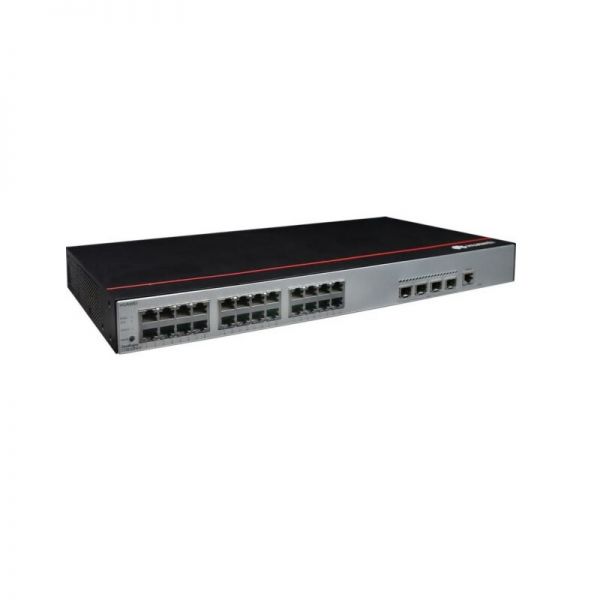

S1730S-S24T4X-A1 is a Huawei S1730S series switch, providing 24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design thats easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Quick Spec
Table 1 shows the quick spec.
|
Model |
CloudEngine S1730S-S24T4X-A1 |
|
Forwarding Performance |
95.23 mpps |
|
Switching Capacity |
168Gbit/s |
|
Fixed Ports |
24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
|
Power Supply |
Built-in 60W AC power module |
|
Dimension (H W D) |
43.6mm 442mm 220mm |
Applicable Modules
Table 2 shows the recommended modules.
|
Product |
Description |
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
|
S-SFP-GE-LH80-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
|
eSFP-GE-ZX100-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
|
SFP-GE-LX-SM1310-BIDI |
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
|
SFP-GE-LX-SM1490-BIDI |
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
|
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
|
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
SFP-10G-iLR |
Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC) |
|
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
|
SFP-10G-ZCW1471 |
Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1471nm, 70km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
|
Parameters |
CloudEngine S1730S-S24T4S-A |
CloudEngine S1730S-S24P4S-A |
CloudEngine S1730S-S48T4S-A |
CloudEngine S1730S-S48P4S-A |
CloudEngine S1730S-S24T4X-A |
|
Forwarding Performance |
41.66 mpps |
41.66 mpps |
77.38 mpps |
77.38 mpps |
95.23 mpps |
|
Switching Capacity |
168 Gbit/s |
168 Gbit/s |
216 Gbit/s |
216 Gbit/s |
168Gbit/s |
|
Fixed Ports |
24 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports |
48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports |
48 x 10/100/1000Base-T (PoE+) ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
Before Purchasing
Do you have any question about the S1730S-S24T4X-A1
Contact us – Email Live Chat or [email protected].
S1730S-S24T4X-A1 Datasheet
S1730S-S24T4X-A1 Specification |
|
|
Forwarding Performance |
95.23 mpps |
|
Switching Capacity |
168Gbit/s |
|
Fixed Ports |
24 x 10/100/1000Base-T Ethernet ports, 4 x 10GE SFP+ ports |
|
Power Supply |
Built-in 60W AC power module |
|
Dimension (H ¡Á W ¡Á D) |
43.6mm ¡Á 442mm ¡Á 220mm |
|
Chassis Height |
1U |
|
Rated Voltage Range |
– 100V AC to 240V AC, 50/60 Hz – High-voltage DC input: 240V DC |
|
Maximum Voltage Range |
– 90V AC to 264V AC, 47 Hz to 63 Hz – High-voltage DC input: 190V DC to 290V DC |
|
Maximum Power Consumption |
43W |
|
Operating Temperature |
5¡ãC to +50¡ãC (23¡ãF to 122¡ãF) at an altitude of 0-1800m (0-5906 ft.) |
|
Storage Temperature |
-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
