Product Model: S1730S-S24T4S-MA
Retail Price: US$1,125.00
Email Us To Get Special Price Today: [email protected]

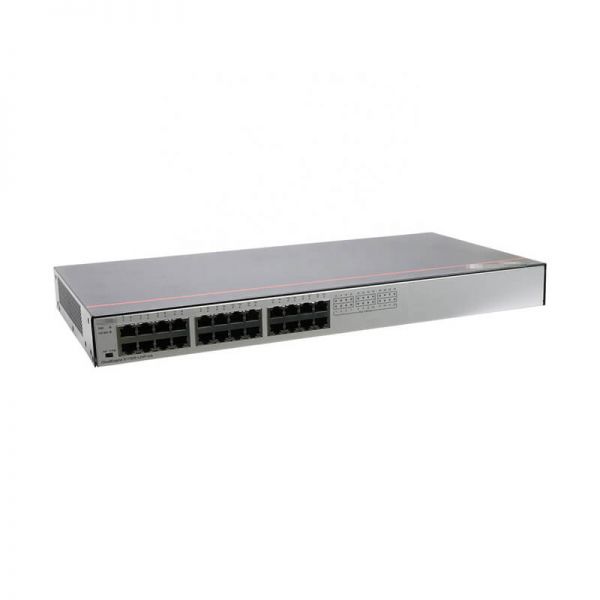

S1730S-S24T4S-MA is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design thats easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Quick Spec
Table 1 shows the quick spec.
|
Model |
S1730S-S24T4S-MA |
|
Memory (RAM) |
1 GB |
|
Flash |
512 MB |
|
Mean time between failures (MTBF) |
92.82 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Maximum power consumption |
34 W |
Applicable Modules
Table 2 shows the recommended modules.
|
Product |
Description |
|
eSFP-GE-SX-MM850 |
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC) |
|
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
S-SFP-GE-LH40-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
|
S-SFP-GE-LH40-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
|
S-SFP-GE-LH80-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 80km, LC) |
|
eSFP-GE-ZX100-SM1550 |
Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 100km, LC) |
|
SFP-GE-LX-SM1310-BIDI |
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1310/RX1490, 10km, LC) |
|
SFP-GE-LX-SM1310-BIDI |
BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
|
SFP-GE-LX-SM1490-BIDI |
Optical Transceiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 10km, LC) |
|
SFP-GE-LX-SM1490-BIDI |
BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km |
|
CWDM-SFPGE-1471 |
CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1471nm, 80km, LC) |
|
CWDM-SFPGE-1491 |
CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1491nm, 80km, LC) |
|
CWDM-SFPGE-1511 |
CWDM Optical Transceiver, eSFP, 2.5G, Single-mode Module (1511nm, 80km, LC) |
|
DWDM-SFPGE-1560-61 |
DWDM Optical Transceiver.eSFP.2.5G.Single-mode Module (1560.61nm.120km.LC) |
|
SFP-1000BaseT |
1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
Before Purchasing
Do you have any question about the S1730S-S24T4S-MA
Contact us – Email Live Chat or [email protected].
S1730S-S24T4S-MA Datasheet
S1730S-S24T4S-MA Specification |
|
|
Item |
Description |
|
Memory (RAM) |
1 GB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
92.82 years |
|
Mean time to repair (MTTR) |
2 hours |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ¡À7 kV |
|
Power supply surge protection |
¡À6 kV in differential mode, ¡À6 kV in common mode |
|
Dimensions (H x W x D) |
|
|
Stack ports |
Not supported |
|
RTC |
Not supported |
|
RPS |
Not supported |
|
PoE |
Not supported |
|
Rated voltage range |
|
|
Maximum voltage range |
|
|
Maximum power consumption (100% throughput) |
34 W |
|
Typical power consumption (30% of traffic load, tested according to ATIS standard, with EEE enabled) |
28 W |
|
Operating temperature |
-5¡ãC to +45¡ãC (23¡ãF to 113¡ãF) at an altitude of 0-1800 m (0-5906 ft.) |
|
Storage temperature |
-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
|
Noise under normal temperature (27¡ãC, sound power) |
Noise-free (no fans) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
