Product Model: S1730S-L8T-A
Retail Price: US$64.00
Email Us To Get Special Price Today: [email protected]
Huawei S1730S-L8T-A is one of the Huawei S1730 unmanaged switches, with 8 10/100/1000BASE-T Ethernet ports and national standard AC adapter. The S1700 unmanaged switch is deployed at the access layer of an enterprise network to deliver cost-effective packet switching capability. It provides high quality data transmission for enterprises. The S1700 unmanaged switch helps enterprises construct reliable networks that have high scalability.
Quick Spec
Table 1 shows the quick spec.
|
Part Number |
S1730S-L8T-A |
|
Ports |
8 10/100/1000BASE-T Ethernet ports |
|
PoE |
Not Supported |
|
Dimensions (H x W x D) |
160mm¡Á120mm¡Á28mm |
Product Details
The S1700 unmanaged switch provides these features:
Flexible Networking Capability
The S1700 unmanaged switch provides 10/100/1000BASE-T, 1000BASE-X, and 10GBASE-X ports. The S1700 unmanaged switch provides swappable Small Form-Factor Pluggable (SFP) optical modules for GE optical fiber connections. The S1700 unmanaged switch provides swappable Small Form-Factor Pluggable Plus (SFP+) optical modules for 10GE optical fiber connections. The length of optical fiber can be selected according to the transmission distance.
Energy-Saving Design
Note: The S1700-52GR-4X has a fan, and the S1730S-L24P-A and S1730S-L24P-MA each have two fans. All these switches use air-cooled heat dissipation.
Cutting-Edge Surge Protection Capability
The S1700 unmanaged switch adopts the Huawei patented surge protection technology to protect the equipment. The surge protection capability reduces the probability of damages caused by lightning, even when the equipment cannot be grounded.

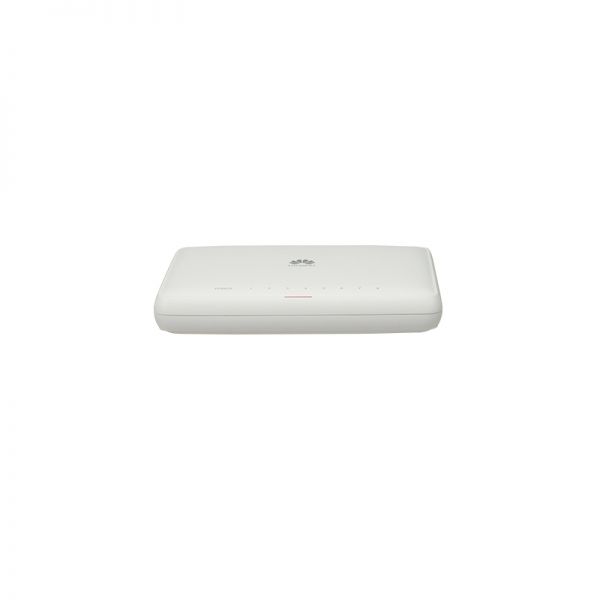

Figure 1. Front view of S1730S-L8T-A.
Description of indicators on an S1730S-L8T-A:
|
No. |
Indicator |
Name |
Color |
Status |
Description |
|
¢Ù |
Power |
Power Indicator |
– |
Off |
The switch is powered off. |
|
Green |
Steady on |
The switch is powered on. |
|||
|
¢Ú |
1-8 |
Port Indicator |
– |
Off |
A port is not connected. |
|
Green |
Steady on |
A port has set up a 10M, 100M, or 1000M connection. |
|||
|
Green |
Blinking |
A port is transmitting data. |
Figure 2. Rear view of S1730S-L8T-A.
Note:
|
¢Ù |
Eight 10/100/1000BASE-T ports |
|
¢Ú |
Power socket NOTE: It is used with a power adapter. |
Compare to Similar Items
Table 2 shows the comparison.
|
Part Number |
S1730S-L4P4T-A |
S1730S-L8T-A |
|
Ports |
8 10/100/1000BASE-T Ethernet ports |
8 10/100/1000BASE-T ports |
|
PoE |
Supported |
Not supported |
|
Dimensions (H x W x D) |
|
160mm¡Á120mm¡Á28mm |
Before Purchasing
Do you have any question about the S1730S-L8T-A
Contact us – Email Live Chat or [email protected].
S1730S-L8T-A Datasheet
S1730S-L8T-A Specification |
|
|
Dimensions (H x W x D) |
160mm×120mm×28mm |
|
Service port surge protection |
Common mode: ±7 kV |
|
Power supply surge protection |
±4 kV in different mode, ±4 kV in common mode |
|
PoE |
Not Support |
|
Rated voltage range |
170 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
150 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Maximum power consumption (100% throughput) |
5W |
|
Typical power consumption (30% of traffic load) |
2W |
|
Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
Noise-free (no fans) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
