Product Model: S1700-24GR
Retail Price: US$88.00
Email Us To Get Special Price Today: [email protected]
Huawei S1700-24GR is unmanaged switch which is easy to install and maintain, especially ideal for small and medium-size enterprises. It also can be set on the rack. With 24 Ethernet 10/100/1,000 ports, it combines high reliability, rich management and security features to help customers build secure, reliable, high-performance networks.
Quick Specs

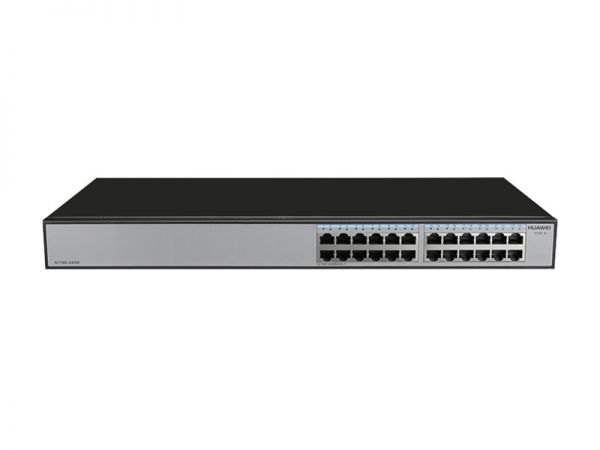

Figure 1 shows the appearance of Huawei S1700-24GR switch.
Table 1 shows the Quick Specs.
|
Product Code |
S1700-24GR |
|
Type |
Unmanaged Switch |
|
Downlink Ports |
24 x 10/100/1000 Mbit/s Ethernet electrical ports |
|
Uplink Ports |
Shared with downlink ports |
|
MAC Address Table Size |
8K entries |
|
Forwarding Performance |
36 Mpps |
|
Switching Capacity |
48 Gbit/s |
|
Voltage Required |
100 V to 240 V AC, 50/60 Hz |
|
Power Consumption Operational |
< 14.2W |
|
Dimensions (W x D x H) |
442 mm x 220 mm x 43.6 mm |
|
EEE |
NA |
Product Details
Figure 2 shows the front panel of Huawei S1700-24GR switch.
Note£º
|
¢Ù |
Ethernet Electrical Port Indicator |
|
¢Ú |
Power indicator |
|
¢Û |
Twenty- four 10/100/1000BASE-T ports |
Table 2 shows the LED Indicators description.
|
LED Indicator |
Condition |
Description |
|
Ethernet Electrical Port Indicator |
Steady Green |
The port is connected at the rate of 1000 Mbit/s. |
|
Blinking Green |
The port is connected at the rate of 1000 Mbit/s and transmitting data |
|
|
Steady Yellow |
The port is connected at the rate of 10/100 Mbit/s |
|
|
Blinking Yelow |
The port is connected at the rate of 10/100 Mbit/s and transmitting data. |
|
|
off |
The port is not connected. |
|
|
Power Indicator |
Steady Green |
The switch is powered on. |
|
Off |
The switch is powered off. |
Figure 3 shows the back panel of Huawei S1700-24GR switch.
Note£º
|
¢Ù |
Ground screw |
|
¢Ú |
Jack reserved for AC terminal locking latch |
|
¢Û |
AC power jack |
¡î S1700-24GR supports only AC power supply.
Compare with Similar Item
Table 3 shows the comparison between S1700-24-AC£¬S1700-24GR and S1724G
|
Model |
S1700-24-AC |
S1700-24GR |
S1724G |
|
Downlink Ports |
24 Ethernet 10/100 ports |
24 Ethernet 10/100/1,000 ports |
24 Ethernet 10/100/1,000 ports |
|
Uplink Ports |
Shared with downlink ports |
Shared with downlink ports |
Shared with downlink ports |
|
MAC Address Table |
8K MAC |
8K MAC |
8K MAC |
|
Dimensions (W x D x H) |
320 mm x 208 mm x 43.6 mm |
442 mm x 220 mm x 43.6 mm |
320 mm x 208 mm x 43.6 mm |
|
Power consumption |
<3.9W |
<14.2W |
<14.2W |
Before Purchasing
Do you have any question about the Huawei S1700-24GR switch?
Contact us – Email Live Chat or [email protected].
S1700-24GR Datasheet
S1700-24GR Specifications |
|
|
Type |
Huawei S1700 Unmanaged Switch |
|
Downlink Ports |
24 Ethernet 10/100/1000 ports |
|
Uplink Ports |
Shared with downlink ports |
|
MAC Address Table |
8K MAC |
|
Dimensions in mm (W x D x H) |
442 x 220 x 43.6 |
|
Input Voltage |
Rated AC power: 100V to 240V; 50 Hz/60 Hz |
|
EEE |
NA |
|
Power Consumption |
<20W |
|
Operating Temperature |
0°C to 45°C |
|
Humidity (non-condensing) |
5% to 95% |
|
Heat Dissipation |
Fan-free natural heat dissipation |
