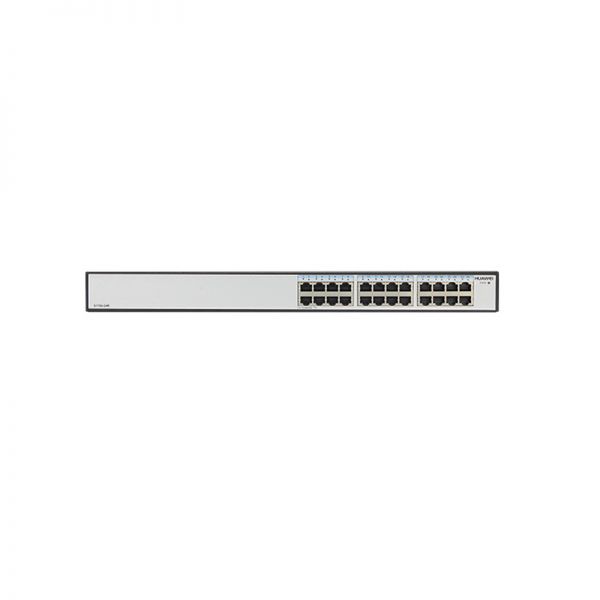

Product Model: S1700-24R
Retail Price: US$54.00
Email Us To Get Special Price Today: [email protected]
The S1700 series enterprise switches (S1700) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-sized and medium-sized enterprises, Internet cafes, hotels, and schools.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
S1700-24R |
|
Dimensions (H x W x D) |
44.2 mm x 220 mm x 43.6 mm |
|
Switching capacity |
4.8Gbps |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
Compare to Similar Items
Table?2?shows the comparison.
|
Product model |
S1720-10GW-2P |
S1720-52GWR-4P |
S1720X-16XWR |
S1720X-32XWR |
|
Switching Capacity |
68 Gbps |
336 Gbps |
680 Gbps |
680 Gbps |
|
Forwarding Performance |
15 Mpps |
S1720-52GWR-P series: 78 Mpps |
240 Mpps |
252 Mpps |
|
Fixed Ports |
Downlink: 8 x 10/100/1000Base-T electrical ports |
S1720-52GWR-P series |
16 x 10GBase-X optical ports |
32 x 10GBase-X optical ports |
|
VLAN Features |
256 VLANs (S1720 Series: 4K) Access port |
|||
|
IP Routing |
IPv4 and IPv6 static routing |
|||
|
Device Maintenance |
System log Ping |
|||
Before Purchasing
Do you have any question about the S1700-24R ?
Contact us – Email Live Chat or [email protected].
S1700-24R Datasheet
S1700-24R Specification |
|
|
Item |
Description |
|
Dimensions (H x W x D) |
44.2 mm x 220 mm x 43.6 mm |
|
Switching capacity |
4.8Gbps |
|
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
Operating temperature |
0¡ãC to 45¡ãC (32¡ãF to 113¡ãF) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1¡ãC (1.8¡ãF) every time the altitude increases by 220 m (722 ft.). |
|
Storage temperature |
-40¡ãC to +70¡ãC (-40¡ãF to +158¡ãF) |
|
Noise under normal temperature (27¡ãC, sound power) |
Noise-free (no fans) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
