Ruckus H320 901-H320-WW00 – Ruckus ZoneFlex H320 AP Price & Datasheet

Product Model: 901-H320-WW00

Retail Price: US$142.00

Email Us To Get Special Price Today:  [email protected]

ZoneFlex 802.11ac Wave 2 multi-user MU-MIMO, supports dual-band 2.4 GHz (1×1:1) & 5 GHz (2×2:2), built-in BeamFlex+ world, 1 uplink 10/100/1000 interface and 2 10/100 Ethernet access interface, POE Gigabit input. Power adapter is not included.

Quick Spec

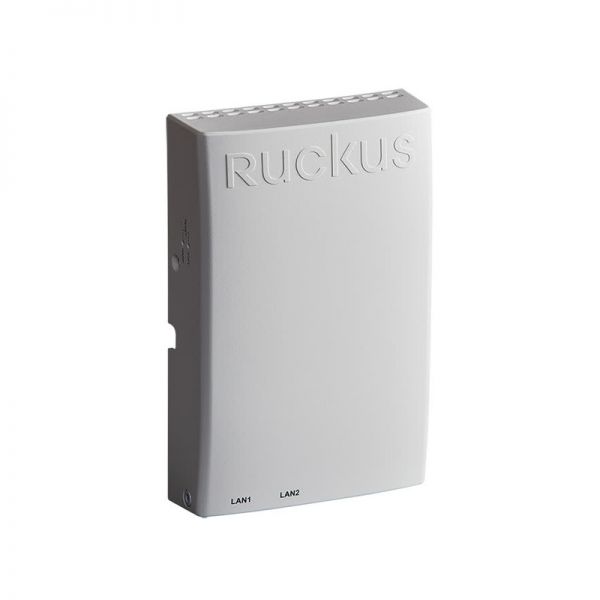

Figure 1 shows the appearance of 901-H320-WW00.

Table 1 shows the quick spec.

Product Model	901-H320-WW00
Minimum Rx Sensitivity	Up to -99dBm
Beamflex Sinr Tx Gain	2dB
Beamflex Sinr Rx Gain	3-5dB (PD-MRC)
Interference Mitigation	5dB
Concurrent users	100 per AP
Voice Calls	30
BSSID	8 BSSIDs per radio
802.11e/WMM	Supported
Software Queues	Per traffic type (4), per client
Traffic Classification	Automatic, heuristics and TOS based or VLAN-defined
Power	POE 802.3af
Physical Size	89mm (L) x 136mm (W) x 29mm (H)

Product Details

Figure 2 shows the front panel of 901-H320-WW00.



Figure 3 shows the bottom panel of 901-H320-WW00.

901-H320-WW00 provides these features:

Wall-Mounted 802.11ac Wave 2 Wi-Fi Access Point and Switch

• Wi-Fi is a critical amenity as users bring more devices into our hotel rooms, meeting rooms, and classrooms. Today, with an ever increasing need for quality Wi-Fi, an AP in every room has increasingly become necessary.
• The H320 combines an 802.11ac Wave 2 Wi-Fi access point and wired switch into one wall-mount device. Designed specifically for per-room deployments, the H320 is compact, inconspicuous, secure, and easy to mount to an electrical junction box. Bottom facing Ethernet ports eliminate unsightly cabling and accommodate any furniture placement.
• The H320 easily supports converged wired and wireless services with one device, that include VoIP, IPTV, high-speed Internet access and in-room Wi-Fi device connectivity.
• This 802.11ac Wave 2 Wi-Fi AP and switch incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.
•  Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns
• Improved throughput with ChannelFly which dynamically find less congested Wi-Fi channels to use
•  The H320 supports Multi-User MIMO (MU-MIMO) which increases network throughput by transmitting to multiple clients simultaneously.
• Support per-room wired IP devices from TVs to phones with 2 onboard Ethernet ports. Also, with built-in visual troubleshooting tools within Ruckus Wi-Fi controllers, administrators can accelerate resolution of trouble tickets.
• Whether organizations are deploying ten or ten thousand APs, the H320 can be deployed as a standalone AP or centrally managed by SmartZone, ZoneDirector, or FlexMaster management platforms.

BENEFITS

•  AFFORDABLE ALL-IN-ONE – Deliver great in-room Wi-Fi and concurrent wired IP connectivity with 802.11ac Wave 2 speed and a built-in 2-port switch.
•  STUNNING PERFORMANCE – Extends coverage with patented BeamFlex+TM adaptive antenna technology while mitigating interference by utilizing multi-directional antenna patterns.
•  MULTIPLE MANAGEMENT OPTIONS – Manage the H320 from the cloud, or with on-premises physical/virtual appliances.
•  GET OPTIMAL THROUGHPUT – ChannelFlyTM dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
•  SERVICE MORE DEVICES – Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.
•  SUPPORT MORE SERVICES – Multiple SSIDs and switch ports help support services such as VoIP, IPTV, and high-speed Internet access and in-room device connectivity
•  KEEP YOUR SWITCHES AND CABLES – Designed to operate on existing PoE switches and CAT 5e cabling to minimize costs.
•  MORE THAN WI-FI – Enhance your network with CloudpathTM security and management software, SPoTTM real-time Wi-Fi location engine and analytics software, and SCI network ana-lytics
