Product Model: Mikrotik RB750Gr3
Retail Price: US$59.50
Email Us To Get Special Price Now: [email protected]
Quick Specs

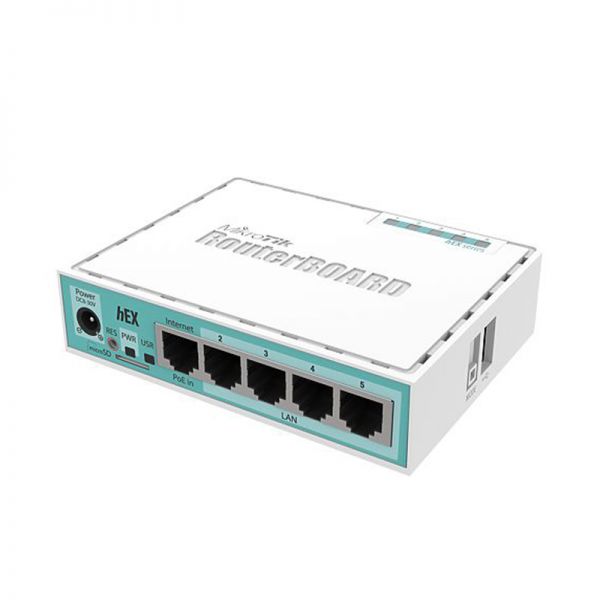

Figure 1 shows the appearance of RB750Gr3.
Table 1 shows the Quick Specs.
|
Product Code |
RB750Gr3 |
|
Dimensions |
113x89x28mm |
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Max power consumption |
10 W |
|
Max power consumption without attachments |
5 W |
Product Details
Figure 2 shows the front panel of RB750Gr3.
Figure 3 shows the back panel of RB750Gr3.
RB750Gr3 provides these features:
- ● RB750Gr3 is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the RB750Gr3 brings several improvements in performance.
- ● It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
- ● IPsec Hardware encryption (~470Mbps) and dude server package is supported, microSD slot on it also provides improved r/w speed for database storage on microSD card.
Compare to Similar Items
Table 2 shows the comparison of RB750Gr3.
|
Module |
RB750Gr3 |
RB760iGS |
|
Dimensions |
113x89x28mm |
113 x 89 x 28 mm |
|
Size of RAM |
256 MB |
256 MB |
|
Storage size |
16 MB |
16 MB |
|
Max power consumption |
10 W |
24 W |
|
Max power consumption without attachments |
5 W |
6 W |
Get More Information
Do you have any question about the RB750Gr3
Contact us now via Live Chat or [email protected].
Specification
Mikrotik RB750Gr3 Datasheet
RB750Gr3 Specification |
|
|
Product code |
RB750Gr3 |
|
Architecture |
MMIPS |
|
CPU |
MT7621A |
|
CPU core count |
2 |
|
CPU nominal frequency |
880 MHz |
|
CPU Threads count |
4 |
|
Dimensions |
113x89x28mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
256 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 100’000 hours at 25C |
|
Tested ambient temperature |
-40°C to 60°C |
|
IPsec hardware acceleration |
Yes |
|
Powering |
|
|
Number of DC inputs |
2 (DC jack, PoE-IN) |
|
DC jack input Voltage |
8-30 V |
|
Max power consumption |
10 W |
|
Max power consumption without attachments |
5 W |
|
FAN count |
Passive |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
8-30 V |
|
Ethernet |
|
|
10/100/1000 Ethernet ports |
5 |
|
Peripherals |
|
|
Memory card type |
microSD |
|
Memory Cards |
1 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
|
Other |
|
|
PCB temperature monitor |
Yes |
|
Voltage Monitor |
Yes |
|
Mode button |
Yes |
|
Beeper |
Yes |
|
Certification & Approvals |
|
|
Certification |
CE, EAC, ROHS |
|
IP |
IP20 |
