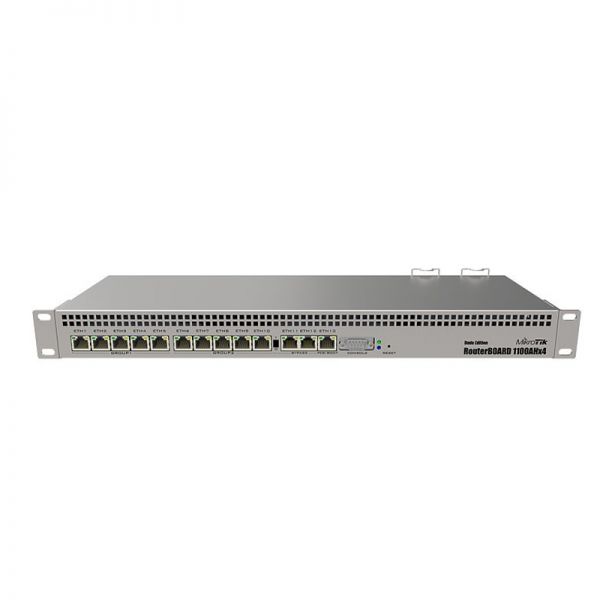

Product Model: Mikrotik RB1100Dx4
Retail Price: US$373.15
Email Us To Get Special Price Now: [email protected]
The Mikrotik RB1100Dx4 from Mikrotik offers powerful networking capabilities with its Annapurna Alpine CPU featuring four Cortex A15 cores at 1.4GHz each. Designed for high throughput up to 7.5Gbps, it is ideal for engineers and procurement personnel seeking a reliable and robust networking solution for demanding environments.
Mikrotik RB1100Dx4Product Datasheet
- ● Annapurna Alpine AL21400 CPU
- ● Four Cortex A15 cores
- ● 1.4GHz clock speed
- ● Maximum throughput 7.5Gbps
- ● Dude Edition included
Product Features Comparison
| Features | Mikrotik RB1100Dx4 | Mikrotik RB3011UiAS-RM | Cisco RV260 | Ubiquiti EdgeRouter 4 | TP-Link TL-R605 | Netgear BR200 | DrayTek Vigor2926 |
|---|---|---|---|---|---|---|---|
| CPU | Annapurna Alpine AL21400 | ARM Cortex A9 | Dual-core ARM-based | Quad-core MIPS64 | Dual-core ARM | Quad-core ARM Cortex-A53 | Dual-core ARM Cortex-A9 |
| Clock Speed | 1.4GHz | 1.4GHz | 880MHz | 1GHz | 1GHz | 1.4GHz | 1GHz |
| Throughput | 7.5Gbps | 2.5Gbps | 1Gbps | 3.4Gbps | 940Mbps | 2Gbps | 1.2Gbps |
| RAM | 1GB | 1GB | 512MB | 1GB | 512MB | 2GB | 256MB |
| Ports | 13x Gigabit Ethernet | 10x Gigabit Ethernet | 8x Gigabit Ethernet | 3x Gigabit Ethernet | 5x Gigabit Ethernet | 5x Gigabit Ethernet | 5x Gigabit Ethernet |
| Storage | 128MB NAND | 128MB NAND | 256MB Flash | 4GB eMMC | 16MB Flash | 128MB Flash | 32MB Flash |
Mikrotik RB1100Dx4 Product Application Scenarios
- ● Enterprise network deployments
- ● High-throughput data centers
- ● ISP network backbone
Optional Add-ons
| Model | Description |
|---|---|
| RB1200 | Rackmount case with LCD screen |
| S+RJ10 | 10Gbps RJ-45 Ethernet module |
| CCR1036-12G-4S | 36-core networking router |
Get More Information
Discover unbeatable prices and fast shipping for the Mikrotik RB1100Dx4. Access the detailed RB1100Dx4 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
Mikrotik RB1100Dx4 Datasheet
Mikrotik RB1100Dx4 Specifications | |
| Model | Mikrotik RB1100Dx4 Dude Edition |
| CPU | Annapurna Alpine AL21400 |
| CPU Cores | 4 x Cortex A15 |
| CPU Clock Speed | 1.4GHz each core |
| Max Throughput | Up to 7.5Gbps |
| RAM | 1GB DDR3 |
| Storage | 128MB NAND |
| Ethernet Ports | 13 x Gigabit Ethernet |
| Serial Port | 1 x DB9 RS232 |
| Power Supply | Dual redundant power supplies |
| Power Consumption | Maximum 25W |
| Operating System | RouterOS Level 6 license |
| Dimensions | 444mm x 148mm x 47mm |
| Operating Temperature | -40°C to 70°C |
| Fanless | Yes |
| Mounting | 1U Rackmount |
| USB Ports | 1 x USB 3.0 |
| Switch Chip | 2 x Marvell 88E6171 |
| PCIe Slots | 1 x PCIe Slot |
| LED Indicators | Yes |
