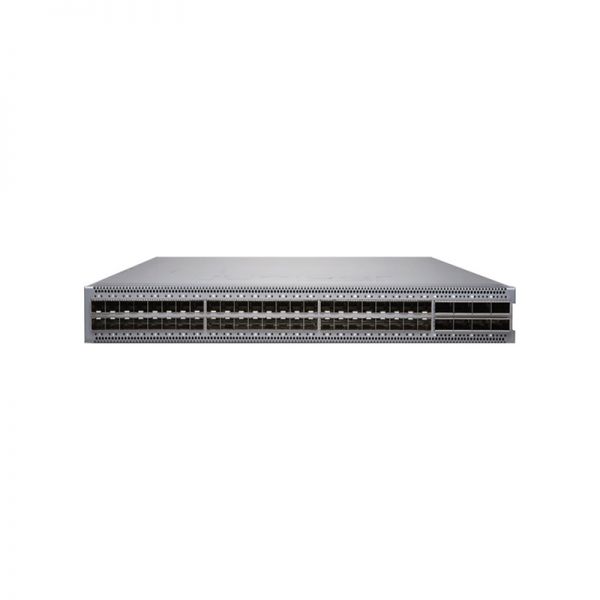

QFX5120-48Y-AFO2, Juniper Networks QFX Series QFX5120-48Y – Switch – L3 – managed – 48 x 1/10/25 Gigabit SFP28 + 8 x 40/100 Gigabit QSFP28 – front to back airflow – rack-mountable
The QFX5120 Switch delivers rich, low latency Layer 2/Layer 3 features and advanced EVPN-VXLAN capabilities, making it an ideal data center top-of-rack and distribution switch for campus enterprise deployments.
Featuring L3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y and QFX5120-48YM, 10GbE/1GbE copper with 100GbE uplink ports on the QFX5120-48T, and 32 100GbE ports on the QFX5120-32C make the QFX5120 family ideal for spine-and-leaf network deployments.
The Juniper Networks QFX5120 Switch delivers high scale, high availability, and high performance for data center and campus deployments. The QFX5120 Switch is a versatile routing and switching platform addressing higher server access speed and campus distribution use cases while offering high-density 1GbE/10GbE/25GbE and 100GbE uplinks for collapsed spine data center or campus distribution deployments.
The QFX5120-48Y is a 25GbE/100GbE data center leaf and campus distribution switch featuring: ? 48 25GbE (SFP28)/10GbE (SFP+)/1GbE (SFP) downlink ports ? Eight 100GbE (QSFP28)/40GbE (QSFP+) uplink ports ? Up to 4 Tbps L2 and L3 performance (bidirectional), with latency as low as 800 nanoseconds ? A 2.2 GHz quad-core Intel CPU with 16 GB memory and 50 GB SSD storage
Quick Spec
Table 1 shows the quick spec.
Dimensions(W x H x D)
1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)
Switching Capacity
4 Tbps (bidirectional)/2 Bpps
Switching mode
Cut-through and store-and-forward
Max load
272 W
Typical load
247 W
Interface
2 management ports: 2 x RJ-45 ports
1GbE SFP: 48
10GbE SFP+: 48/80(with breakout cable)
25GbE SFP: 48/80 (with breakout cable)
40GbE QSFP+: 8 (each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port)
100GbE QSFP28: 8 (each QSFP28 port can be configured as a 4 x 25GbE interface or as a 100 Gbps port)
SFP GbE optical and copper module
SFP+ 10GbE optical modules
SFP+ direct attach copper (DAC) cables: 1/3/5 m twinax copper and 1/3/5/7 m active twinax copper
SFP28 DAC cables: 1/3 m twinax copper
SFP28 optics: Short reach (SR), long reach (LR)
QSFP+ to SFP+: 10GbE direct attach breakout copper (1/3 m twinax copper cable)
Supported transceiver and direct attach cable
QSFP+ DAC cables: 1/3 m twinax copper
QSFP+ optics: SR4, LX4, ESR4, ER4, LR4
QSFP28 optics: SR4, ER4, PSM4, CWDM4, LR4
Number of link aggregation groups (LAGs)
80
Number of ports per LAG
64
Layer 2 Features
STP¡ªIEEE 802.1D (802.1D-2004)
Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)
Bridge protocol data unit (BPDU) protect
Loop protect
Root protect
RSTP and VSTP running concurrently
VLAN¡ªIEEE 802.1Q VLAN trunking
Routed VLAN interface (RVI)
Port-based VLAN
Private VLAN (PVLAN)
VLAN translation
Static MAC address assignment for interface
Per VLAN MAC learning (limit)
MAC learning disable
Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad)
MACsec with AES256 (QFX5120-48YM only)
Virtual chassis¡ªup to 2 members on QFX5120-48Y, QFX5120-32C and QFX5120-48T
Layer 3 Features (IPv4)
Static routing
Routing protocols (RIP, OSPF, IS-IS, BGP)
Virtual Router Redundancy Protocol (VRRP)
Virtual router
Dynamic Host Configuration Protocol (DHCP) relay
Proxy Address Resolution Protocol (ARP)
