Product Model: Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server
Retail Price: US$1,061.65
Email Us To Get Special Price Today: [email protected]
Dell PowerEdge R230 Server provides consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server. This model is the Dell PowerEdge R430 server with Intel® Xeon® E3-1225 v5 processor, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty.
Quick Specs

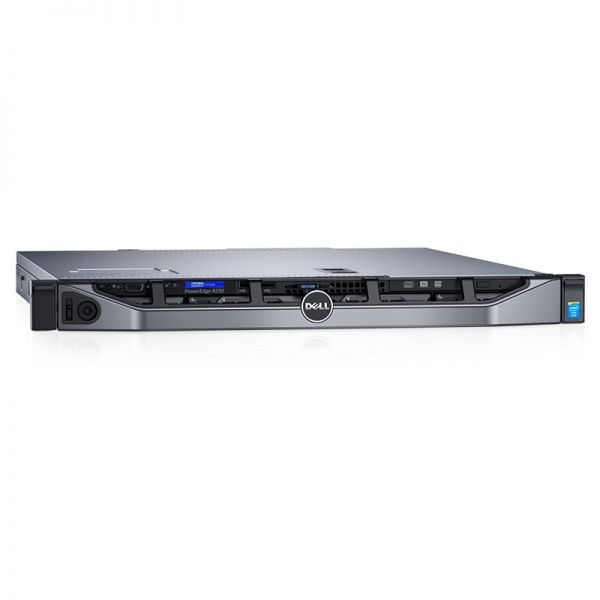

Figure 1 shows the appearance of Dell PowerEdge R230 Server.
Table 1 shows the quick spec.
|
Product Model |
Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server |
|
Product Series |
Dell PowerEdge R230 Server |
|
Customizable |
Intel® Xeon® E3-1225 v5, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty |
|
Base |
PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W) |
|
Operating System |
Windows Server® 2012R2,Foundation Ed,Factory Install,No MED |
|
Memory |
16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive |
|
RAID Controllers |
S130, H330, H730, H830 |
|
Chassis |
2 x 3.5″ cabled HDD 19.5″ 1U chassis |
|
Dimensions |
Depth without bezel: 495.0 mm (19.5 in) Width without rack latches: 434.0 mm (17.08 in) |
Product Details
Figure 2 shows the four 3.5-inch or 2.5-inch hot swappable hard drive chassis of Dell PowerEdge R230 Server.
Note:
|
① |
Power-on indicator, power button |
⑥ |
USB management port/iDRAC Direct port |
|
② |
NMI button and System identification button |
⑦ |
USB connector |
|
③ |
Video connector |
⑧ |
Information tag |
|
④ |
LCD menu buttons |
⑨ |
Optical drive (optional) |
|
⑤ |
LCD panel |
⑩ |
Hard drives |
Figure 3 shows the back panel of Dell PowerEdge R230 Server.
Note:
|
① |
Serial connector |
⑦ |
USB connectors (2) |
|
② |
vFlash card slot (optional) |
⑧ |
Ethernet connectors |
|
③ |
iDRAC port (optional) |
⑨ |
System identification connector |
|
④ |
PCIe expansion card slot (x8 slot, low profile) |
⑩ |
System identification button |
|
⑤ |
PCIe expansion card slot (x16 slot, full height) |
⑪ |
Video connector |
|
⑥ |
Power supply unit (PSU) |
Compare to Similar Item
Table 2 shows the comparison.
|
Product Model |
Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server |
Dell PowerEdge R230 Xeon E3-1240 v5 16GB 2TB SATA Rack Server |
|
Product Series |
Dell PowerEdge R230 Server |
Dell PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W) |
Intel Xeon E3-1240L v5 2.1GHz, 8M cache, 4C/8T, turbo (25W) |
|
Operating System |
Windows Server® 2012R2,Foundation Ed,Factory Install,No MED |
Windows Server® 2012R2,Foundation Ed,Factory Install,No MED |
|
Memory |
16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM |
16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive |
2TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive |
Dell Server Configuration
Table 3 shows the Dell R230 Server Configuration. You can contact us to order a R230 server according to this guide.
|
Model |
PowerEdge R230 |
|
Description |
Consolidate data and drive applications faster with the powerful, efficient and versatile PowerEdge R230 1-socket, 1U entry rack server |
|
Processor |
1 processor from the following product families: Intel® Xeon® processor E3-1200 v6 product family Intel Pentium® Intel Core i3® Intel Celeron® |
|
Memory |
Architecture: Up to 2400MT/s DDR4 DIMMs Memory Type: UDIMMs Memory Module Sockets: 4 Maximum RAM: Up to 64GB |
|
PCI Slots |
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0) |
|
Network Controller |
2 X 1GbE |
|
Storage |
2.5” SATA 7.2K 2.5” nearline SAS 7.2K 2.5” 10K SAS HDDs 2.5” 15K SAS HDDs 2.5” SATA HDDs 3.5” Enterprise SATA 7.2K HDDs 3.5” nearline SAS 7.2K HDDs 3.5” 7.2K SATA entry drives |
Get more information
Do you have any question about the Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server
Contact us now via Live Chat or [email protected].
Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server Datasheet
Dell PowerEdge R230 Xeon E3-1225 v5 16GB 1TB SATA Rack Server Specification |
|
|
Product Series |
Dell PowerEdge R230 Server |
|
Model |
pe_r230_1346_b |
|
Customizable |
Intel® Xeon® E3-1225 v5, Windows Server® 2012 Foundation, 16GB Memory, 1TB SATA Hard Drive and a 3 Year Warranty |
|
Base |
PowerEdge R230 Server |
|
Processor |
Intel® Xeon® E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W) |
|
Operating System |
Windows Server® 2012R2,Foundation Ed,Factory Install,No MED |
|
Memory |
16GB (1x16GB) 2400MT/s DDR4 ECC UDIMM |
|
Hard Drive |
1TB 7.2K RPM SATA 6Gbps 3.5in Cabled Hard Drive |
|
Warranty |
3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site |
|
Chipset |
Intel C236 |
|
Embedded Hypervisor (Optional) |
Hypervisor Support Microsoft Windows Server with Hyper-V® |
|
Storage |
2.5” SATA 7.2K |
|
Drive Bays |
2 x 3.5″ cabled HDD |
|
Slots |
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0) |
|
RAID Controllers |
S130, H330, H730, H830 |
|
Network Controller |
Broadcom® BCM5720 |
|
Communications |
2 x 1GbE LOM |
|
Power |
250W cabled PSU |
|
Chassis |
2 x 3.5″ cabled HDD 19.5″ 1U chassis |
|
Management |
Systems management: Dell OpenManage Integrations: Dell OpenManage Connections: Remote management: |
|
Device Access |
5 Total USB: |
|
Rack Support |
ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks. |
|
Dimensions |
Depth without bezel: 495.0 mm (19.5 in) Width without rack latches: 434.0 mm (17.08 in) |
