PAN-PA-3060 Firewall Product Price & Datasheet

PAN-PA-3060 Specification
Model	PA-3060
Performance and Capacities Description
Firewall throughput (App-ID enabled)	4 Gbps
Threat prevention throughput	2 Gbps
IPSec VPN throughput	500 Mbps
New sessions per second	50,000
Max sessions	500,000
IPSec VPN tunnels/tunnel interfaces	2,000
GlobalProtect (SSL VPN) concurrent users	2,000
SSL inbound certificates	25
Virtual routers	10
Virtual systems (base/max)	1/6
Security zones	40
Max. number of policies	5,000
Hardware Description
I/O	(8) 10/100/1000, (8) Gigabit SFP, (2) 10 Gigabit SFP+
Management I/O	(1) 10/100/1000 out-of-band management port, (2) 10/100/1000 high availability, (1) RJ-45 console port
Storage Capacity	120GB SSD
Power supply (Avg/Max power consumption)	Redundant 400W AC (160/200)
Max BTU/hr	683
Input Voltage (Input Frequency)	100-240VAC (50-60Hz)
Max Current Consumption	2A@100VAC
Max Inrush Current	0.4 A @ 230 VAC, 0.96 A @ 120 VAC
Rack Mountable	1.5U, 19″ standard rack
Dimensions	2.6″H x 14″D x 17.5″W
Safety	UL, CUL, CB
EMI	FCC Class A, CE Class A, VCCI Class A, TUV
Environment
Operating temperature	32° to 122° F, 0° to 50° C
Non-operating temperature	-4° to 158° F, -20° to 70° C

The Palo Alto Networks PA-3000 Series is comprised of three high performance platforms, the PA-3060, the PA-3050 and the PA-3020, which are targeted at high-speed Internet gateway deployments. The PA-3000 Series manages network traffic flows using dedicated processing and memory for networking, security, threat prevention and management.

The controlling element of the PA-3000 Series is PAN-OS, a security-specific operating system that natively classifies all traffic, inclusive of applications, threats and content, then ties that traffic to the user, regardless of location or device type. The application, content, and userin other words, the business elements that run your businessare then used as the basis of your security policies, resulting in an improved security posture and a reduction in incident response time.

Quick Specs

Table 1 shows the Quick Specs.

Part number	PAN-PA-3060

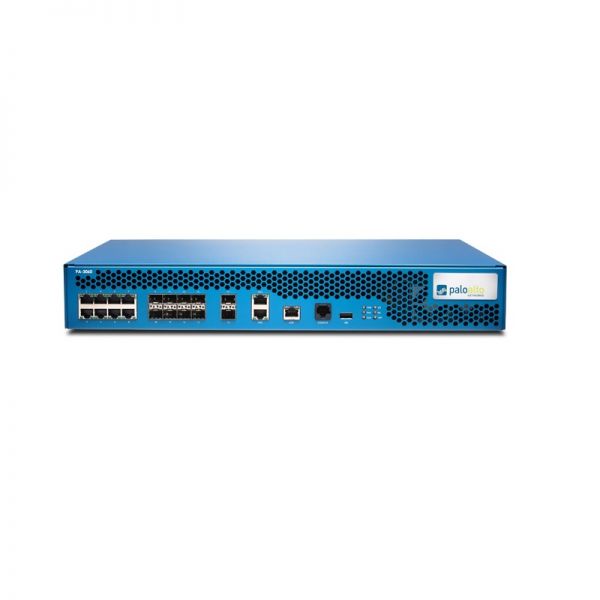

Description	Palo Alto Networks PA-3060, Security appliance, 10 GigE, 1.5U, rack-mountable
Firewall throughput (App-ID enabled)	4 Gbps
Threat prevention throughput	2 Gbps
IPSec VPN throughput	500 Mbps
New sessions per second	50,000
Max sessions	500,000
IPSec VPN tunnels/tunnel interfaces	2,000
GlobalProtect (SSL VPN) concurrent users	2,000

Product Details

Security Features

1.Application Visibility

Port numbers, protocols, and IP addresses are useful for network devices, but they tell you nothing about what is on your network. Detailed information about the applications, users, and content traversing your network empowers you to quickly determine any risks they pose and quickly respond. Leveraging the rich context provided by Palo Alto Networks firewalls, our visualization, analysis, and reporting tools let you quickly learn more about activity on your network and analyze incidents from a current or comparative perspective.

2.User Visibility

An integral component for secure application enablement policies.

Traditionally, security policies were applied based on IP addresses, but the increasingly dynamic nature of users and applications mean that IP addresses alone have become ineffective as a policy control element for safe application enablement.

3.Antivirus

Network-based Malware Protection.

The broadening use of social media, messaging and other non-work-related applications introduce a variety of vectors for viruses, spyware, worms and other types of malwares. Palo Alto Networks next-generation firewalls allow you to block unwanted applications with App-ID, and then scan allowed applications for malware.

4.Data Filtering & File Blocking

The application function level control, file blocking by type, and data filtering features of our next-generation firewalls allow you to implement a range of policies that help balance permitting the use of personal or non-work-related applications, with the business and security risks of unauthorized file and data transfer.

5.Modern Malware Protection

WildFire: Protection from targeted and unknown threats.

Modern attackers are increasingly using targeted and new unknown variants of malware to sneak past traditional security solutions. To address this, Palo Alto Networks developed WildFire, which identifies new malware in minutes. By executing suspect files in a virtual environment and observing their behavior, Palo Alto Networks identifies malware quickly and accurately, even if the malware sample has never been seen before. Once a file is deemed malicious, WildFire automatically generates protections that are delivered to all WildFire subscribers within an hour of detection. A WildFire license provides your IT team with a wealth of forensics to see exactly who was targeted, the application used in the delivery, and any URLs that were part of the attack.

Compare to Similar Items

Table 2 shows the comparison.

Model	PAN-PA-3020	PAN-PA-3050	PAN-PA-3060
Firewall throughput (App-ID enabled)	2 Gbps	4 Gbps	4 Gbps
Threat prevention throughput	1 Gbps	2 Gbps	2 Gbps
IPSec VPN throughput	500 Mbps	500 Mbps	500 Mbps
New sessions per second	50,000	50,000	50,000
Max sessions	250,000	500,000	500,000
IPSec VPN tunnels/tunnel interfaces	1,000	2,000	2,000
GlobalProtect (SSL VPN) concurrent users	1,000	2,000	2,000
SSL inbound certificates	25	25	25
Virtual routers	10	10	10
Virtual systems (base/max)	1/6	1/6	1/6
Security zones	40	40	40
Max. number of policies	2,500	5,000	5,000
