Product Model: P25215-AA1 HPE DL388 Gen10 8SFF
Retail Price: US$1,603.00
Email Us To Get Special Price Today: Julie@corenet.vip

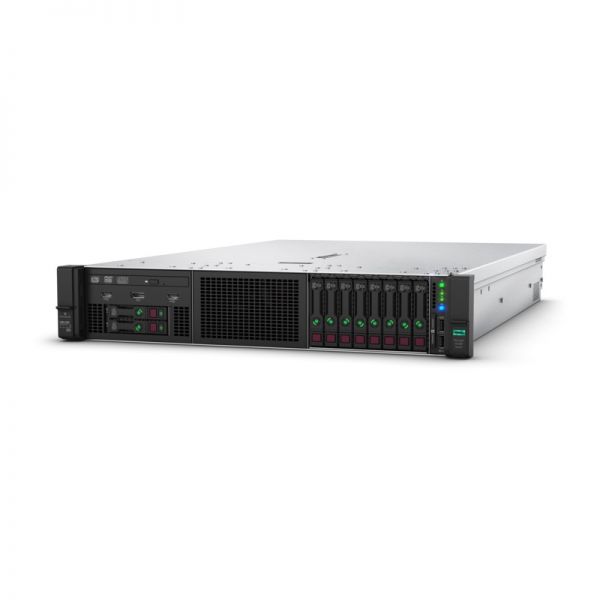

P25215-AA1 is the HPE Proliant DL388 G10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G P408i-a NC 8SFF 500W PS server.
Quick Spec
Table 1 shows the quick spec of P25215-AA1 Server.
|
Model |
P25215-AA1 |
|
Description |
HPE Proliant DL388 G10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G P408i-a NC 8SFF 500W PS server |
|
Processors |
Intel Xeon 3206R (8-Core, 1.9 GHz, 85W) |
|
Memory |
16G |
|
Hard Drive |
8 SFF |
|
Dimensions |
SFF Drives: 8.73 x 44.54 x 67.94 cm / 3.44 x 17.54 x 26.75 in |
|
Power Supplies |
500W |
|
Form Factor |
2U rack |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
① |
Quick removal access panel |
|
② |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
③ |
Optional Optical drive. Requires Universal Media bay |
|
④ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
⑥ |
8 SFF Drive Cage Bay |
|
⑦ |
Serial label pull tag |
|
⑧ |
Power On/Standby button and system power LED button |
|
⑨ |
Health LED |
|
⑩ |
NIC status |
|
UID button |
|
|
iLO Front Service Port |
|
|
USB 3.0 |
|
|
Box 3 |
|
|
Box 2 |
|
|
Box 1 |
|
|
Optional 2 SFF HDD, requires optional Universal Media bay |
|
|
Optional USB 2.0 (via Universal Media Bay) |
|
|
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
|
① |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
② |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
③ |
Optional serial port |
|
④ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power connection |
|
⑥ |
Power supply Power LED |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
⑩ |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
VGA connector |
|
|
Embedded 4 x 1GbE Network Adapter |
|
|
Dedicated iLO management port |
|
|
USB connectors 3.0 (2) |
|
|
Unit ID LED |
|
|
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Parts Options
Table 2 shows the options of P25215-AA1.
|
Part Number |
Description |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) Sc 3yr Wty Digitally Signed Firmware HDD |
|
872481-B21 |
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870759-B21 |
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Ds Digitally Signed Firmware HDD |
|
881457-B21 |
HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870757-B21 |
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04564-B21 |
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04566-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison.
|
Model |
P25215-AA1 |
P25216-AA1 |
|
Description |
HPE Proliant DL388 G10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G P408i-a NC 8SFF 500W PS server |
HPE Proliant DL388 G10 4210R (10-Core, 2.4 GHz, 100W) 1P 16G P408i-a NC 8SFF 800W PS server |
|
Processors |
Intel Xeon 3206R (8-Core, 1.9 GHz, 85W) |
Intel Xeon 4210R (10-Core, 2.4 GHz, 100W) |
|
Memory |
16G |
16G |
|
Hard Drive |
8 SFF |
8 SFF |
|
Power Supply |
500W |
800W |
Table 4 shows the HPE DL388 vs Dell R740.
|
Series |
HPE ProLiant DL388 Gen10 |
HPE ProLiant DL388 Gen10 |
HPE ProLiant DL388 Gen10 |
Dell EMC PowerEdge R740 |
|
Recommended Server |
P25215-AA1 HPE DL388 Gen10 8SFF |
P25216-AA1 HPE DL388 Gen10 8SFF |
P25217-AA1 HPE DL388 Gen10 8SFF |
Dell 2U R740 4210R/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 |
|
Processor |
Intel Xeon 3206R (8-Core, 1.9 GHz, 85W) |
Intel Xeon Silver 4210R Processor (2.4GHz/10-core/100W) |
Intel Xeon Silver 4214R Processor (2.4GHz/12-core/100W) |
Up to two 2nd Generation Intel Xeon Scalable processors, up to 28 cores per processor |
|
Memory |
16G |
16G |
16G |
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel Optane DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only |
|
Hard Drive |
8 SFF |
8 SFF |
8 SFF |
Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW |
|
Power Supplies |
500W |
800W |
800W |
Titanium 750W, Platinum 495W 750W 750W 240VDC, 1100W, 1100W 380VDC 1600W, 2000W and 2400W, Gold 1100W -48VDC |
Get More Information
Please feel free to check the P25215-AA1 datasheet below.
Do you have any question about the Hpe Proliant DL388 Gen10 servers P25215-AA1 or P25215-AA1 price
Contact us now via Live Chat or Julie@corenet.vip.
P25215-AA1 HPE DL388 Gen10 8SFF Datasheet
P25215-AA1 Specification |
|
|
Description |
HPE Proliant DL388 G10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G P408i-a NC 8SFF 500W PS server |
|
Processors |
Intel Xeon 3206R (8-Core, 1.9 GHz, 85W) |
|
Memory |
16G |
|
Hard Drive |
8 SFF |
|
Dimensions |
SFF Drives: 8.73 x 44.54 x 67.94 cm / 3.44 x 17.54 x 26.75 in |
|
Power Supplies |
500W |
|
Form Factor |
2U rack |
