Product Model: HPE DL580 Gen10 8SFF P22710-AA1
Retail Price: US$9,266.00
Email Us To Get Special Price Today: [email protected]

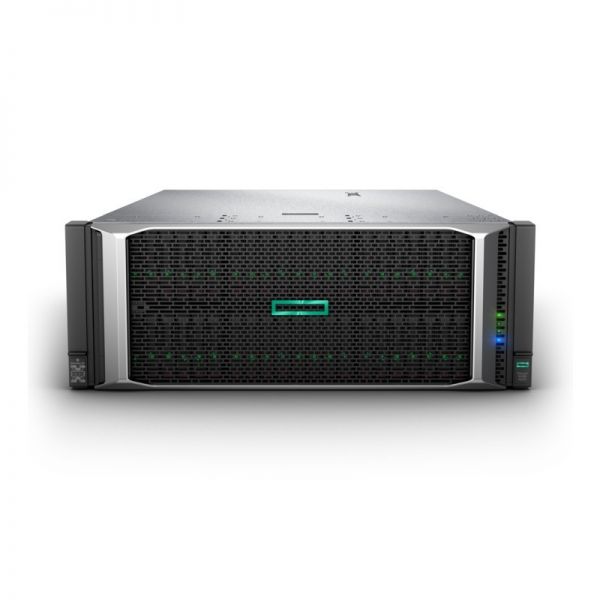

The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5. The P22710-AA1 stands for HPE Proliant DL580 G10 5218 2P 64G P408i-p 8SFF 2*1600W RPS server.
Quick Spec
Table 1 shows the quick spec.
|
Product Number |
P22710-AA1 |
|
Product Description |
HPE Proliant DL580 G10 5218 (2.3GHz, 16-core, 22M) 2P 64G P408i-p 8SFF 2*1600W RPS server |
|
Processor |
Intel Xeon 5218 (2.3GHz, 16-core, 22M) |
|
Memroy |
64G |
|
Drive Cage |
8 SFF in Box 1, no drives |
|
Fans |
12 hot plug fans, (n+1) redundant |
|
Power Supply |
2 x 1600W RPS |
Product Details
Figure 1 shows the front view of DL580 Gen10 servers.
Note:
|
① |
Quick removal access panel |
|
② |
Box 1 (8 SFF, 6 SFF+2 NVMe or 8 NVMe (supports only 4 NVMe drives) SSD optional) |
|
③ |
Box 2 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
|
④ |
Box 3 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
|
⑤ |
Front USB 3.0 port |
|
⑥ |
Power On/Standby button and system power LED button |
|
⑦ |
Health LED |
|
⑧ |
NIC status |
|
⑨ |
UID button |
|
⑩ |
iLO Front Service Port |
|
Front USB 3.0 port |
|
|
Serial label pull tag |
|
|
Box 6 (8 SFF) |
|
|
Box 5 (8 SFF) |
|
|
Box 4 (8 SFF or Universal Media bay) |
|
|
Optional USB 2.0 (via Universal Media Bay) |
|
|
Optional 2 SFF HDD, requires optional Universal Media bay |
|
|
Optional front display port (via Universal Media Bay) |
|
|
Optional USB 2.0 (via Universal Media Bay) |
Figure 2 shows the back view of DL580 Gen10 servers.
Note:
|
① |
PCIe Slots (Slots 1-7 top to bottom), requires primary riser |
|
② |
PCIe Slots (Slots 8-14 top to bottom), requires secondary riser (includes tertiary riser) |
|
③ |
PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser (included with secondary riser) |
|
④ |
Power supply Power LED (max. 4) |
|
⑤ |
Power supply Power connection (max. 4) |
|
⑥ |
HPE Flexible Slot Power Supply, 800W PS shown (max. 4) |
|
⑦ |
Serial connector |
|
⑧ |
Dedicated iLO connector |
|
⑨ |
VGA (video) connector |
|
⑩ |
USB connectors 2.0 (2) |
|
USB connectors 3.0 (2) |
|
|
Unit ID LED |
|
|
FlexibleLOM ports (Port 1 on right side) |
The Options
Table 2 shows the recommended elements.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Number |
P22710-AA1 |
P21273-AA1 |
|
Product Description |
HPE Proliant DL580 G10 5218 (2.3GHz, 16-core, 22M) 2P 64G P408i-p 8SFF 2*1600W RPS server |
HPE Proliant DL580 G10 5220 (2.2GHz/18-core/125W) 2P 64G P408i-p 8SFF 4*800W RPS server |
|
Processor |
Intel Xeon 5218 (2.3GHz, 16-core, 22M) |
Intel Xeon 5220 (2.2GHz 18-core, 24.75MB, 125W) |
|
Drive Cage |
8 SFF in Box 1, no drives |
8 SFF in Box 1, no drives |
Get more information
Do you have any question about the HPE P22710-AA1 Sever
Contact us now via Live Chat or [email protected].
HPE DL580 Gen10 8SFF P22710-AA1 Datasheet
HPE P22710-AA1 Specification |
|
|
Product Number |
P22710-AA1 |
|
Product Description |
HPE Proliant DL580 G10 5218 2P 64G P408i-p 8SFF 2*1600W RPS server |
|
Processor |
Intel Xeon 5218 (16 cores, 22M Cache, 2.30 GHz) |
|
Processor Number |
Up to 4 |
|
Memory |
64G |
|
DIMM Slots |
24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors |
|
Network Controller |
Flexible LOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) |
|
Storage Controller |
HPE Smart Array P408i-p |
|
Drive Cage |
8 SFF in Box 1, no drives |
|
Fans |
12 hot plug fans, (n+1) redundant |
|
Power Supply |
2*1600W RPS |
